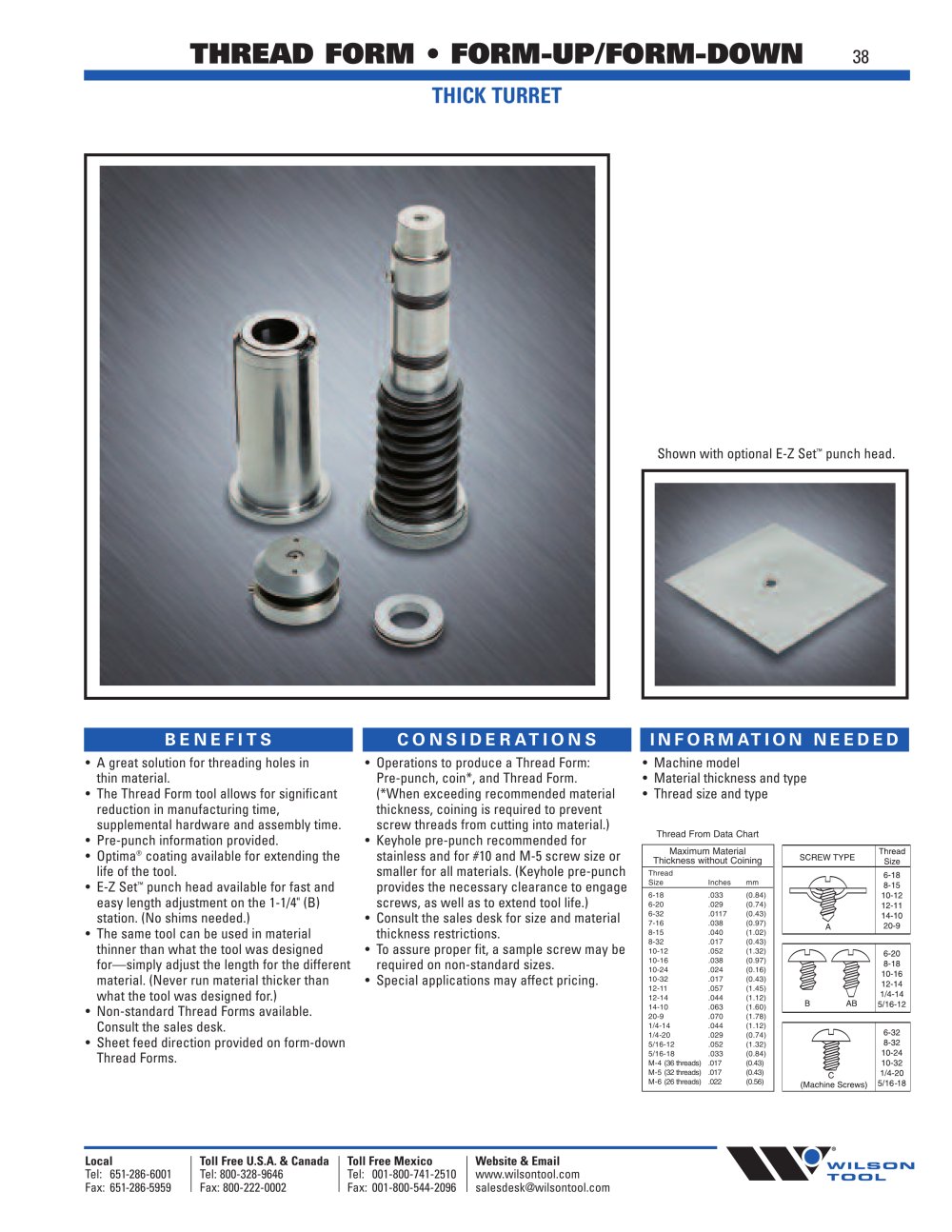

Thick Turret Special Tooling Catalog - WILSON TOOL - #39

Shown with optional E-Z Set™ punch head.

• A great solution for threading holes in thin material.

• The Thread Form tool allows for significant reduction in manufacturing time, supplemental hardware and assembly time.

• Pre-punch information provided.

• Optima^® coating available for extending the life of the tool.

• E-Z Set™ punch head available for fast and easy length adjustment on the 1-1/4" (B) station. (No shims needed.)

• The same tool can be used in material thinner than what the tool was designed

for—simply adjust the length for the different material. (Never run material thicker than what the tool was designed for.)

• Non-standard Thread Forms available. Consult the sales desk.

• Sheet feed direction provided on form-down Thread Forms.

Operations to produce a Thread Form: Pre-punch, coin*, and Thread Form. (*When exceeding recommended material thickness, coining is required to prevent screw threads from cutting into material.) Keyhole pre-punch recommended for stainless and for #10 and M-5 screw size or smaller for all materials. (Keyhole pre-punch provides the necessary clearance to engage screws, as well as to extend tool life.) Consult the sales desk for size and material thickness restrictions.

To assure proper fit, a sample screw may be required on non-standard sizes. Special applications may affect pricing.

Machine model

Material thickness and type

Thread size and type

Thread From Data Chart

^k w W11 ' TO

IN
