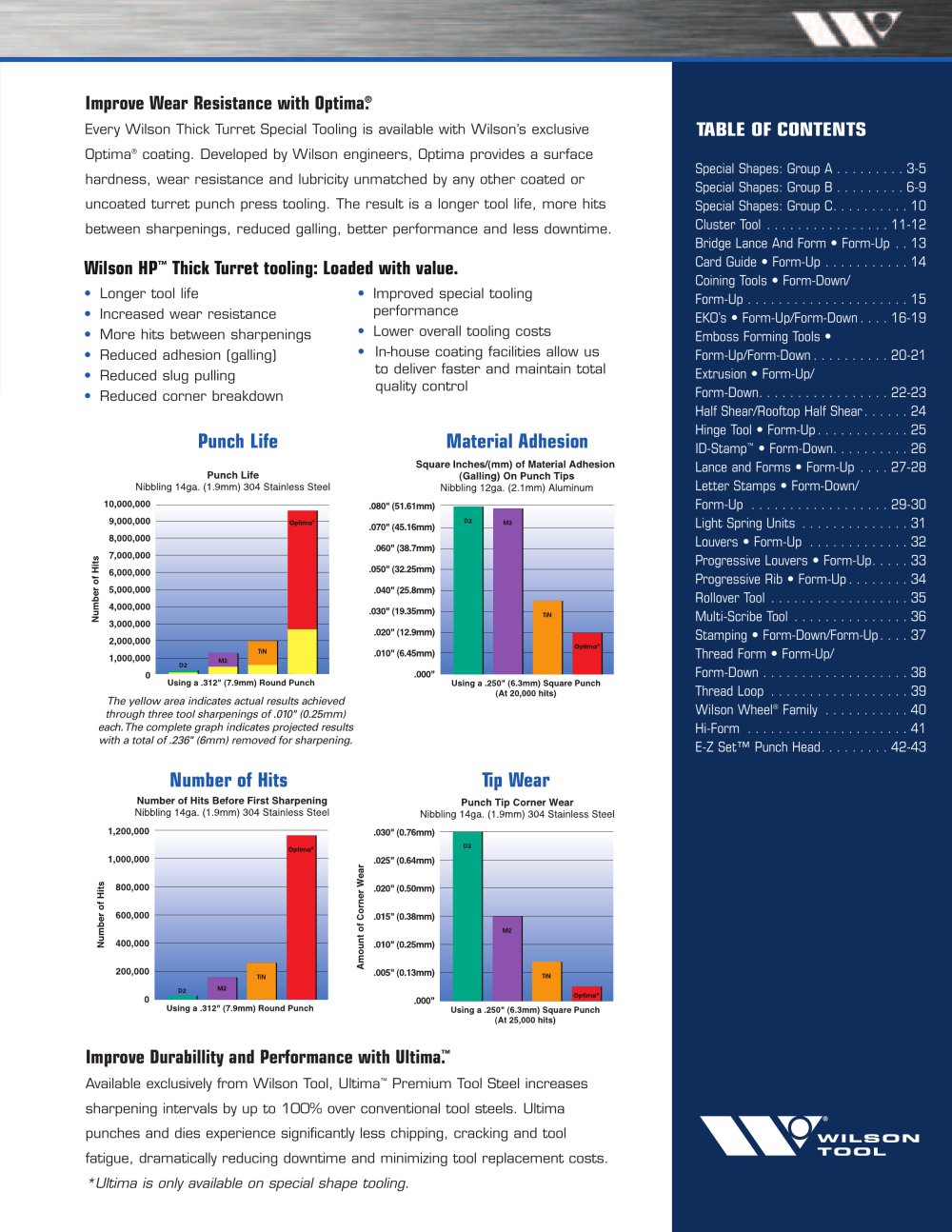

Improve Wear Resistance with Optima

®

.

Every Wilson Thick Turret Special Tooling is available with Wilson’s exclusiveOptima

TABLE OF CONTENTS

® coating. Developed by Wilson engineers, Optima provides a surfacehardness, wear resistance and lubricity unmatched by any other coated or uncoated turret punch press tooling. The result is a longer tool life, more hitsbetween sharpenings, reduced galling, better performance and less downtime. Special Shapes: Group A. . . . . . . . . 3-5Special Shapes: Group B. . . . . . . . . 6-9 Special Shapes: Group C. . . . . . . . . . 10 Cluster Tool. . . . . . . . . . . . . . . . 11-12 Bridge Lance And Form • Form-Up. . 13 Card Guide • Form-Up. . . . . . . . . . . 14 Coining Tools • Form-Down/ Form-Up. . . . . . . . . . . . . . . . . . . . . 15 EKO’s • Form-Up/Form-Down. . . . 16-19 Emboss Forming Tools • Form-Up/Form-Down. . . . . . . . . . 20-21 Extrusion • Form-Up/ Form-Down. . . . . . . . . . . . . . . . . 22-23 Half Shear/Rooftop Half Shear. . . . . . 24 Hinge Tool • Form-Up. . . . . . . . . . . . 25 ID-Stamp

Wilson HP

™

Thick Turret tooling: Loaded with value.

•Longer tool life•Increased wear resistance•More hits between sharpenings•Reduced adhesion (galling)•Reduced slug pulling•Reduced corner breakdown•Improved special toolingperformance•Lower overall tooling costs• In-house coating facilities allow usto deliver faster and maintain total quality control

Thick Turret Special Tooling Catalog - 6091 Punch Life Number of HitsTip Wear Material Adhesion

™ • Form-Down. . . . . . . . . . 26Lance and Forms • Form-Up. . . . 27-28 Letter Stamps • Form-Down/ Form-Up. . . . . . . . . . . . . . . . . . 29-30 Light Spring Units. . . . . . . . . . . . . . 31 Louvers • Form-Up. . . . . . . . . . . . . 32 Progressive Louvers • Form-Up. . . . . 33 Progressive Rib • Form-Up. . . . . . . . 34 Rollover Tool. . . . . . . . . . . . . . . . . . 35 Multi-Scribe Tool. . . . . . . . . . . . . . . 36 Stamping • Form-Down/Form-Up. . . . 37 Thread Form • Form-Up/ Form-Down. . . . . . . . . . . . . . . . . . . 38 Thread Loop. . . . . . . . . . . . . . . . . . 39 Wilson Wheel
The yellow area indicates actual results achievedthrough three tool sharpenings of .010" (0.25mm)each. The complete graph indicates projected resultswith a total of .236" (6mm) removed for sharpening. ® Family. . . . . . . . . . . 40Hi-Form. . . . . . . . . . . . . . . . . . . . . 41 E-Z Set™ Punch Head. . . . . . . . . 42-43 *Ultima is only available on special shape tooling.

Improve Durabillity and Performance with Ultima.

™ Available exclusively from Wilson Tool, Ultima
™ Premium Tool Steel increasessharpening intervals by up to 100% over conventional tool steels. Ultima punches and dies experience significantly less chipping, cracking and tool fatigue, dramatically reducing downtime and minimizing tool replacement costs.
