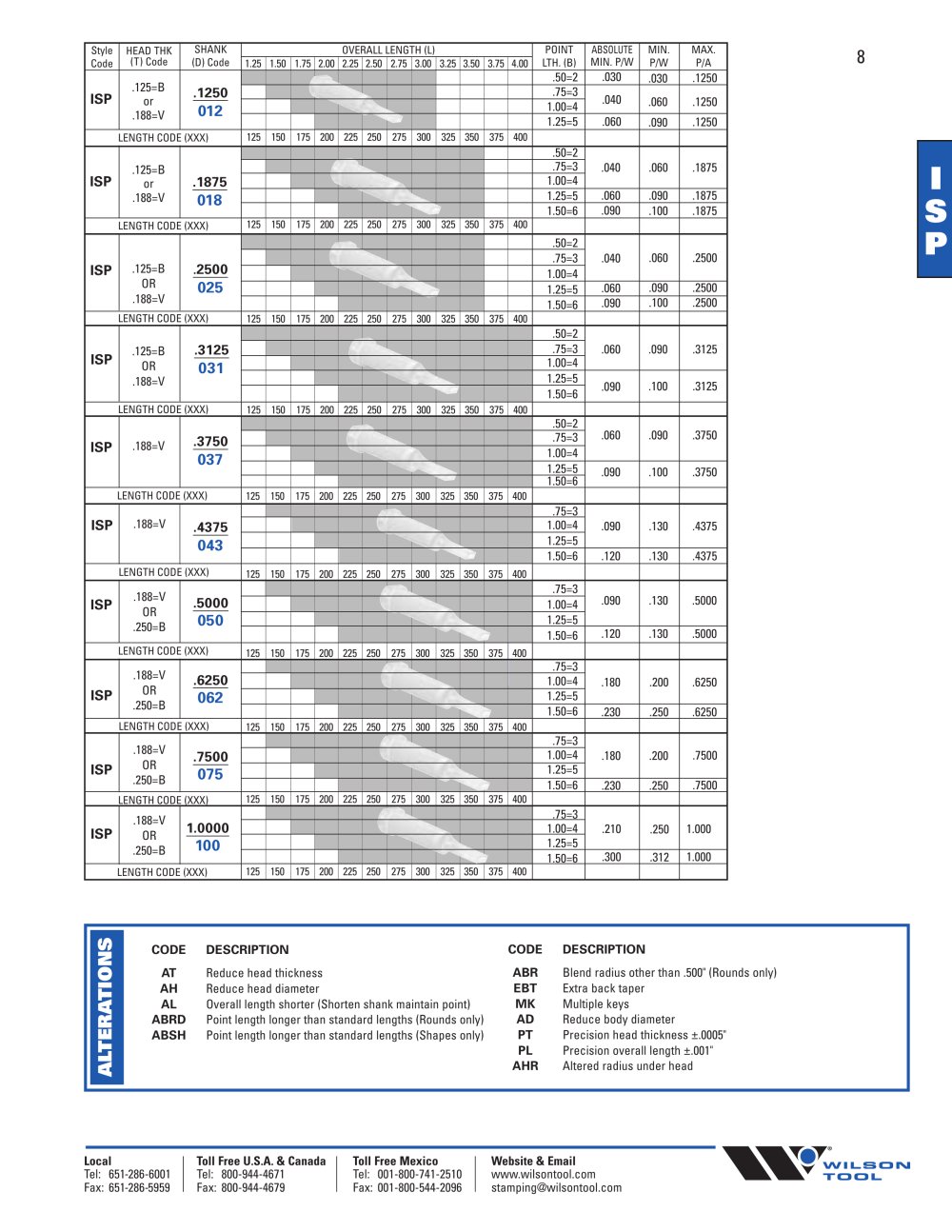

Style Code	HEAD THK (T)Code	SHANK (D) Code	OVERALL LENGTH (L)												POINT LTH. (B)	ABSOLUTE MIN. P/W	MIN. P/W	MAX. P/A
Style Code	HEAD THK (T)Code	SHANK (D) Code	1.25	1.50	1.75	2.00	2.25	2.50	2.75	3.00	3.25	3.50	3.75	4.00	POINT LTH. (B)	ABSOLUTE MIN. P/W	MIN. P/W	MAX. P/A
ISP	.125=B or .188=V	.1250													.50=2	.030	.030	.1250
		.1250													.75=3	.040	.060	.1250
		012													1.00=4	.040	.060	.1250
		012													1.25=5	.060	.090	.1250
LENGTH CODE (XXX)			125	150	175	200	225	250	275	300	325	350	375	400
ISP	.125=B or .188=V	.1875													.50=2	.040	.060	.1875
															.75=3
															1.00=4
		018													1.25=5	.060	.090	.1875
		018													1.50=6	.090	.100	.1875
LENGTH CODE (XXX)			125	150	175	200	225	250	275	300	325	350	375	400
ISP	.125=B OR .188=V	.2500 025													.50=2	.040	.060	.2500
															.75=3
															1.00=4
															1.25=5	.060	.090	.2500
															1.50=6	.090	.100	.2500
LENGTH CODE (XXX)			125	150	175	200	225	250	275	300	325	350	375	400
ISP	.125=B OR .188=V	.3125													.50=2	.060	.090	.3125
		.3125													.75=3
		031													1.00=4
															1.25=5	.090	.100	.3125
															1.50=6	.090	.100	.3125
LENGTH CODE (XXX)			125	150	175	200	225	250	275	300	325	350	375	400
ISP	.188=V	.3750 037													.50=2	.060	.090	.3750
															.75=3
															1.00=4
															1.25=5	.090	.100	.3750
															1.50=6	.090	.100	.3750
LENGTH CODE (XXX)			125	150	175	200	225	250	275	300	325	350	375	400
ISP	.188=V	.4375													.75=3	.090	.130	.4375
		.4375													1.00=4
		043													1.25=5
		043													1.50=6	.120	.130	.4375
LENGTH CODE (XXX)			125	150	175	200	225	250	Zi	300	325	350	375	400
ISP	.188=V OR .250=B	.5000							zz						.75=3	.090	.130	.5000
		.5000													1.00=4
		050													1.25=5
		050													1.50=6	.120	.130	.5000
LENGTH CODE (XXX)			125	150	175	200	225	250	275	300	325	350	375	400
ISP	.188=V OR .250=B	.6250								ZZ					.75=3	.180	.200	.6250
		.6250								—					1.00=4
		062													1.25=5
		062								_					1.50=6	.230	.250	.6250
LENGTH CODE (XXX)			125	150	175	200	225	250	275	_ 300	- 325	_ - 350	375	400
ISP	.188=V OR .250=B	.7500													.75=3	.180	.200	.7500
		.7500													1.00=4
		075										¹	\ZZ		1.25=5
		075													1.50=6	.230	.250	.7500
	LENGTH CODE (XXX)		125	150	175	200	225	250	275	"3Ö0~	"325"	"35F	"375"	400
ISP	.188=V OR .250=B	1.0000													.75=3	.210	.250	1.000
		1.0000													1.00=4
		100													1.25=5
		100													1.50=6	.300	.312	1.000
LENGTH CODE (XXX)			125	150	175	200	225	250	275	300	325	_ 350	"375"	400


CODE	DESCRIPTION	CODE	DESCRIPTION
AT	Reduce head thickness	ABR	Blend radius other than .500" (Rounds only)
AH	Reduce head diameter	EBT	Extra back taper
AL	Overall length shorter (Shorten shank maintain point)	MK	Multiple keys
ABRD	Point length longer than standard lengths (Rounds only)	AD	Reduce body diameter
ABSH	Point length longer than standard lengths (Shapes only)	PT	Precision head thickness ±.0005"
		PL	Precision overall length ±.001"
		AHR	Altered radius under head

(ft Z O

J-3
