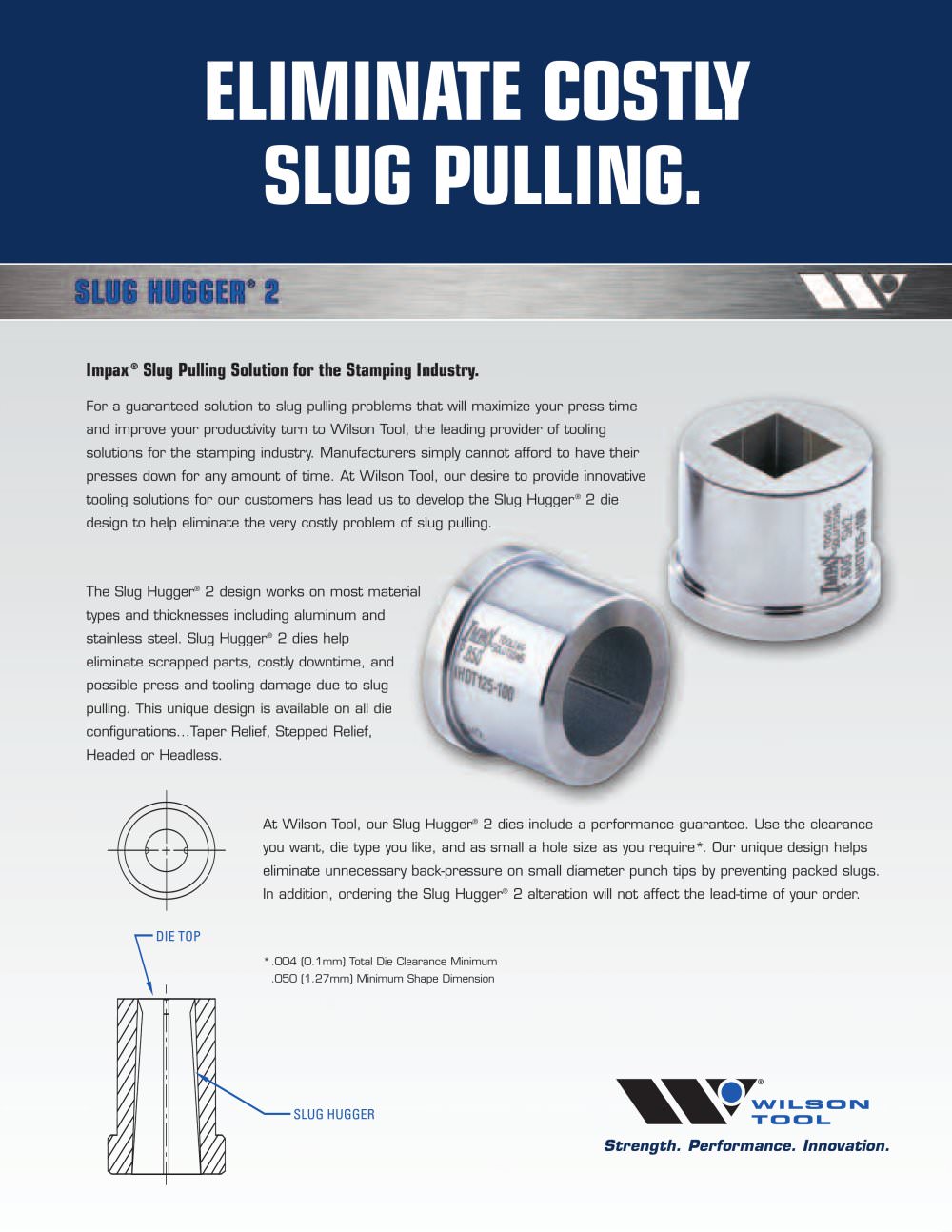

| ELIMINATE COSTLY SLUG PULLING. | |||||||||||||||||||
| SLUG HUGGER* 2 | |||||||||||||||||||
| Impax® Slug Pulling Solution for the Stamping Industry. For a guaranteed solution to slug pulling problems that will maximize your press time and improve your productivity turn to Wilson Tool, the leading provider of tooling solutions for the stamping industry. Manufacturers simply cannot afford to have their presses down for any amount of time. At Wilson Tool, our desire to provide innovative tooling solutions for our customers has lead us to develop the Slug Hugger® 2 die design to help eliminate the very costly problem of slug pulling. | |||||||||||||||||||
| The Slug Hugger® 2 design works on most material types and thicknesses including aluminum and stainless steel. Slug Hugger® 2 dies help eliminate scrapped parts, costly downtime, and possible press and tooling damage due to slug pulling. This unique design is available on all die configurations...Taper Relief, Stepped Relief, Headed or Headless. | |||||||||||||||||||
| At Wilson Tool, our Slug Hugger® 2 dies include a performance guarantee. Use the clearance you want, die type you like, and as small a hole size as you require*. Our unique design helps eliminate unnecessary back-pressure on small diameter punch tips by preventing packed slugs. In addition, ordering the Slug Hugger® 2 alteration will not affect the lead-time of your order. | |||||||||||||||||||
| * .004 (0.1mm) Total Die Clearance Minimum .050 (1.27mm) Minimum Shape Dimension | |||||||||||||||||||
| k. w W11 k TO | |||||||||||||||||||
| I INI | |||||||||||||||||||
| SLUG HUGGER | |||||||||||||||||||
| Strength. Performance. Innovation. | |||||||||||||||||||
