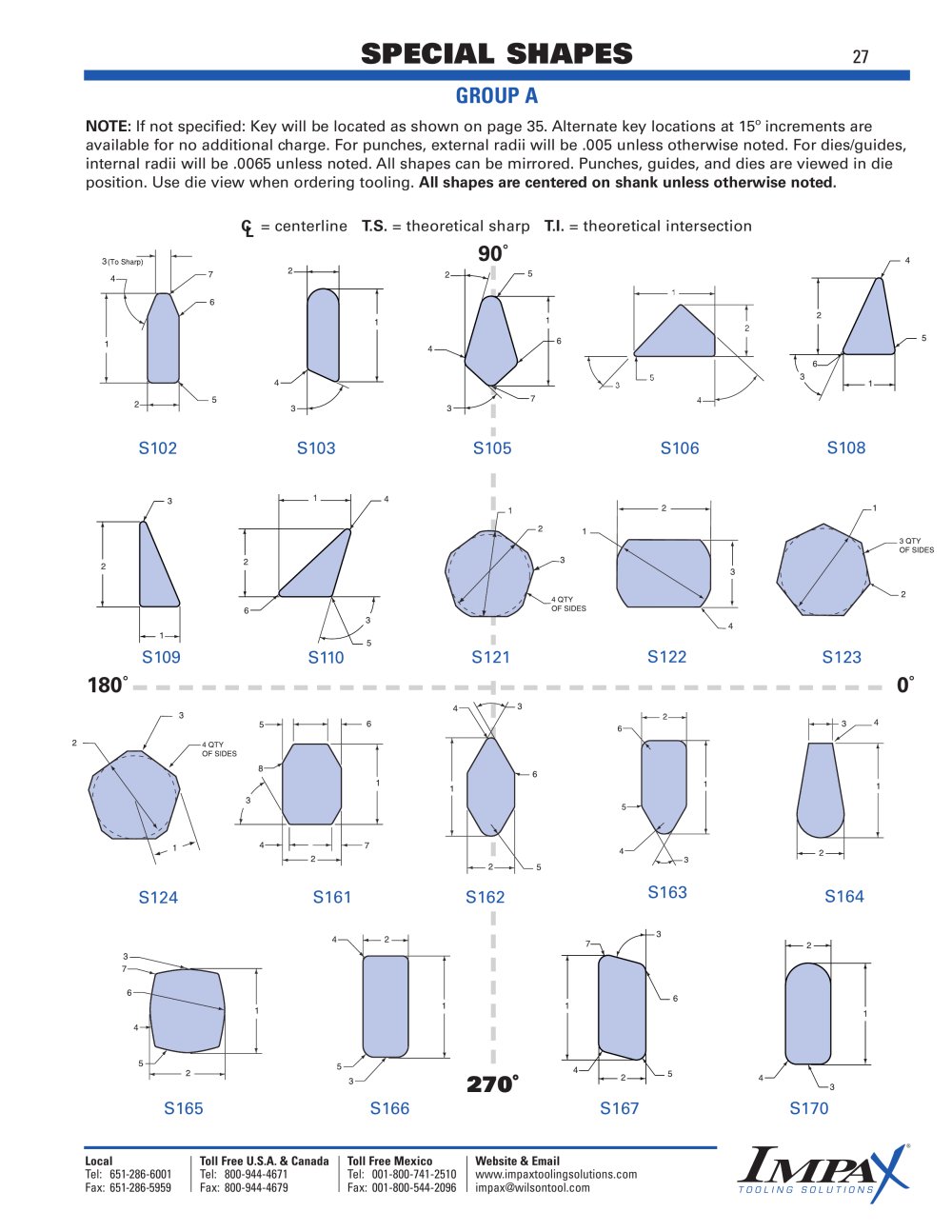

| SPECIAL SHAPES | ||||||||||||
| 27 | ||||||||||||
| UKUUPA NOTE: If not specified: Key will be located as shown on page 35. Alternate key locations at 15° increments are available for no additional charge. For punches, external radii will be .005 unless otherwise noted. For dies/guides, internal radii will be .0065 unless noted. All shapes can be mirrored. Punches, guides, and dies are viewed in die position. Use die view when ordering tooling. All shapes are centered on shank unless otherwise noted. | ||||||||||||
| CL = centerline T.S. = theoretical sharp T.I. = theoretical intersection | ||||||||||||
| 3 S105 | ||||||||||||
