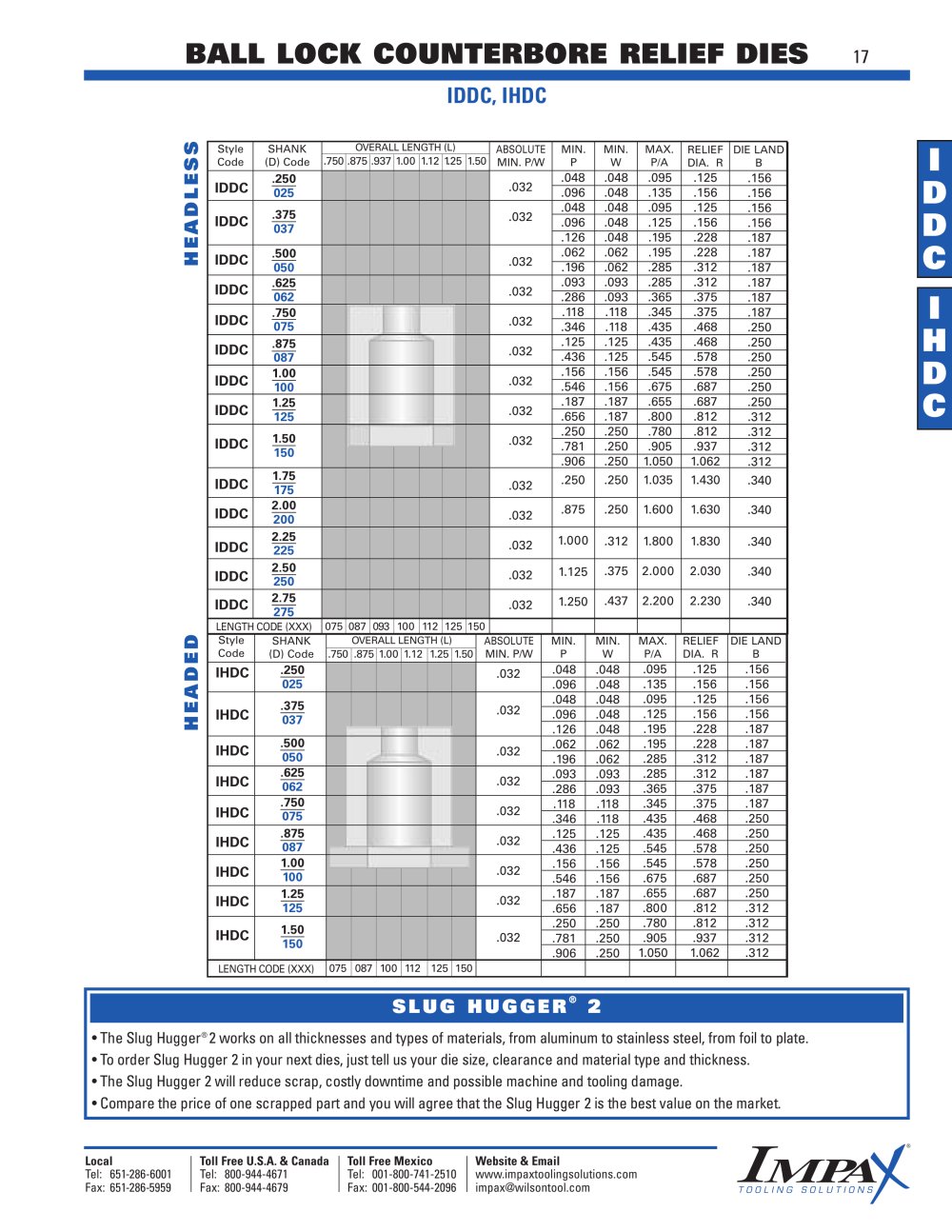

BALL LOCK COUNTERBORE RELIEF DIES 17

IDDC, IHDC


Style Code	SHANK (D) Code	OVERALL LENGTH (L)									ABSOLUTE MIN. P/W		MIN. P		MIN. W	MAX. P/A	RELIEF DIA. R	DIE LAND B
		750]	875	937	1.00	1.12	1.25 1.50
IDDC	.250 025										.032		.048		.048	.095	.125	.156
													.096		.048	.135	.156	.156
IDDC	.375 037										.032		.048		.048	.095	.125	.156
													.096		.048	.125	.156	.156
													.126		.048	.195	.228	.187
IDDC	.500 050										.032		.062		.062	.195	.228	.187
													.196		.062	.285	.312	.187
IDDC	.625 062										.032		.093		.093	.285	.312	.187
													.286		.093	.365	.375	.187
IDDC	.750 075										.032		.118		.118	.345	.375	.187
													.346		.118	.435	.468	.250
IDDC	.875 087										.032		.125		.125	.435	.468	.250
													.436		.125	.545	.578	.250
IDDC	1.00 100										.032		.156		.156	.545	.578	.250
													.546		.156	.675	.687	.250
IDDC	1.25 125										.032		.187		.187	.655	.687	.250
													.656		.187	.800	.812	.312
IDDC	1.50 150										.032		.250		.250	.780	.812	.312
													.781		.250	.905	.937	.312
													.906		.250	1.050	1.062	.312
IDDC	1.75 175										.032		.250		.250	1.035	1.430	.340
IDDC	2.00 200										.032		.875		.250	1.600	1.630	.340
IDDC	2.25 225										.032		1.000		.312	1.800	1.830	.340
IDDC	2.50 250										.032		1.125		.375	2.000	2.030	.340
IDDC	2.75 275										.032		1.250		.437	2.200	2.230	.340
LENGTH CODE (XXX)		075	087	093 1	100	112	125		150
Style Code	SHANK (D) Code	OVERALL LENGTH (L)								ABSOLUTE MIN. P/W		MIN. P		MIN. W		MAX. P/A	RELIEF DIA. R	DIE LAND B
		.750	.875	1.0C	1.12	1.25		1.50
IHDC	.250 025									.032		.048		.048		.095	.125	.156
												.096		.048		.135	.156	.156
IHDC	.375 037									.032		.048		.048		.095	.125	.156
												.096		.048		.125	.156	.156
												.126		.048		.195	.228	.187
IHDC	.500 050									.032		.062		.062		.195	.228	.187
												.196		.062		.285	.312	.187
IHDC	.625 062									.032		.093		.093		.285	.312	.187
												.286		.093		.365	.375	.187
IHDC	.750 075									.032		.118		.118		.345	.375	.187
												.346		.118		.435	.468	.250
IHDC	.875 087			J_	_:					.032		.125		.125		.435	.468	.250
												.436		.125		.545	.578	.250
IHDC	1.00 100		_							.032		.156		.156		.545	.578	.250
												.546		.156		.675	.687	.250
IHDC	1.25 125									.032		.187		.187		.655	.687	.250
												.656		.187		.800	.812	.312
IHDC	1.50 150									.032		.250		.250		.780	.812	.312
												.781		.250		.905	.937	.312
												.906		.250		1.050	1.062	.312
LENGTH CODE (XXX)		075	¡087	100	112	125		150

SLUG HUGGER®2

• The Slug Hugger® 2 works on all thicknesses and types of materials, from aluminum to stainless steel, from foil to plate.

• To order Slug Hugger 2 in your next dies, just tell us your die size, clearance and material type and thickness.

• The Slug Hugger 2 will reduce scrap, costly downtime and possible machine and tooling damage.

• Compare the price of one scrapped part and you will agree that the Slug Hugger 2 is the best value on the market.
