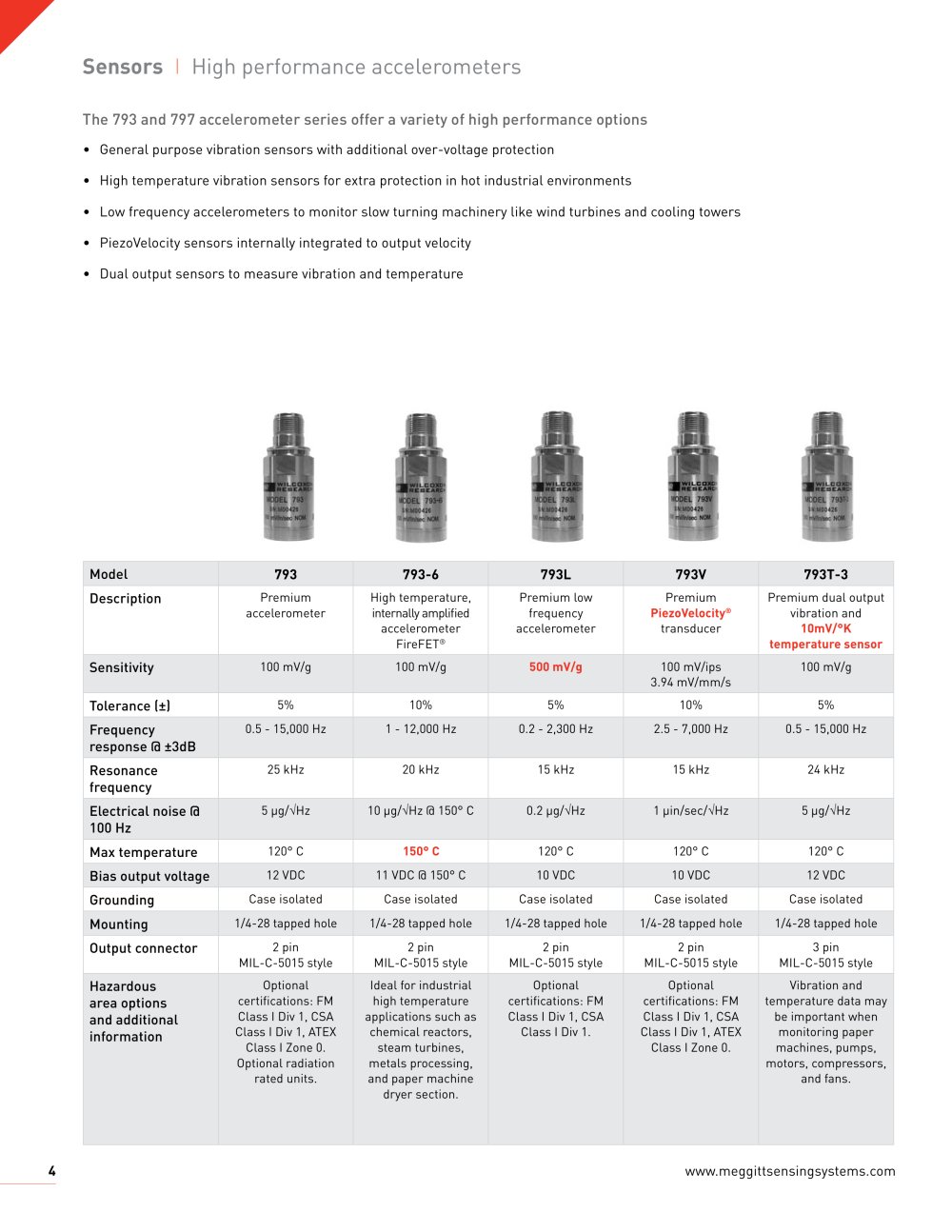

High Performance Accelerometers

Sensors

High Performance Accelerometers include:

• High temperature vibration sensors for extra protection

• Low frequency accelerometers, especially for petrochemical, machine tool, and paper industries

• High frequency accelerometers, especially for machinery with high frequency gear mesh or small bearings

• Triaxial accelerometers to provide multi-directional data for additional analysis and faster data collection


Model	793-6	797-6	793L	797L	732A
Description	High Temperature, Internally Amplified Accelerometer FireFET®	High Temperature, Center mount Accelerometer FireFET®	Premium Low Frequency Accelerometer	Premium Low Frequency Center Mount Accelerometer	High Frequency Accelerometer
Sensitivity	100 mV/g	100 mV/g	500 mV/g	500 mV/g	10 mV/g
Tolerance (±)	10%	10%	5%	5%	5%
Frequency Response @ 3dB	1 - 12,000 Hz	1 - 11,000 Hz	0.2 - 2,300 Hz	0.2 - 3,700 Hz	0.5 - 25,000 Hz
Resonance Frequency	20 kHz	20 kHz	15 kHz	18 kHz	60 kHz
Electrical Noise @ 100 Hz	10 ugNHz @ 150° C	10 ug/VHz @ 150° C	0.2 ug/VHz	0.2 ugNHz	3 ugA/Hz
Max. Temperature	150° C	150° C	120° C	120° C	120° C
Bias Output Voltage	11 VDC @ 150° C	11 VDC @ 150° C	10 VDC	10 VDC	10 VDC
Grounding	Case isolated	Case isolated	Case isolated	Case isolated	Case grounded
Mounting	1/4-28 tapped hole	1/4-28 captive screw	1/4-28 tapped hole	1/4-28 captive screw	10-32 tapped hole
Output Connector	2 pin, MIL-C-5015 style	2 pin, MIL-C-5015 style	2 pin, MIL-C-5015 style	2 pin, MIL-C-5015 style	10-32 coaxial
Applications	Chemical reactors Steam turbines Paper machine dryer	Chemical reactors Steam turbines Paper machine dryer	Petrochemical Machine tool Paper machine Slow-speed agitators Semiconductor lithography Structural testing Intrinsic safety applications Radiation rated units available	Petrochemical Machine tool Paper machine Slow-speed agitators Semiconductor lithography Structural testing Intrinsic safety applications	Gear mesh Small bearings High speed machine tool spindles Industrial compressors
