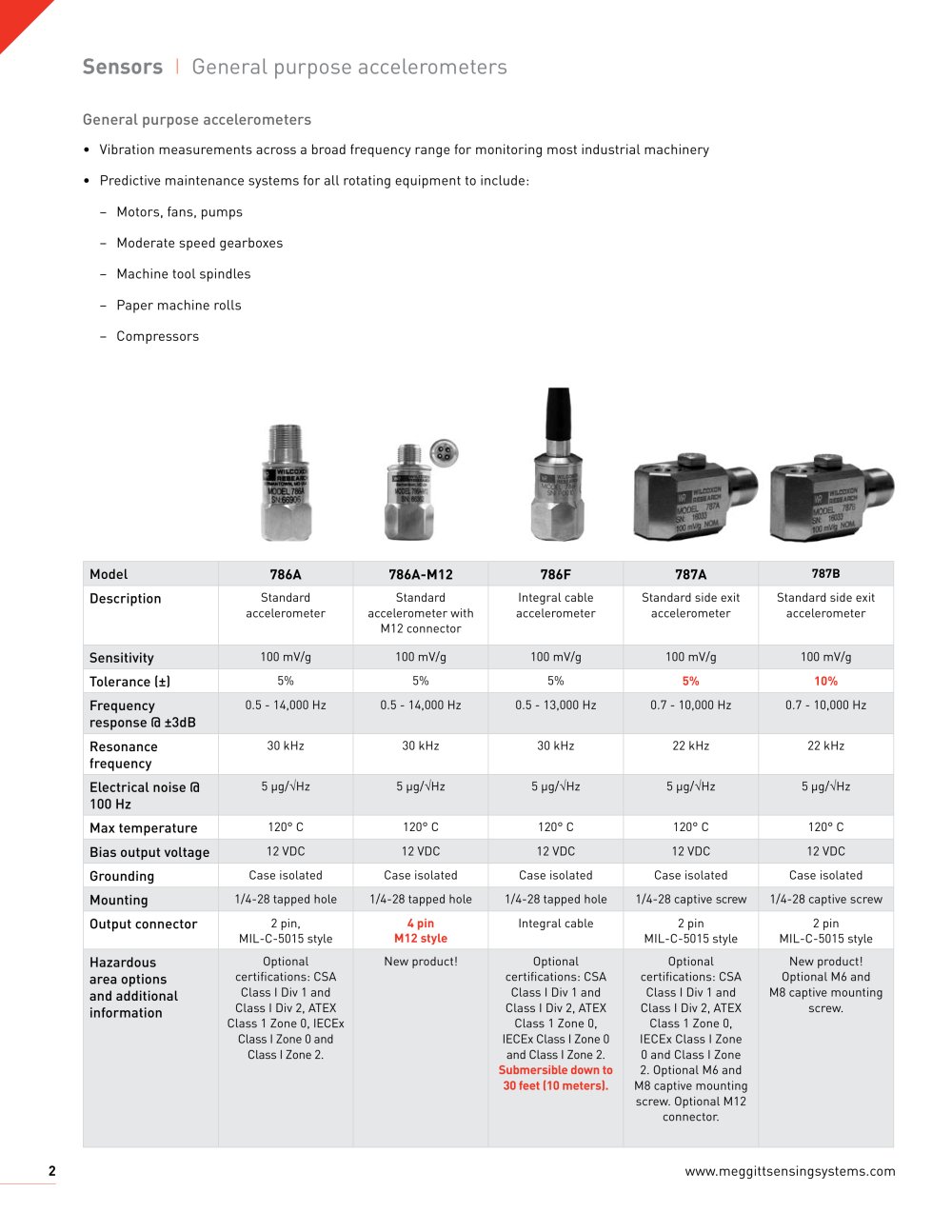

Sensors - General Purpose Industrial accelerometers

General Purpose Accelerometers:

• Vibration measurements accross a broad frequency range for monitoring most industrial machinery

• Predictive Maintenance systems for all rotating equipment to include:

- Motors, fans, pumps

- Moderate speed gearboxes

- Paper Machine Rolls


Model	793	797	786A	787A	786F
Description	Premium Accelerometer	Premium Center mount Accelerometer	Standard Accelerometer	Standard Side Exit Accelerometer	General Purpose Integral Cable Accelerometer
Sensitivity	100 mV/g	100 mV/g	100 mV/g	100 mV/g	100 mV/g
Tolerance (±)	5%	5%	5%	10%	5%
Frequency Response @ 3dB	0.5 - 15,000 Hz	1 - 12,000 Hz	0.5 - 14,000 Hz	0.7 - 10,000 Hz	0.5 - 13,000 Hz
Resonance Frequency	25 kHz	26 kHz	30 kHz	22 kHz	30 kHz
Electrical Noise @ 100 Hz	5 ugA/Hz	5 ugA/Hz	5 ugA/Hz	5 ug///Hz	5 ug///Hz
Max. Temperature	120° C	120° C	120° C	120° C	120° C
Bias Output Voltage	12 VDC	12 VDC	12 VDC	12 VDC	12 VDC
Grounding	Case isolated	Case isolated	Case isolated	Case isolated	Case isolated
Mounting	1/4-28 tapped hole	1/4-28 captive screw	1/4-28 tapped hole	1/4-28 captive screw	1/4-28 captive screw
Output Connector	2 pin, MIL-C-5015 style	2 pin, MIL-C-5015 style	2 pin, MIL-C-5015 style	2 pin, MIL-C-5015 style	Integral cable
Applications	Intrinsic safety applications Radiation rated units available	Intrinsic safety applications Radiation rated units available	Intrinsically safe models available	Intrinsically safe models available	Underwater submersion to 30ft. Intrinsically safe models available
