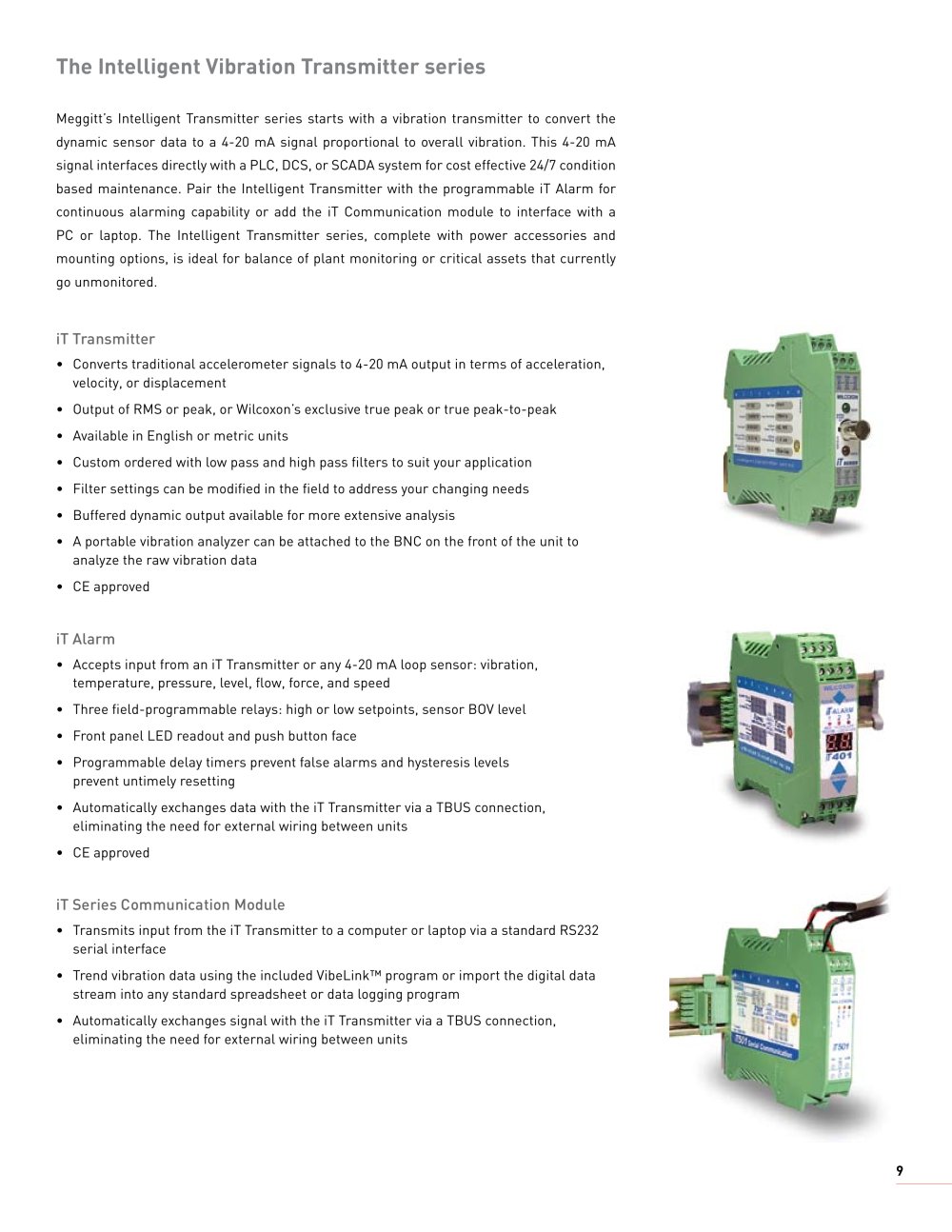

| | | Wilcoxon's New iT Series | | |
| | | |
| | | iT Transmitter: • Converts traditional accelerometer signals to 4-20 mA output in terms of acceleration, velocity, or displacement • Output of R.M.S or Peak, or Wilcoxon's exclusive True Peak or True Peak-to-Peak • Now available in English or Metric units • Custom ordered with low pass and high pass filters to suit your application • Filter settings can be modified in the field to address your changing needs | | |
| | | |
| | | • Buffered dynamic output available for more extensive analysis | | |
| | | |
| | | iT Alarm: • Accepts input from an iT Transmitter or any 4-20 mA loop sensor: vibration, temperature, pressure, level, flow, force, and speed • Three programmable relays: high or low setpoints, sensor BOV level • Programmable delay timers prevent false alarms and hysteresis levels prevent untimely resetting | | |
| | | |
| | | iT Series Communication Module: The iT Series Communication Module accepts inputs from the iT Transmitter to provide a link directly to a computer via a standard RS232 serial interface. To trend vibration data, the digital data stream can be imported into any standard spreadsheet or data logging program, or you can use our iT Series program to monitor all conditions right on your PC or laptop. | | |
| | | |
| | | The iT Alarm and iT Communication Module both automatically exchange data with the iT Transmitter via a TBUS connection, eliminating the need for external wiring between units. | | |
| | | |
| | | The iT Communication Module accepts input from the iT Transmitter and links to any laptop or PC via an RS232 serial port. Wilcoxon's free VibelinkTM software provides easy-to-use tracking and trending of vibration data. | | |
| | | |
| | | A 24VDC power supply to operate Wilcoxon's iT Series is available. Standard or custom cables, as well as all necessary accessories for online monitoring are also available. | | |
| | | |
| | | www.wilcoxon.com | | |
| | | |
| | | | | | | | | | | | | | | | | |
