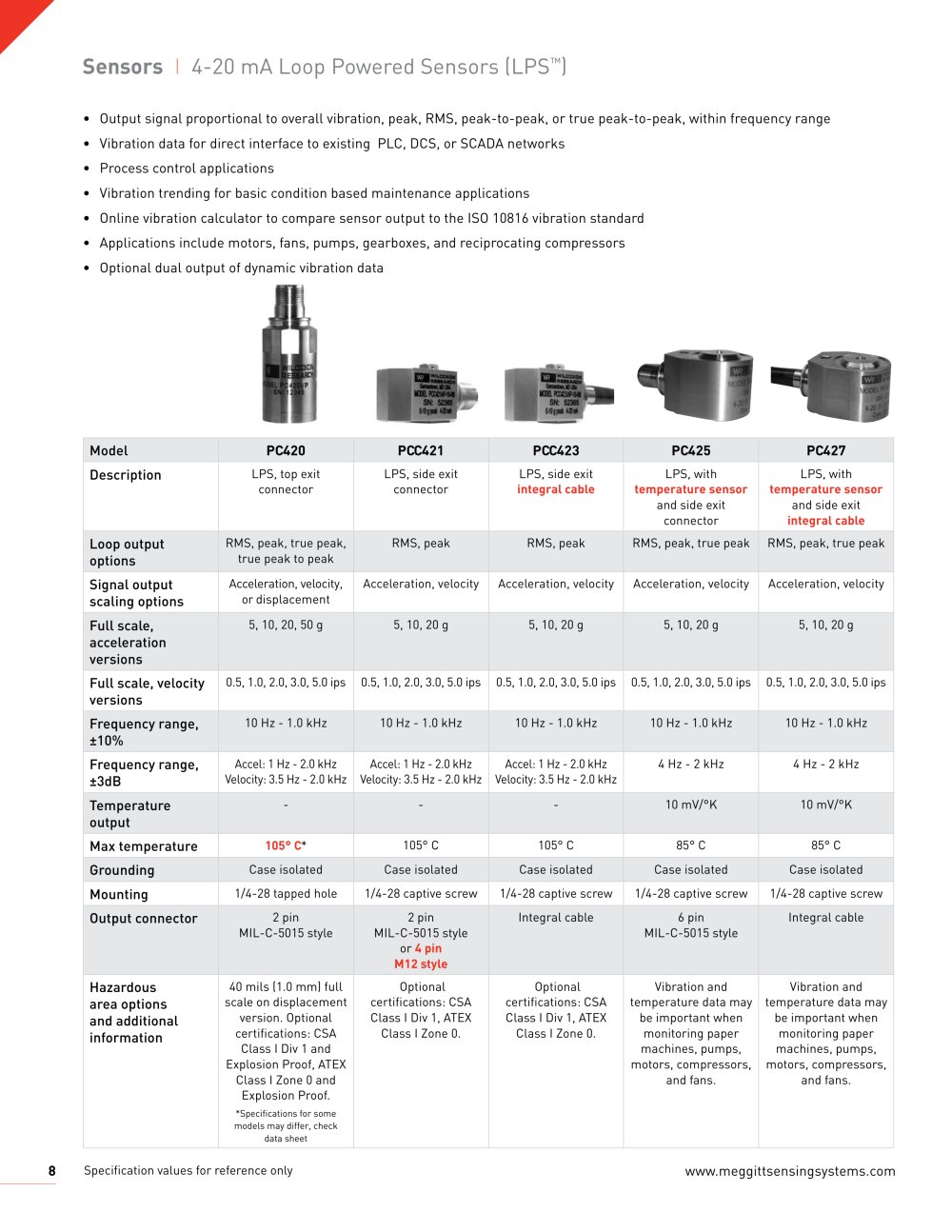

Sensors - 4-20 mA Loop Powered Sensors (LPS®)


	• Output signal proportional to overall vibration, peak	• Process control applications
	or RMS, within frequency range	• Vibration trending for basic Condition Based
	• Vibration data for direct interface to existing PLC or	Monitoring applications
	DCS networks

^ ^ <B


	Model	PC420	PC421	PC423	PC425	PC427
	Description	LPS, Top Exit connector	LPS, Side Exit connector	LPS, Side Exit integral cable	LPS with Temperature sensor, Side Exit connector	LPS with Temperature sensor, Side Exit integral cable
	Signal Output Scaling	Peak, RMS, True Peak	Peak, RMS, True Peak	Peak, RMS, True Peak	Peak, RMS, True Peak	Peak, RMS, True Peak
	Full Scale, Acceleration versions	5, 10, 20g	5, 10, 20g	5, 10, 20g	5, 10, 20g	5, 10, 20g
	Full Scale, Velocity versions	0.5, 1, 2, 3, 5 ips	0.5, 1, 2, 3, 5 ips	0.5, 1, 2, 3, 5 ips	0.5, 1, 2, 3, 5 ips	0.5, 1, 2, 3, 5 ips
	Frequency Range, 10%	10 Hz - 1,000 Hz	10 Hz - 1,000 Hz	10 Hz - 1,000 Hz	10 Hz - 1,000 Hz	10 Hz - 1,000 Hz
	Frequency Range, 3dB	4 Hz - 2,000 Hz	4 Hz - 2,000 Hz	4 Hz - 2,000 Hz	4 Hz - 2,000 Hz	4 Hz - 2,000 Hz
	Dynamic Output Option	Acceleration, Velocity	Acceleration, Velocity	Acceleration, Velocity	Acceleration, Velocity	Acceleration, Velocity
	Temperature Output	-	-	-	10 mV/°K	10 mV/°K
	Max. Temperature	85°C	85°C	85°C	85°C	85°C
	Grounding	Case isolated	Case isolated	Case isolated	Case isolated	Case isolated
	Mounting	1/4-28 tapped hole	1/4-28 captive screw	1/4-28 captive screw	1/4-28 captive screw	1/4-28 captive screw
	Output Connection	2 pin, MIL-C-5015 style	2 or 3 pin, MIL-C-5015 style	Integral cable	6 pin, MIL-C-5015 style	Integral cable
	Applications	Motors Fans Pumps Gearboxes Reciprocating compressors Intrinsically safe applications	Motors Fans Pumps Gearboxes Reciprocating compressors manufacturer Intrinsically safe applications	Motors Fans Pumps Gearboxes Reciprocating compressors Intrinsically safe applications	Motors Fans Pumps Gearboxes Reciprocating compressors	Motors Fans Pumps Gearboxes Reciprocating compressors

www.wilcoxon.com
