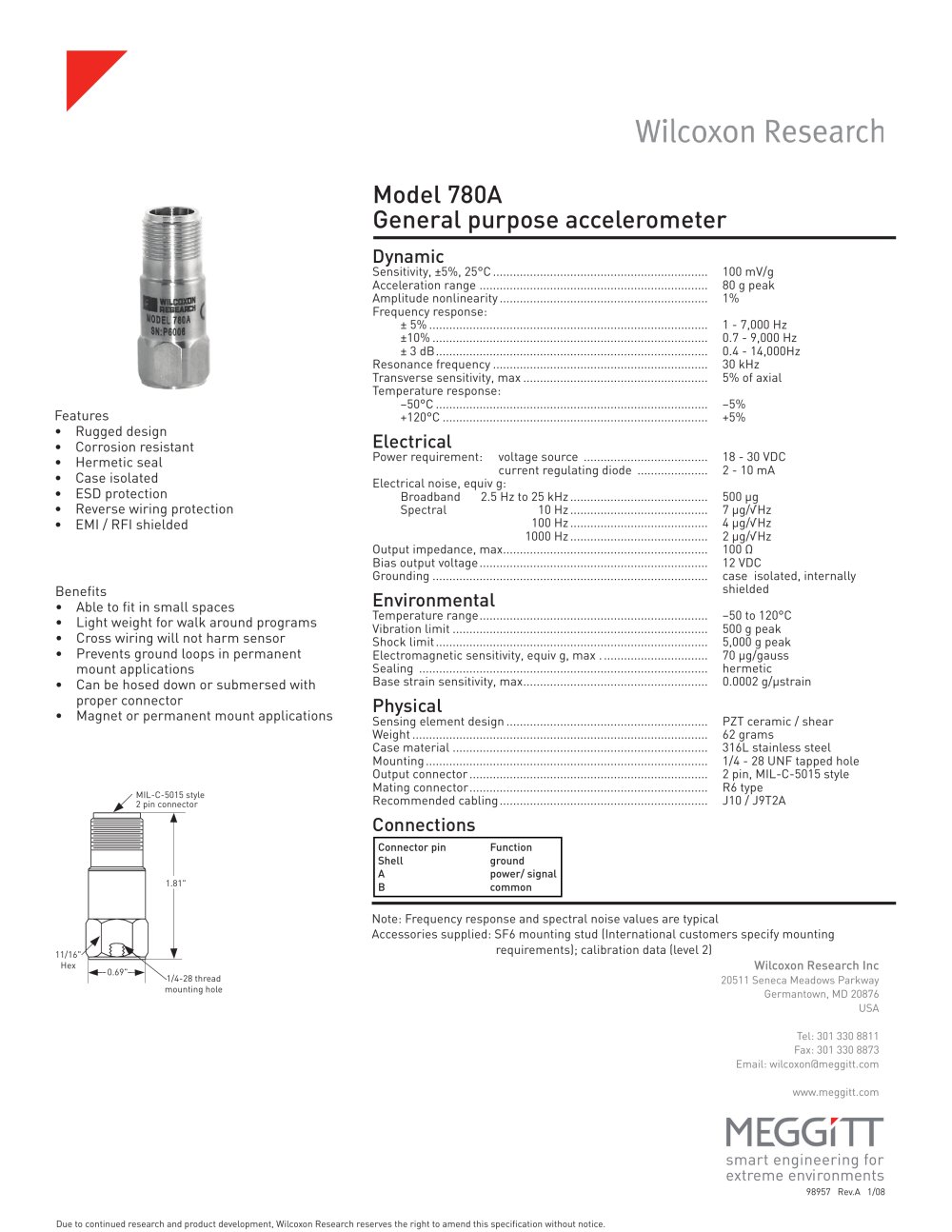

| DYNAMN Sensitivity, ±5%, 25°C..................................................................... 100 mV/g Acceleration Range.......................................................................... 50 g peak Amplitude Nonlinearity..................................................................... 1% Frequency Response: ±5%........................................................................................ 5.0 - 15,000 Hz ±3 dB...................................................................................... 2.0 - 25,000 Hz Resonance Frequency..................................................................... 60 kHz Transverse Sensitivity, max............................................................. 7% of axial Temperature Response................................................................... -50°C -10% +120°C +5% ELECTRICAL Power Requirement: voltage source....................................... 18 - 30 VDC current regulating diode........................ 2 - 10 mA Electrical Noise, equiv. g: Broadband 2.5 Hz to 25 kHz..................................... 150 |ig Spectral 10 Hz..................................... 10 ^g/VHz 100 Hz..................................... 2 Lig/VHz 1,000 Hz..................................... 1 |ig/VHz 10,000 Hz..................................... 0.8 pg >Hz Output Impedance, max................................................................... 150 Q Bias Output Voltage......................................................................... 10 VDC Grounding......................................................................................... case grounded ENVIRONMENTAL Temperature Range......................................................................... -50 to 120°C Vibration Limit................................................................................... 500 g peak Shock Limit....................................................................................... 5,000 g peak Electromagnetic Sensitivity, equiv. g............................................... 100 pg/gauss Base Strain Sensitivity ..................................................................... 0.005 g/istrain PHYSICAL Sensing Element Design.................................................................. PZT ceramic / compression Weight............................................................................................... 13 grams Material............................................................................................. 316L stainless steel Mounting........................................................................................... 10-32 tapped hole Output Connector............................................................................. 10-32 coaxial Mating Connector ............................................................................. R1 Recommended Cabling.................................................................... J93 CONNECTOR PIN FUNCTION SHELL common PIN power / signal |
