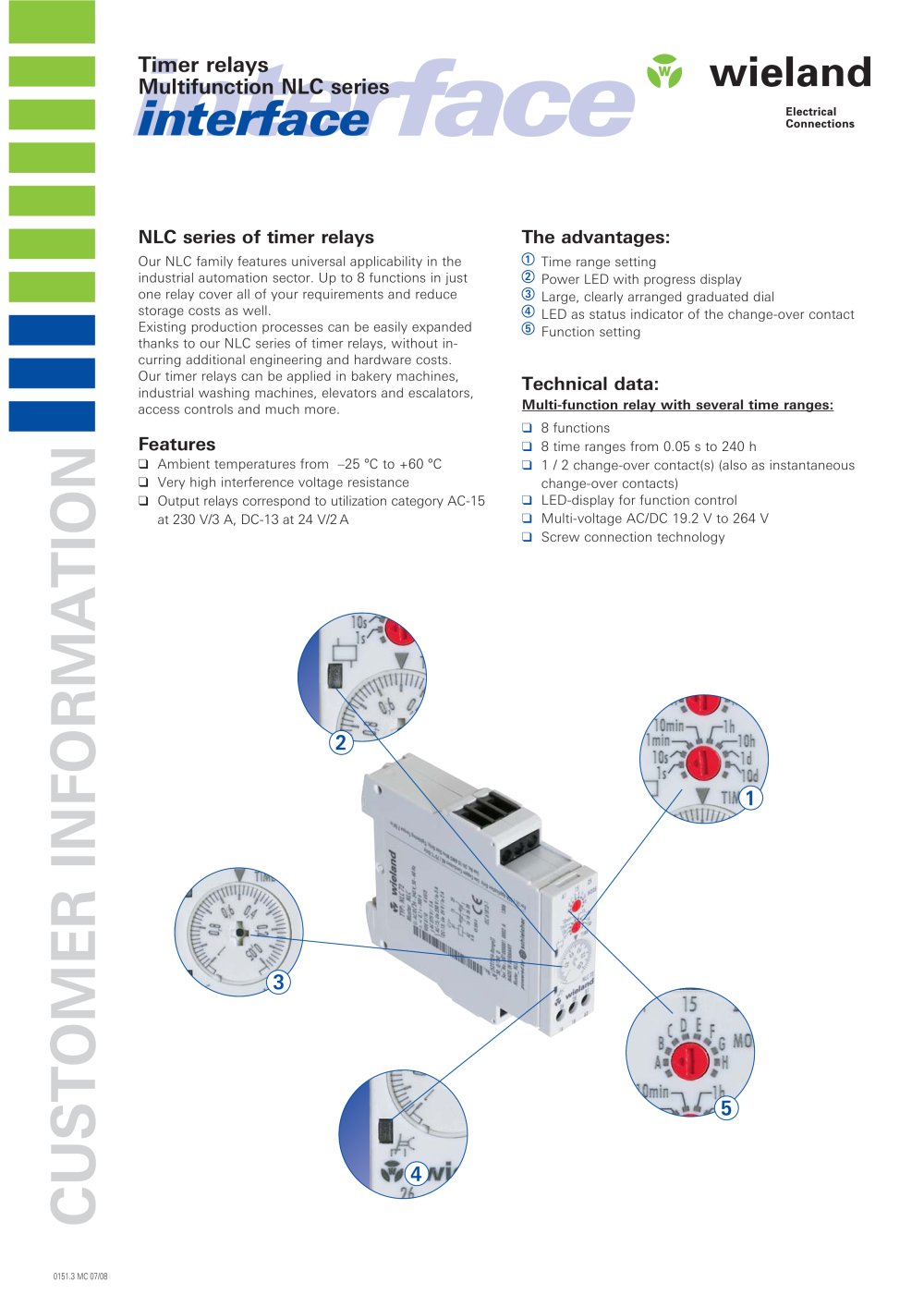

0151.3 MC 07/08 interface The advantages: Time range setting Power LED with progress display Large, clearly arranged graduated dial LED as status indicator of the change-over contact Function setting Technical data: Multi-function relay with several time ranges: 8 functions 8 time ranges from 0.05 s to 240 h 1 / 2 change-over contact(s) (also as instantaneous change-over contacts) LED-display for function control Multi-voltage AC/DC 19.2 V to 264 V Screw connection technology interface 1 2 3 4 5 1 2 3 4 5 NLC series of timer relays Our NLC family features universal applicability in the industrial automation sector. Up to 8 functions in just one relay cover all of your requirements and reduce storage costs as well. Existing production processes can be easily expanded thanks to our NLC series of timer relays, without incurring additional engineering and hardware costs. Our timer relays can be applied in bakery machines, industrial washing machines, elevators and escalators, access controls and much more. Features Ambient temperatures from –25 °C to +60 °C Very high interference voltage resistance Output relays correspond to utilization category AC-15 at 230 V/3 A, DC-13 at 24 V/2 A CUSTOMER INFORMATION Timer relays Multifunction NLC series
Open the catalog to page 1interface Timer relays Multifunction NLC series interface Time circuits Time settings analog Number of deliverable setting ranges 8 Subdivision in multiple sectors 0.05s to 240h (10d) Parallel loads permissible yes / B1 yes Internal half-wave rectification no / B1 yes Setting tolerance % ± 10 of full scale value Repeatability % + ± 10 ms < ± 1 Recovery time 1/2/3 ms 100 Voltage effect % Ä UN ±2 % ± 10 ms Temperature effect % /K ± 0.5 % ± 10ms Output circuits Contact material AgNi 90/10 Contact assignment 2 (1) x timed change-over contacts Rated switch voltage Un V AC/DC 240 Maximum switch...
Open the catalog to page 2interface Timer relays Multifunction NLC series interface General product description Wiring diagrams The timer relay has operating components at the front used to set the desired functions and time range. A dial is available for precise time settings which guarantees a high repeating accuracy of the desired values. Display elements (LEDs) signaling the energizing side (input variable) and the switch position (contact change) are available for visual control of the functional sequence. Selection of the functions (8 functions) with the “MODE” switch Mode Function NLC71 NLC72(-S)1) NLC91...
Open the catalog to page 3Head office: Wieland Electric GmbH Brennerstraße 10-14 D-96052 Bamberg Sales and Marketing Center: Wieland Electric GmbH Benzstraße 9 D-96052 Bamberg Phone +49 (951) 93 24-0 Fax +49 (951) 93 24-198 www.wieland-electric.com www.gesis.com info@wieland-electric.com P r o d u c t R a n g e AT Wieland Components and system components for the control cabinet • DIN rail terminal blocks – with screw connection – with spring clamp connection – with IDC connection • Safety – Safety relays – Modular safety systems • Fieldbus components • Interface – Power supplies – Overvoltage protection – Measuring...
