Switches

The Lynx Series - One switch many Solutions

The Lynx family of switches consisting of two different function levels and two types of approvals, Industrial and SA (substation).

Those options will give you the ability to select the perfect switch for your application providing optimum functionality at the best value. It is also possible to choose 10 / 100 Mbit/s or 1 Gbit/s transceivers on the fibre optic ports.

Lynx 100 / 1100

iii SNMP

iii Web configuration

• QoS / IPToS

• 4 priority queues

• Strict priority

• HoL blocking prevention

& 10 / 100 / 1000 Mbit/s & Distances on fibre up to

120 km & Multi- or Singelmod

transceivers & Bi-di transceiver

(send / receive on one fibre) & 2 configurable fibre ports & IP 40 / Metal Housing & Temperature range

-40°C up to +70°C & Redundant Power

(19 - 60V DC) & User configurable Fault

Contact & All switches in the network

configurable from any

port on any switch with

IP Config Tool & Web tool for configuration

Lynx 400 / 1400

All 100 / 1300 features and: iii FRNT iii STP/RSTP ® VLAN

iii IGMP Snooping |jL_J

iii MAC address filtering

- Net 1 Net 2

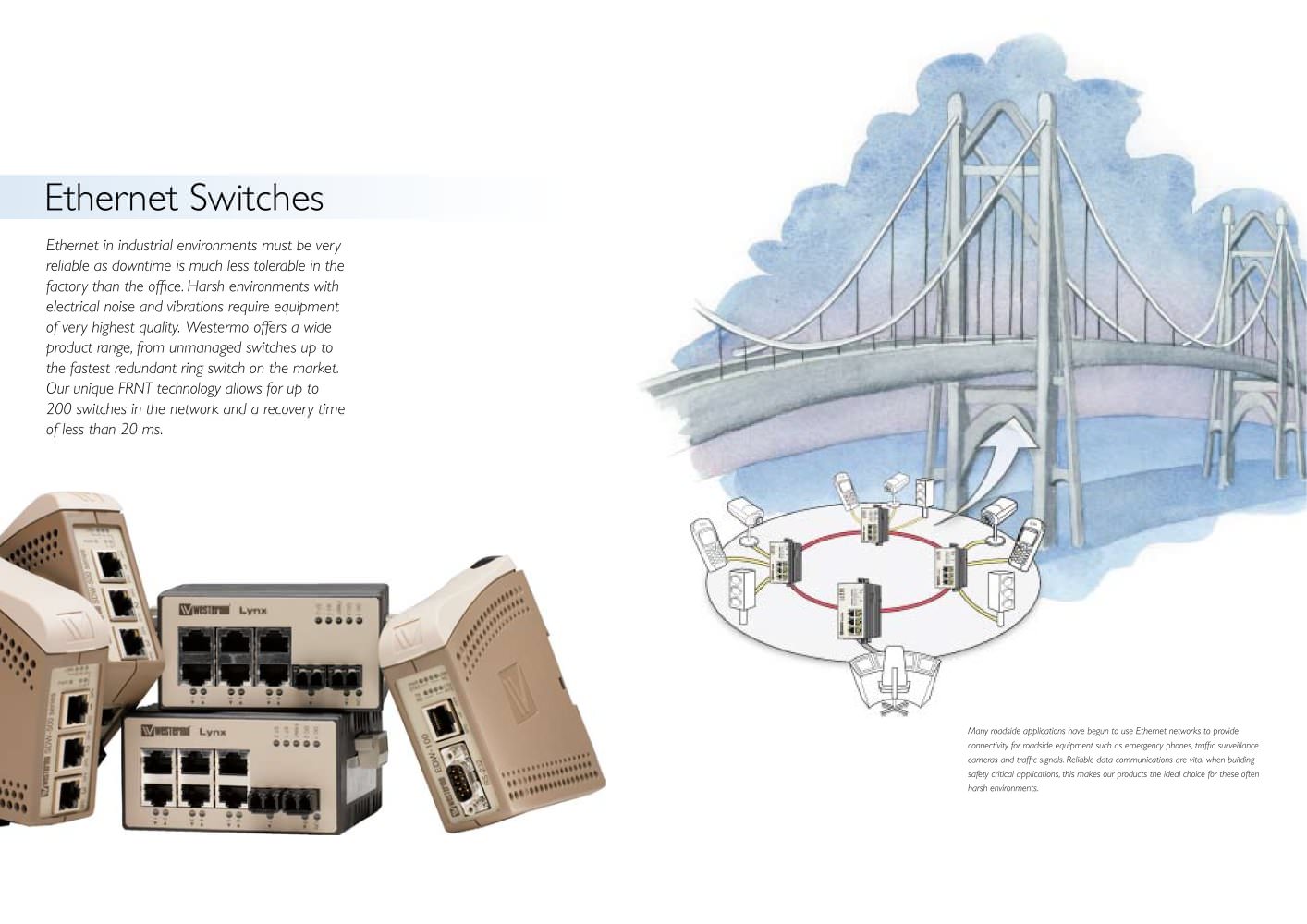

Fastest Switch on the Market

Our unique FRNT technology (fast recovery of network topology) is the fastest existing protocol on the market to reconfigure a redundant network in case of any failure on the fibre optic link.

FRNT is able to reconfigure a redundant ring network consisting of up to 200 switches within 20 ms, regardless of network load.
