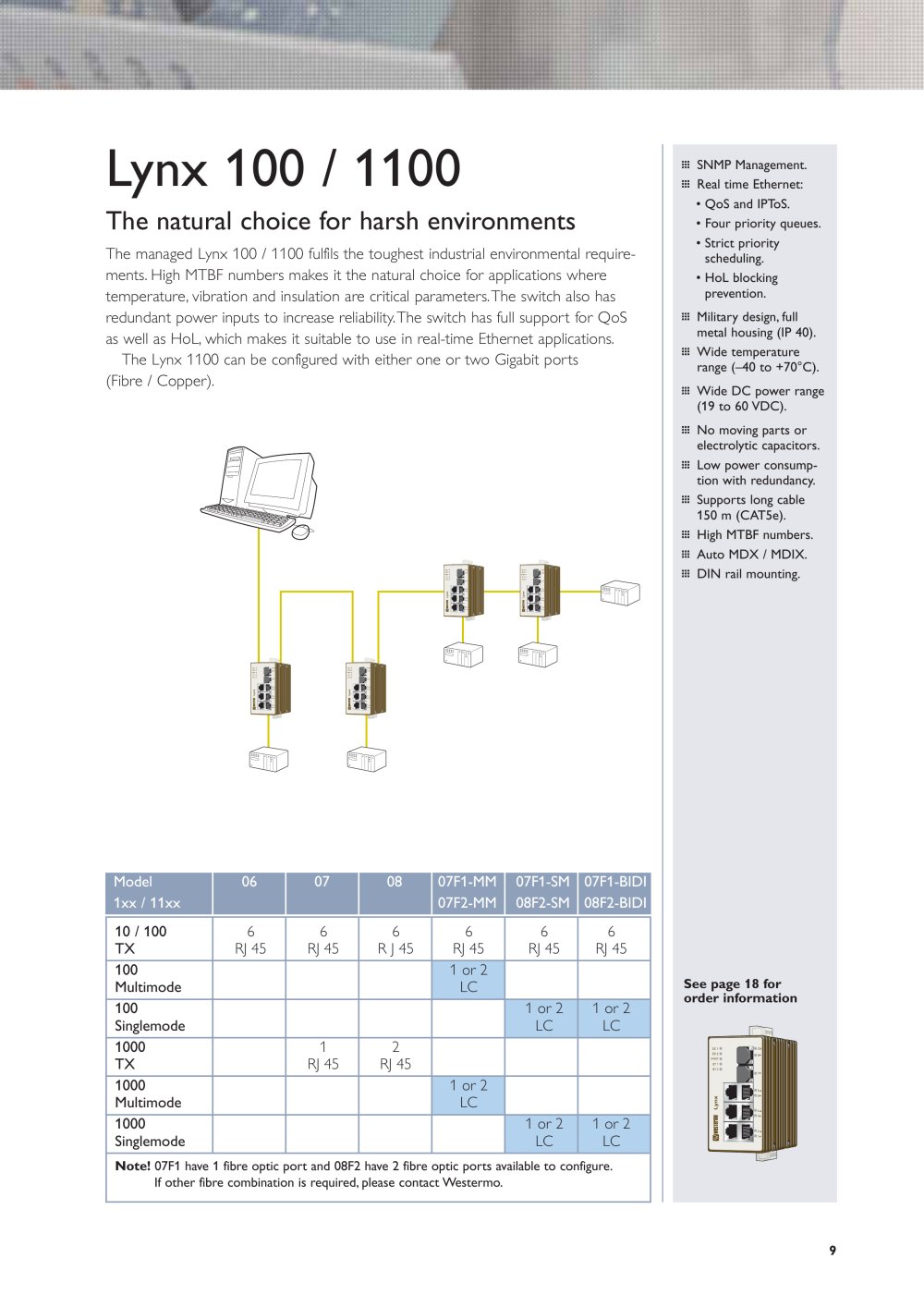

Lynx 100 / 1100

The natural choice for harsh environments

The managed Lynx 100 / 1100 fulfils the toughest industrial environmental requirements. High MTBF numbers makes it the natural choice for applications where temperature, vibration and insulation are critical parameters.The switch also has redundant power inputs to increase reliability The switch has full support for QoS as well as HoL, which makes it suitable to use in real-time Ethernet applications.

The Lynx 1100 can be configured with either one or two Gigabit ports (Fibre / Copper).

is SNMP Management. ra Real time Ethernet:

• QoS and IPToS.

• Four priority queues.

• Strict priority scheduling.

• HoL blocking prevention.

ra Military design, full metal housing (IP 40).

ra Wide temperature range (-40 to +70°C).

ra Wide DC power range (19 to 60 VDC).

a No moving parts or electrolytic capacitors.

ra Low power consumption with redundancy.

a Supports long cable

150 m (CAT5e). ra High MTBF numbers. ra Auto MDX / MDIX.

a DIN rail mounting.


Model 1xx / 11xx	06	07		8	07F1-MM 07F2-MM	07F1-SM 08F2-SM	07F1-BIDI 08F2-BIDI
10 / 100 TX 100 Multimode	-1-1- 1 6 6 6 6 RJ 45 RJ 45 J R J 45 _RJ 45					6 RJ 45	6 RJ 45
10 / 100 TX 100 Multimode					1 or 2 LC	6 RJ 45
100 Singlemode						1 or 2 LC	1 or 2 LC
1000 TX		1 RJ 45	2 RJ 45
1000 Multimode					1 or 2 LC
1000 Singlemode						1 or 2 LC	1 or 2 LC
Note! 07F1 have 1 fibre optic port and 08F2 have 2 fibre optic ports available to configure. If other fibre combination is required, please contact Westermo.

See page 18 for order information
