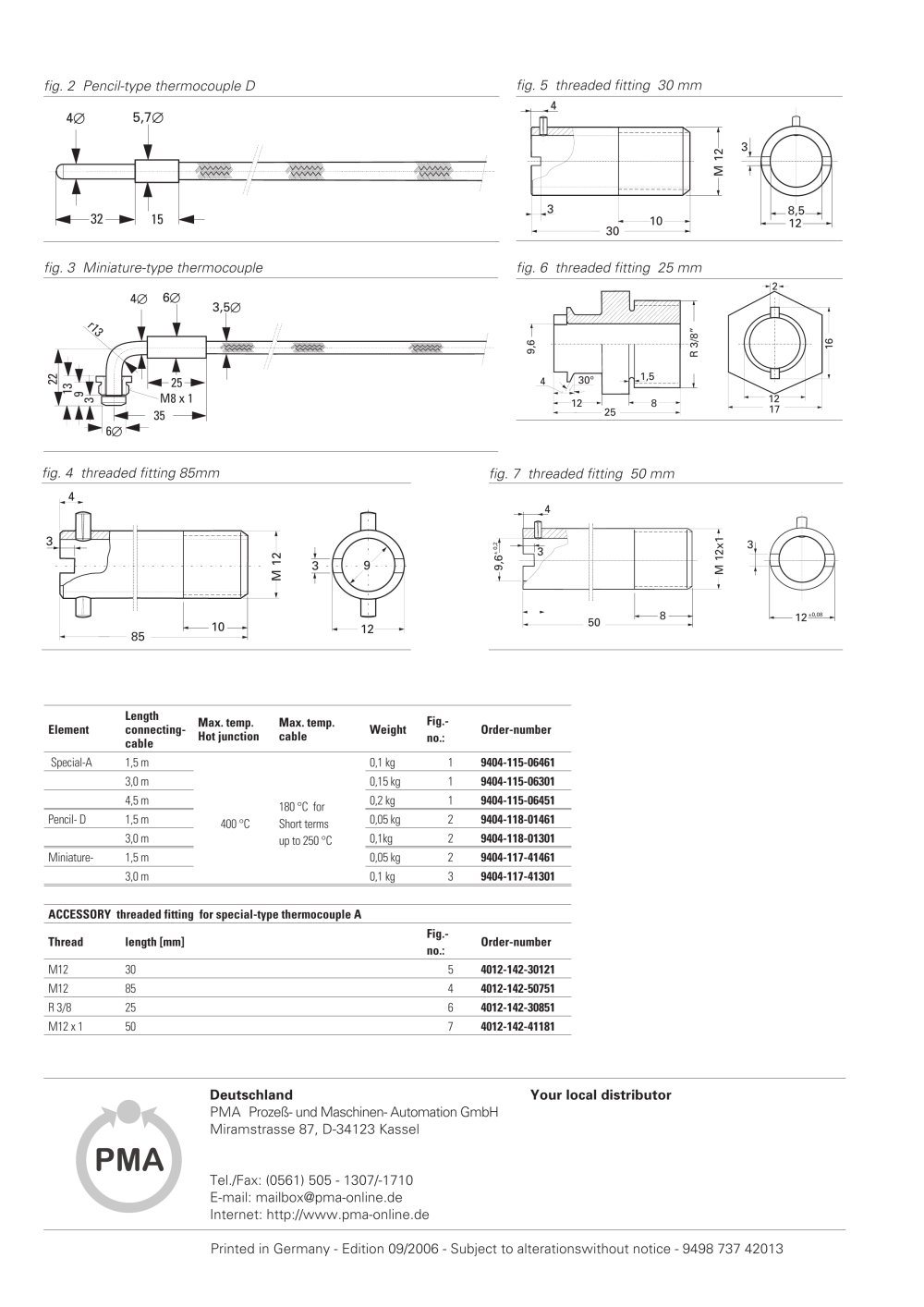

| | | fig. 2 Pencil-type thermocouple D fig. 5 threaded fitting 30 mm | | |
| | | |
| | | | | | | | | | | | | | | Element | Length connecting-cable | Max. temp. Hot junction | Max. temp. cable | Weight | Fig.- no.: | Order-number | | | | Special-A | 1,5m | | | 0,1kg | 1 | 9404-115-06461 | | | | | 3,0 m | | | 0,15 kg | 1 | 9404-115-06301 | | | | | 4,5 m | | 180 °C for Short terms | 0,2 kg | 1 | 9404-115-06451 | | | | Pencil-D | 1,5m | 400 °C | 0,05 kg | 2 | 9404-118-01461 | | | | | 3,0 m | | up to 250 °C | 0,1kg | 2 | 9404-118-01301 | | | | Miniature- | 1,5m | | | 0,05 kg | 2 | 9404-117-41461 | | | | | 3,0 m | | | 0,1 kg | 3 | 9404-117-41301 | | | | | | | | | | | | | | |
| | | |
| | | ACCESSORY threaded fitting for special-type thermocouple A | | |
| | | |
| | | | | | | | | | | | Thread | length [mm] | Fig.-no.: | Order-number | | | | M12 | 30 | 5 | 4012-142-30121 | | | | M12 | 85 | 4 | 4012-142-50751 | | | | R3/8 | 25 | 6 | 4012-142-30851 | | | | M12 x1 | 50 | 7 | 4012-142-41181 | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | Deutschland PMA Prozeß- und Maschinen-Automation GmbH Miramstrasse 87, D-34123 Kassel | Your local distributor | | | | | Tel./Fax: (0561) 505 - 1307/-1710 E-mail: mailbox@pma-online.de Internet: http://www.pma-online.de | | | | | | | | | | | |
| | | |
| | | Printed in Germany - Edition 09/2006 - Subject to alterationswithout notice - 9498 737 42013 | | |
| | | |
| | | | | | | | | | | | | |
