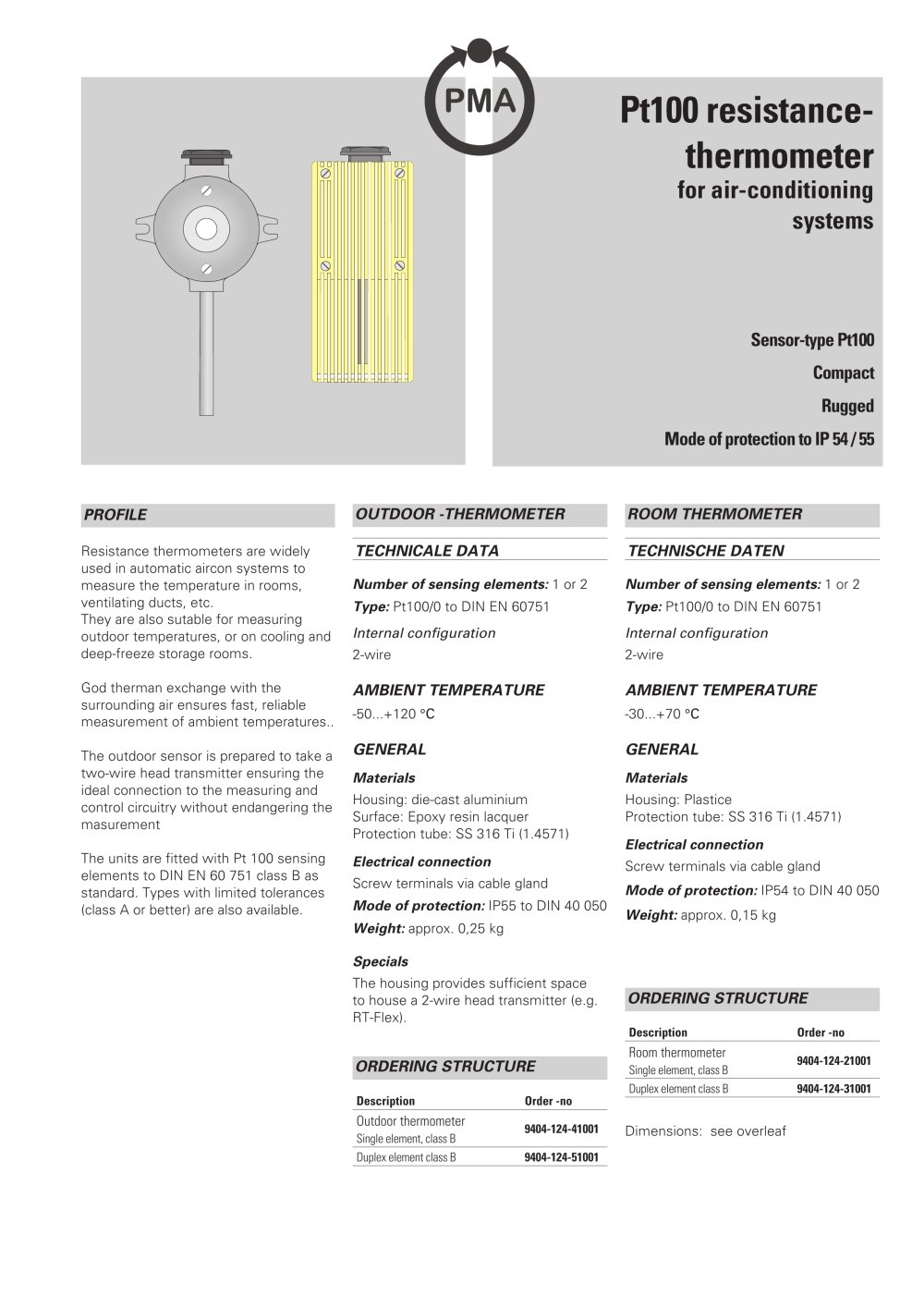

Pt100 resistance thermometer for air-conditioning systems - West Control Solutions - #1

Number of sensing elements: 1or2 Type: Pt100/0 to DIN EN 60751 Internal configuration

2-wire

-50...+120 °C

Housing: die-cast aluminium Surface: Epoxy resin lacquer Protection tube: SS 316 Ti (1.4571)

Screw terminals via cable gland

Mode of protection: IP55 to DIN 40 050

Weight: approx. 0,25 kg

The housing provides sufficient space to house a 2-wire head transmitter (e.g. RT-Flex).

Number of sensing elements: 1or2 Type: Pt100/0 to DIN EN 60751 Internal configuration

2-wire

-30...+70 °C

Housing: Plastice

Protection tube: SS 316 Ti (1.4571)

Screw terminals via cable gland

Mode of protection: IP54 to DIN 40 050

Weight: approx. 0,15 kg

Resistance thermometers are widely used in automatic aircon systems to measure the temperature in rooms, ventilating ducts, etc. They are also sutable for measuring outdoor temperatures, or on cooling and deep-freeze storage rooms.

God therman exchange with the surrounding air ensures fast, reliable measurement of ambient temperatures..

The outdoor sensor is prepared to take a two-wire head transmitter ensuring the ideal connection to the measuring and control circuitry without endangering the masurement

The units are fitted with Pt 100 sensing elements to DIN EN 60 751 class B as standard. Types with limited tolerances (class A or better) are also available.

Dimensions: see overleaf
