cu _l

0 6*

Dv pressed

E □ z

co c

E □ z

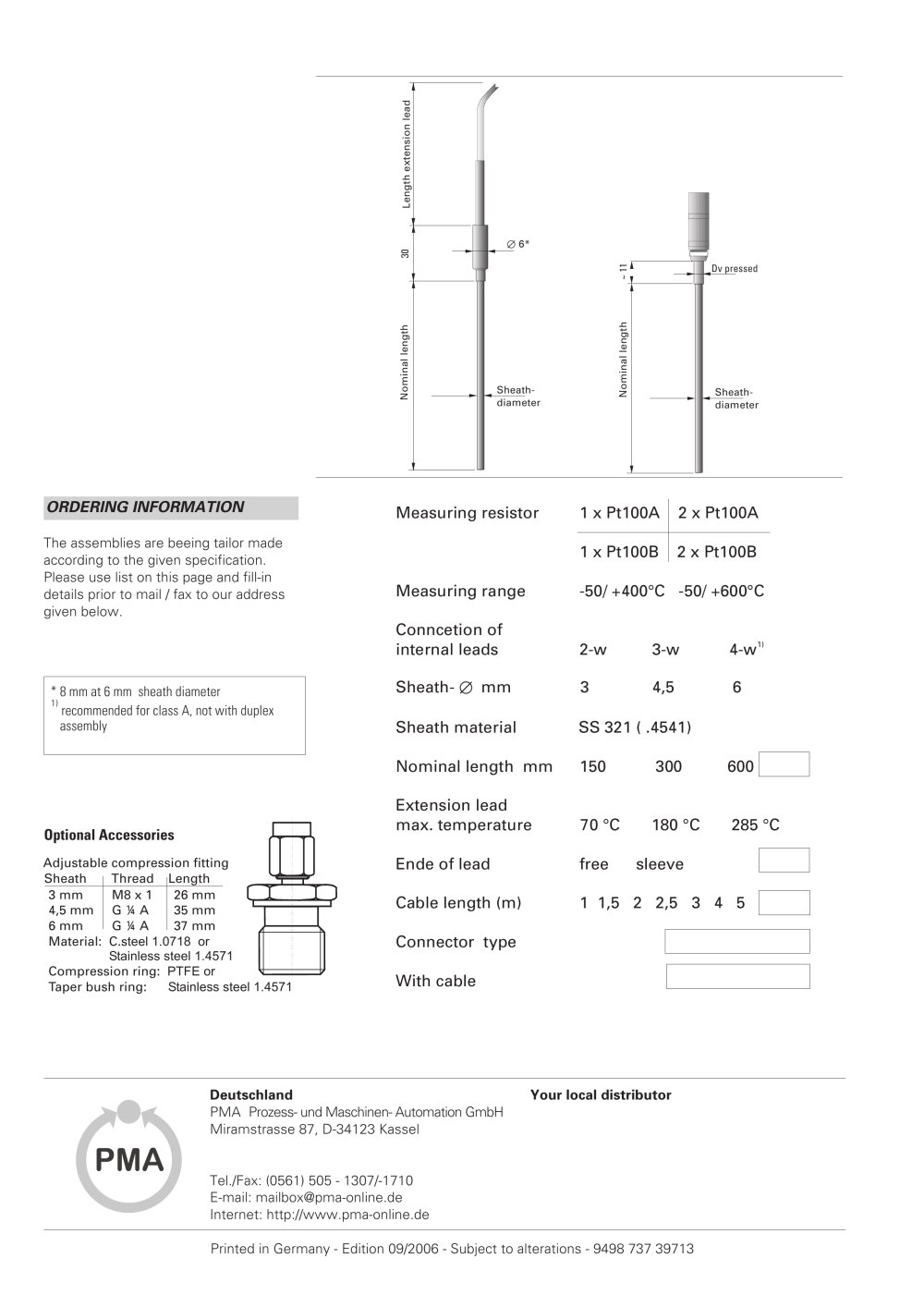

Sheath-diameter


Measuring resistor	1 x Pt100A	2 x Pt100A
	1xPt100B	2xPt100B
Measuring range	-50/ +400°C	-50/ +600°C

ORDERING INFORMATION

The assemblies are beeing tailor made according to the given specification. Please use list on this page and fill-in details prior to mail / fax to our address given below.

Conncetion of internal leads

Sheath- 0 mm

Sheath material

Nominal length mm

Extension lead max. temperature

Ende of lead

Cable length (m)

Connector type

With cable

2-w 3-w 3 4,5

SS 321 ( .4541)

150 300

4-w 6

600

8 mm at 6 mm sheath diameter ' recommended for class A, not with duplex assembly

70 °C 180 °C 285 °C

free sleeve

1 1,5 2 2,5 3 4 5 I

Optional Accessories

Adjustable compression fitting


Sheath	Thread	Length
3 mm	M8x1	26 mm
4,5 mm	G «A	35 mm
6 mm	GKA	37 mm

Material: C.steel 1.0718 or

Stainless steel 1.4571 Compression ring: PTFE or Taper bush ring: Stainless steel 1.4571


		Deutschland Your local distributor
		PMA Prozess- und Maschinen-Automation GmbH
		Miramstrasse 87, D-34123 Kassel
	fPMAJ
	V J	Tel./Fax: (0561) 505 - 1307/-1710
		E-mail: mailbox@pma-online.de
		Internet: http://www.pma-online.de

Printed in Germany - Edition 09/2006 - Subject to alterations - 9498 737 39713
