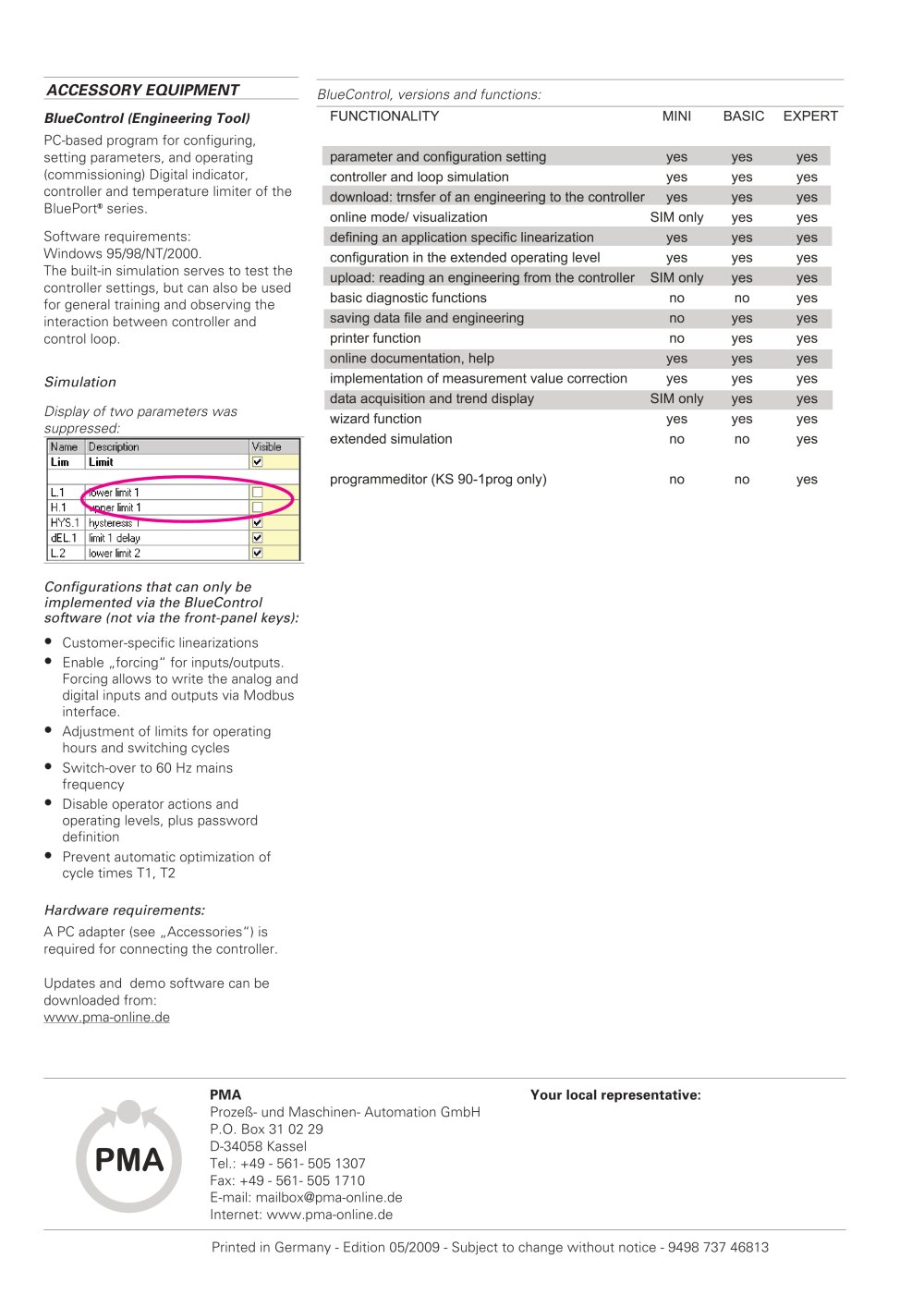

ACCESSORY EQUIPMENT
BlueControl (Engineering Tool)
PC-based program for configuring,
setting parameters, and operating
(commissioning) Digital indicator,
controller and temperature limiter of the
BluePort® series.
Software requirements:
Windows 95/98/NT/2000.
The built-in simulation serves to test the
controller settings, but can also be used
for general training and observing the
interaction between controller and
control loop.
Simulation
Configurations that can only be
implemented via the BlueControl
software (not via the front-panel keys):
• Customer-specific linearizations
• Enable „forcing“ for inputs/outputs.
Forcing allows to write the analog and
digital inputs and outputs via Modbus
interface.
• Adjustment of limits for operating
hours and switching cycles
• Switch-over to 60 Hz mains
frequency
• Disable operator actions and
operating levels, plus password
definition
• Prevent automatic optimization of
cycle times T1, T2
Hardware requirements:
A PC adapter (see „Accessories“) is
required for connecting the controller.
Updates and demo software can be
downloaded from:
www.pma-online.de
Printed in Germany - Edition 05/2009 - Subject to change without notice - 9498 737 46813
PMA
Prozeß- und Maschinen- Automation GmbH
P.O. Box 31 02 29
D-34058 Kassel
Tel.: +49 - 561- 505 1307
Fax: +49 - 561- 505 1710
E-mail: mailbox@pma-online.de
Internet: www.pma-online.de
Your local representative:
BlueControl, versions and functions:
Display of two parameters was
suppressed:
