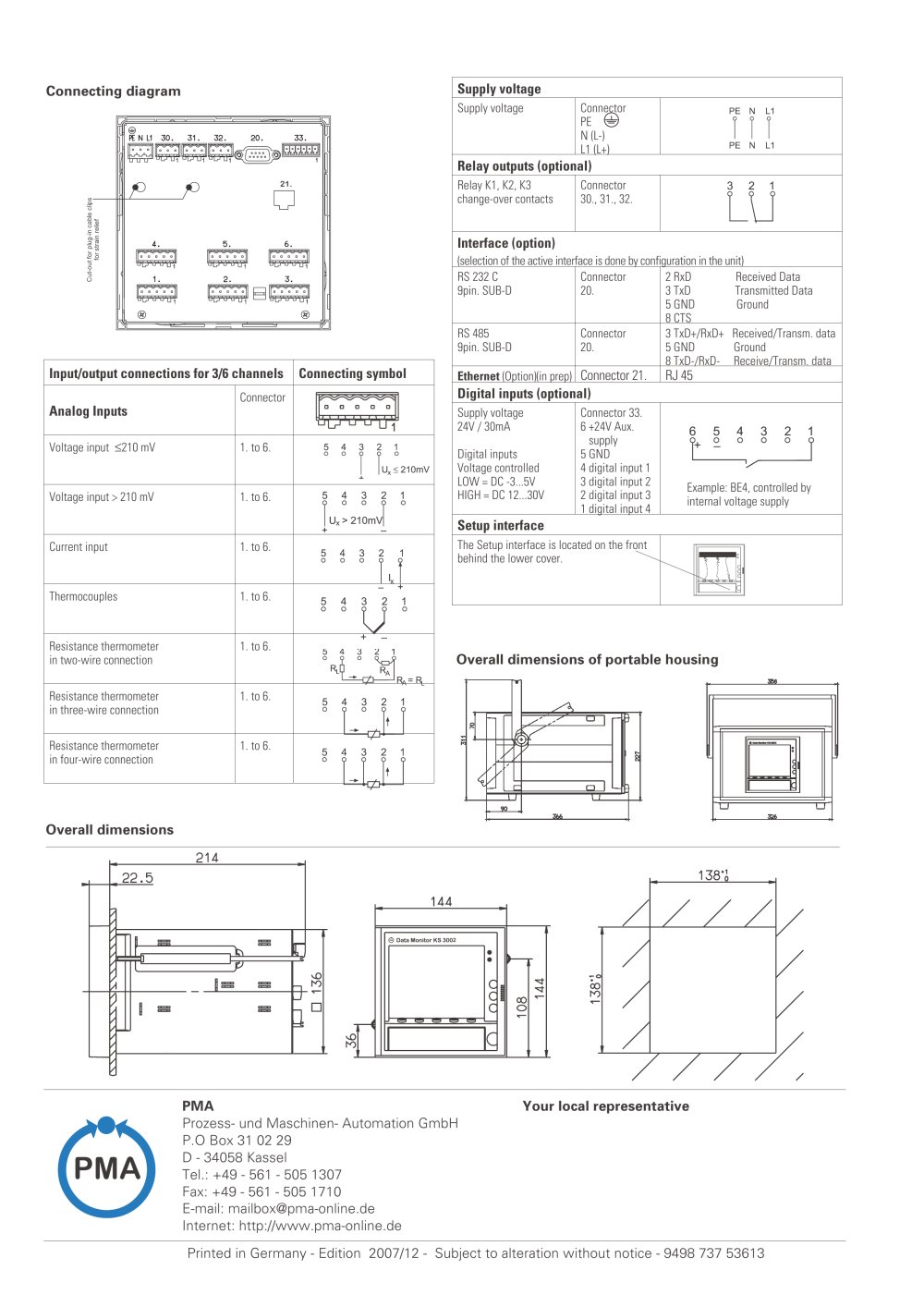

PMA Prozess- und Maschinen- Automation GmbH P.O Box 31 02 29 D - 34058 Kassel Tel.: +49 - 561 - 505 1307 Fax: +49 - 561 - 505 1710 E-mail: mailbox@pma-online.de Internet: http://www.pma-online.de Your local representative Printed in Germany - Edition 2007/12 - Subject to alteration without notice - 9498 737 53613 PMA Input/output connections for 3/6 channels Connecting symbol Analog Inputs Connector Voltage input 210 mV 1. to 6. Voltage input > 210 mV 1. to 6. Current input 1. to 6. Thermocouples 1. to 6. Resistance thermometer in two-wire connection 1. to 6. Resistance thermometer in three-wire connection 1. to 6. Resistance thermometer in four-wire connection 1. to 6. Supply voltage Supply voltage Connector PE N (L-) L1 (L+) Relay outputs (optional) Relay K1, K2, K3 change-over contacts Connector 30., 31., 32. Interface (option) (selection of the active interface is done by configuration in the unit) RS 232 C 9pin. SUB-D Connector 20. 2 RxD Received Data 3 TxD Transmitted Data 5 GND Ground 8 CTS RS 485 9pin. SUB-D Connector 20. 3 TxD+/RxD+ Received/Transm. data 5 GND Ground 8 TxD-/RxD- Receive/Transm. data Ethernet (Option)(in prep) Connector 21. RJ 45 Digital inputs (optional) Supply voltage 24V / 30mA Digital inputs Voltage controlled LOW = DC -3...5V HIGH = DC 12...30V Connector 33. 6 +24V Aux. supply 5 GND 4 digital input 1 3 digital input 2 2 digital input 3 1 digital input 4 Setup interface The Setup interface is located on the front behind the lower cover. Cut-out for plug-in cable clips for strain relief 21. Connecting diagram Example: BE4, controlled by internal voltage supply Overall dimensions of portable housing 2 Overall dimensions
