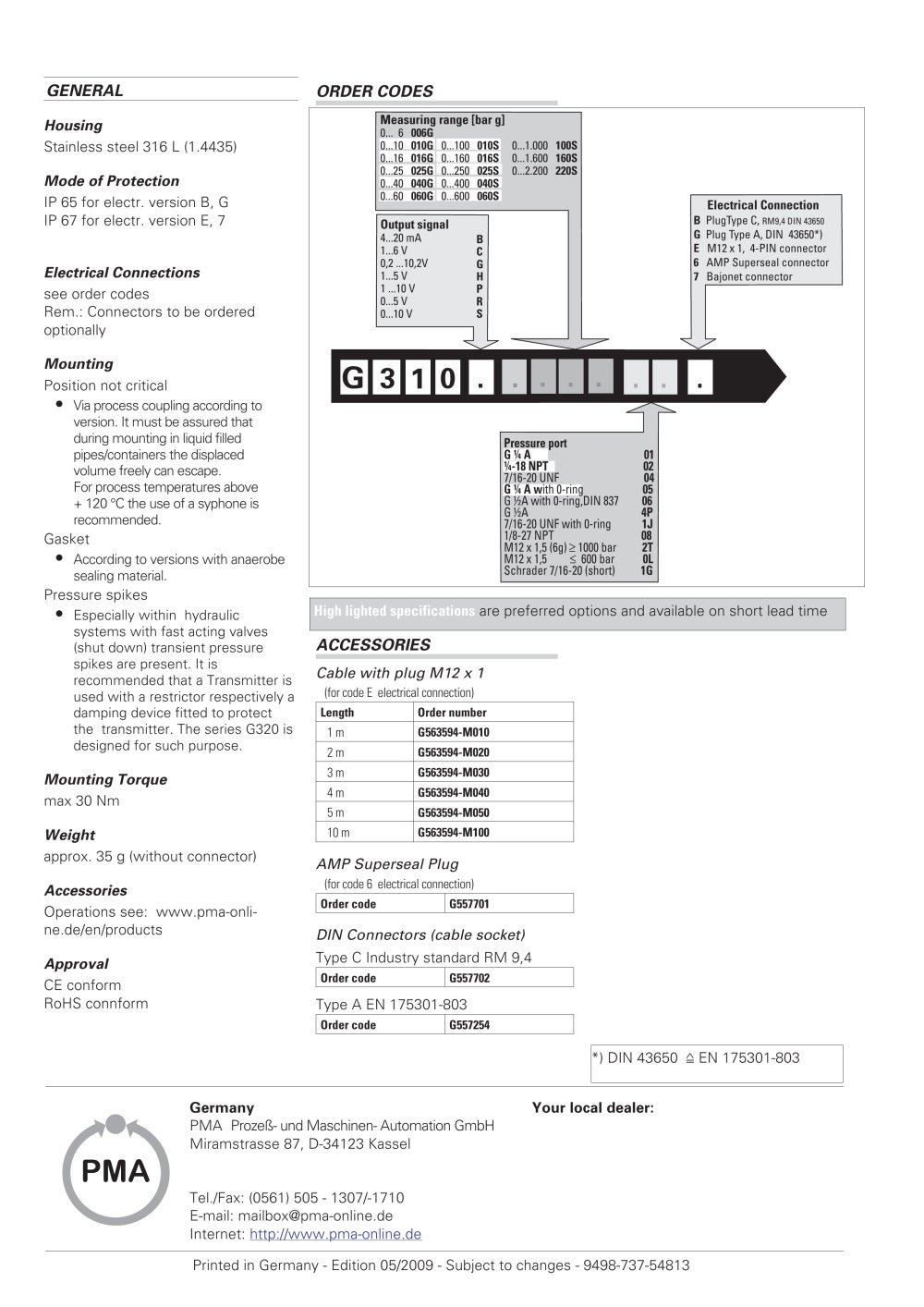

GENERAL
Housing
Stainless steel 316 L (1.4435)
Mode of Protection
IP 65 for electr. version B, G
IP 67 for electr. version E, 7
Electrical Connections
see order codes
Rem.: Connectors to be ordered
optionally
Mounting
Position not critical
• Via process coupling according to
version. It must be assured that
duringmounting in liquid filled
pipes/containers the displaced
volume freely can escape.
For process temperatures above
+ 120 °C the use of a syphone is
recommended.
Gasket
• According to versions with anaerobe
sealing material.
Pressure spikes
• Especially within hydraulic
systems with fast acting
valves
(shut down) transient pressure
spikes are present. It is
recommended that a Transmitter is
used with a restrictor respectively a
damping device fitted to protect
the transmitter. The series G320 is
designed for such purpose.
Mounting Torque
max 30 Nm
Weight
approx. 35 g (without connector)
Accessories
Operations see: www.pma-online.
de/en/products
Approval
CE conform
RoHS connform
ORDER CODES
ACCESSORIES
Cable with plug M12 x 1
(for code E electrical connection)
Length Order number
1m G563594-M010
2m G563594-M020
3m G563594-M030
4m G563594-M040
5m G563594-M050
10 m G563594-M100
AMP Superseal Plug
(for code 6 electrical connection)
Order code G557701
DIN Connectors (cable socket)
Type C Industry standard RM 9,4
Order code G557702
Type A EN 175301-803
Order code G557254
G . . . . . . . .
Electrical Connection
B
E
6
7
PlugType C,
M12 x 1, 4-PIN connector
AMP Superseal connector
Bajonet connector
RM9,4 DIN 43650
G Plug Type A, DIN 43650*)
3 1 0
Pressure port
G A 01
-18 NPT 02
04
G¼Aw 05
08
2T
0L
7/16-20 UNF
ith 0-ring
1/8-27 NPT
M12 x 1,5 (6g) 1000 bar
M12 x 1,5 600 bar
Schrader
¼
¼
06
4P
1J
G ½A with 0-ring,DIN 837
G ½A
7/16-20 UNF with 0-ring
7/16-20 (short)
?
ß
1G
Measuring range [bar g]
0... 6
0...10 0...100 0...1.000
0...16 0...160 0...1.600
0...25 0...250 0...2.200
0...40 0...400
0...60 0...600
006G
010G 010S 100S
016G 016S 160S
025G 025S 220S
040G 040S
060G 060S
B
C
G
H
P
R
S
Output signal
4...20 mA
1...6 V
0,2 ...10,2V
1...5 V
1 ...10 V
0...5 V
0...10 V
Germany
PMA Prozeß- und Maschinen- Automation GmbH
Miramstrasse 87, D-34123 Kassel
Tel./Fax: (0561) 505 - 1307/-1710
E-mail: mailbox@pma-online.de
Internet: http://www.pma-online.de
Your local dealer:
Printed in Germany - Edition 05/2009 - Subject to changes - 9498-737-54813
High lighted specifications are preferred options and available on short lead time
*) DIN 43650 = EN 175301-803
