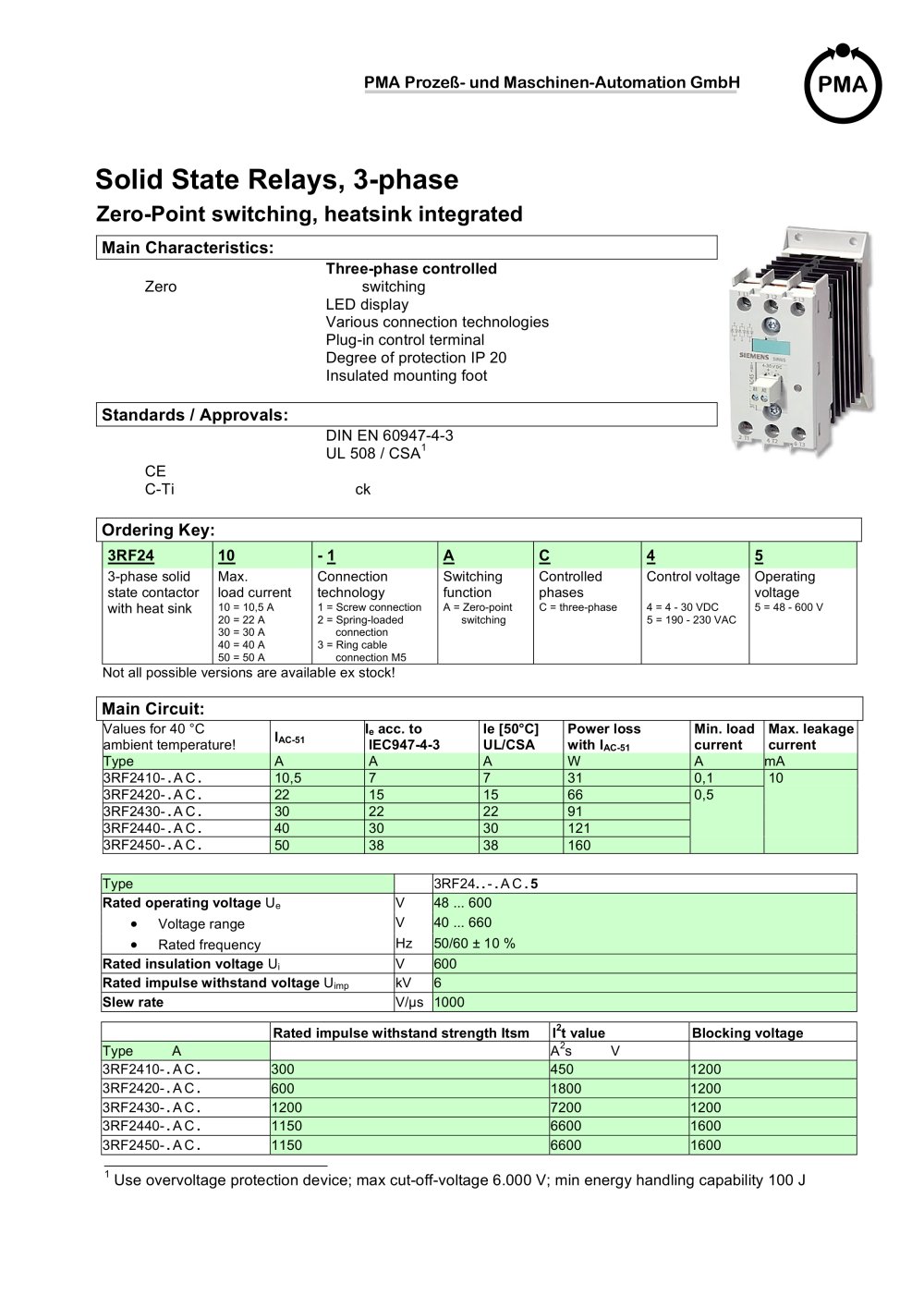

Zero-Point switching, heatsink integrated Main Characteristics: Three-phase controlled Zero switching LED display Various connection technologies Plug-in control terminal Degree of protection IP 20 Insulated mounting foot Standards / Approvals: DIN EN 60947-4-3 UL 508 / CSA1 CE C-Ti ck Ordering Key: 3RF24 10 - 1 A C 4 5 Max. load current Connection technology Switching function Controlled phases Control voltage Operating voltage 3-phase solid state contactor with heat sink 10 = 10,5 A 20 = 22 A 30 = 30 A 40 = 40 A 50 = 50 A 1 = Screw connection 2 = Spring-loaded connection 3 = Ring cable connection M5 A = Zero-point switching C = three-phase 4 = 4 - 30 VDC 5 = 190 - 230 VAC 5 = 48 - 600 V Not all possible versions are available ex stock! Main Circuit: Values for 40 °C ambient temperature! IAC-51 Ie acc. to IEC947-4-3 Ie [50°C] UL/CSA Power loss with IAC-51 Min. load current Max. leakage current Type A A A W A mA 3RF2410- .AC. 10,5 7 7 31 0,1 10 3RF2420- .AC. 22 15 15 66 0,5 3RF2430- .AC. 30 22 22 91 3RF2440- .AC. 40 30 30 121 3RF2450- .AC. 50 38 38 160 Type 3RF24. . - .AC.5 Rated operating voltage Ue V 48 ... 600 · Voltage range V 40 ... 660 · Rated frequency Hz 50/60 ± 10 % Rated insulation voltage Ui V 600 Rated impulse withstand voltage Uimp kV 6 Slew rate V/ìs 1000 Rated impulse withstand strength Itsm I2t value Blocking voltage Type A A2s V 3RF2410- .AC. 300 450 1200 3RF2420- .AC. 600 1800 1200 3RF2430- .AC. 1200 7200 1200 3RF2440- .AC. 1150 6600 1600 3RF2450- .AC. 1150 6600 1600 1 Use overvoltage protection device; max cut-off-voltage 6.000 V; min energy handling capability 100 J Solid State Relays, 3-phase PMA Prozeß- und Maschinen-Automation GmbH
