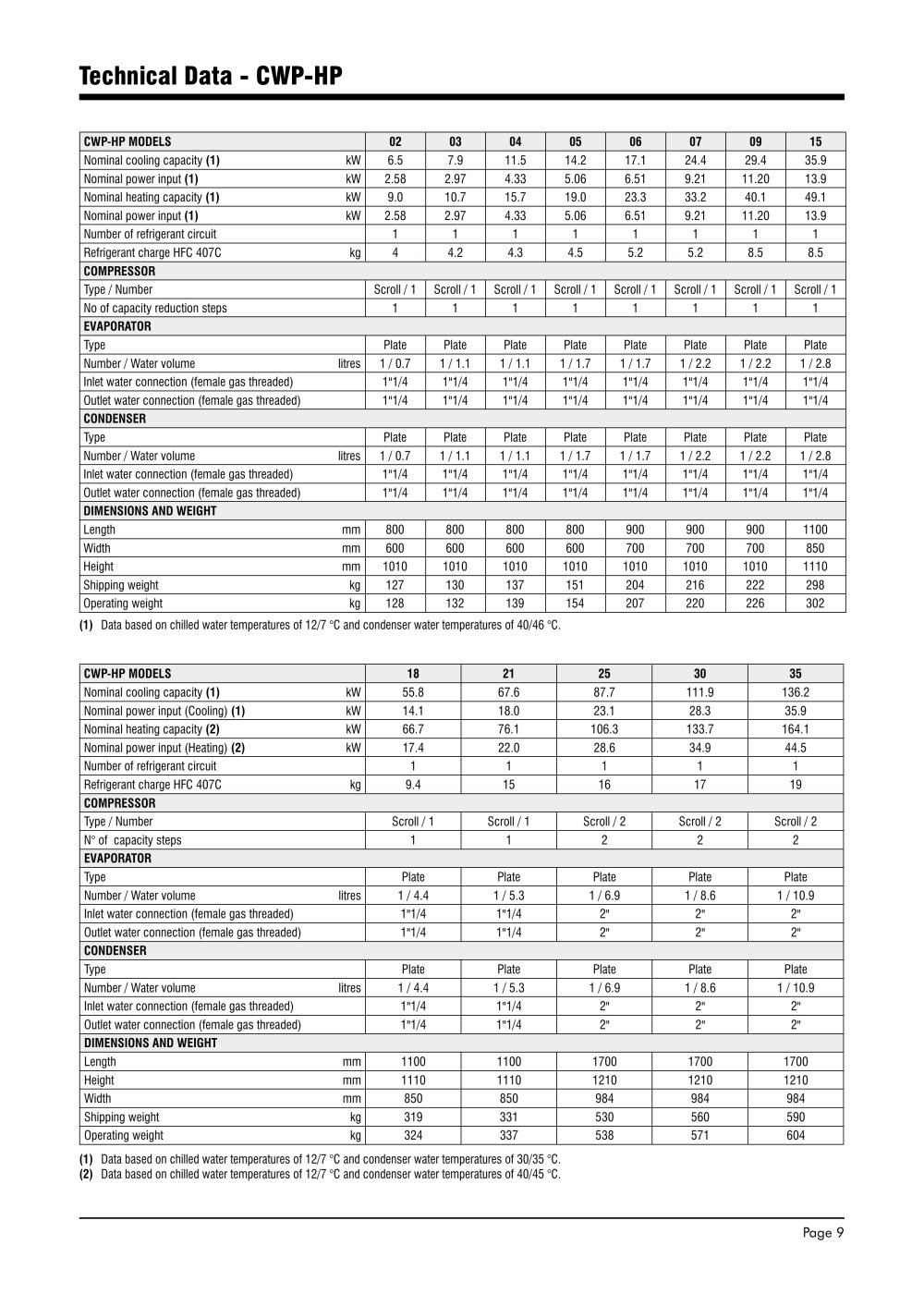

CWP-HP MODELS
02
03
04
05
06
07
09
15
Nominal cooling capacity (1)
kW
6.5
7.9
11.5
14.2
17.1
24.4
29.4
35.9
Nominal power input (1)
kW
2.58
2.97
4.33
5.06
6.51
9.21
11.20
13.9
Nominal heating capacity (1)
kW
9.0
10.7
15.7
19.0
23.3
33.2
40.1
49.1
Nominal power input (1)
kW
2.58
2.97
4.33
5.06
6.51
9.21
11.20
13.9
Number of refrigerant circuit
1
1
1
1
1
1
1
1
Refrigerant charge HFC 407C
kg
4
4.2
4.3
4.5
5.2
5.2
8.5
8.5
COMPRESSOR
Type / Number
Scroll / 1
Scroll / 1
Scroll / 1
Scroll / 1
Scroll / 1
Scroll / 1
Scroll / 1
Scroll / 1
No of capacity reduction steps
1
1
1
1
1
1
1
1
EVAPORATOR
Type
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Number / Water volume
litres
1 / 0.7
1 / 1.1
1 / 1.1
1 / 1.7
1 / 1.7
1 / 2.2
1 / 2.2
1 / 2.8
Inlet water connection (female gas threaded)
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
Outlet water connection (female gas threaded)
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
CONDENSER
Type
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Number / Water volume
litres
1 / 0.7
1 / 1.1
1 / 1.1
1 / 1.7
1 / 1.7
1 / 2.2
1 / 2.2
1 / 2.8
Inlet water connection (female gas threaded)
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
Outlet water connection (female gas threaded)
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
1"1/4
DIMENSIONS AND WEIGHT
Length
mm
800
800
800
800
900
900
900
1100
Width
mm
600
600
600
600
700
700
700
850
Height
mm
1010
1010
1010
1010
1010
1010
1010
1110
Shipping weight
kg
127
130
137
151
204
216
222
298
Operating weight
kg
128
132
139
154
207
220
226
302
(1) Data based on chilled water temperatures of 12/7 °C and condenser water temperatures of 40/46 °C.
CWP-HP MODELS
18
21
25
30
35
Nominal cooling capacity (1)
kW
55.8
67.6
87.7
111.9
136.2
Nominal power input (Cooling) (1)
kW
14.1
18.0
23.1
28.3
35.9
Nominal heating capacity (2)
kW
66.7
76.1
106.3
133.7
164.1
Nominal power input (Heating) (2)
kW
17.4
22.0
28.6
34.9
44.5
Number of refrigerant circuit
1
1
1
1
1
Refrigerant charge HFC 407C
kg
9.4
15
16
17
19
COMPRESSOR
Type / Number
Scroll / 1
Scroll / 1
Scroll / 2
Scroll / 2
Scroll / 2
N° of capacity steps
1
1
2
2
2
EVAPORATOR
Type
Plate
Plate
Plate
Plate
Plate
Number / Water volume
litres
1 / 4.4
1 / 5.3
1 / 6.9
1 / 8.6
1 / 10.9
Inlet water connection (female gas threaded)
1"1/4
1"1/4
2"
2"
2"
Outlet water connection (female gas threaded)
1"1/4
1"1/4
2"
2"
2"
CONDENSER
Type
Plate
Plate
Plate
Plate
Plate
Number / Water volume
litres
1 / 4.4
1 / 5.3
1 / 6.9
1 / 8.6
1 / 10.9
Inlet water connection (female gas threaded)
1"1/4
1"1/4
2"
2"
2"
Outlet water connection (female gas threaded)
1"1/4
1"1/4
2"
2"
2"
DIMENSIONS AND WEIGHT
Length
mm
1100
1100
1700
1700
1700
Height
mm
1110
1110
1210
1210
1210
Width
mm
850
850
984
984
984
Shipping weight
kg
319
331
530
560
590
Operating weight
kg
324
337
538
571
604
(1) Data based on chilled water temperatures of 12/7 °C and condenser water temperatures of 30/35 °C.
(2) Data based on chilled water temperatures of 12/7 °C and condenser water temperatures of 40/45 °C.
