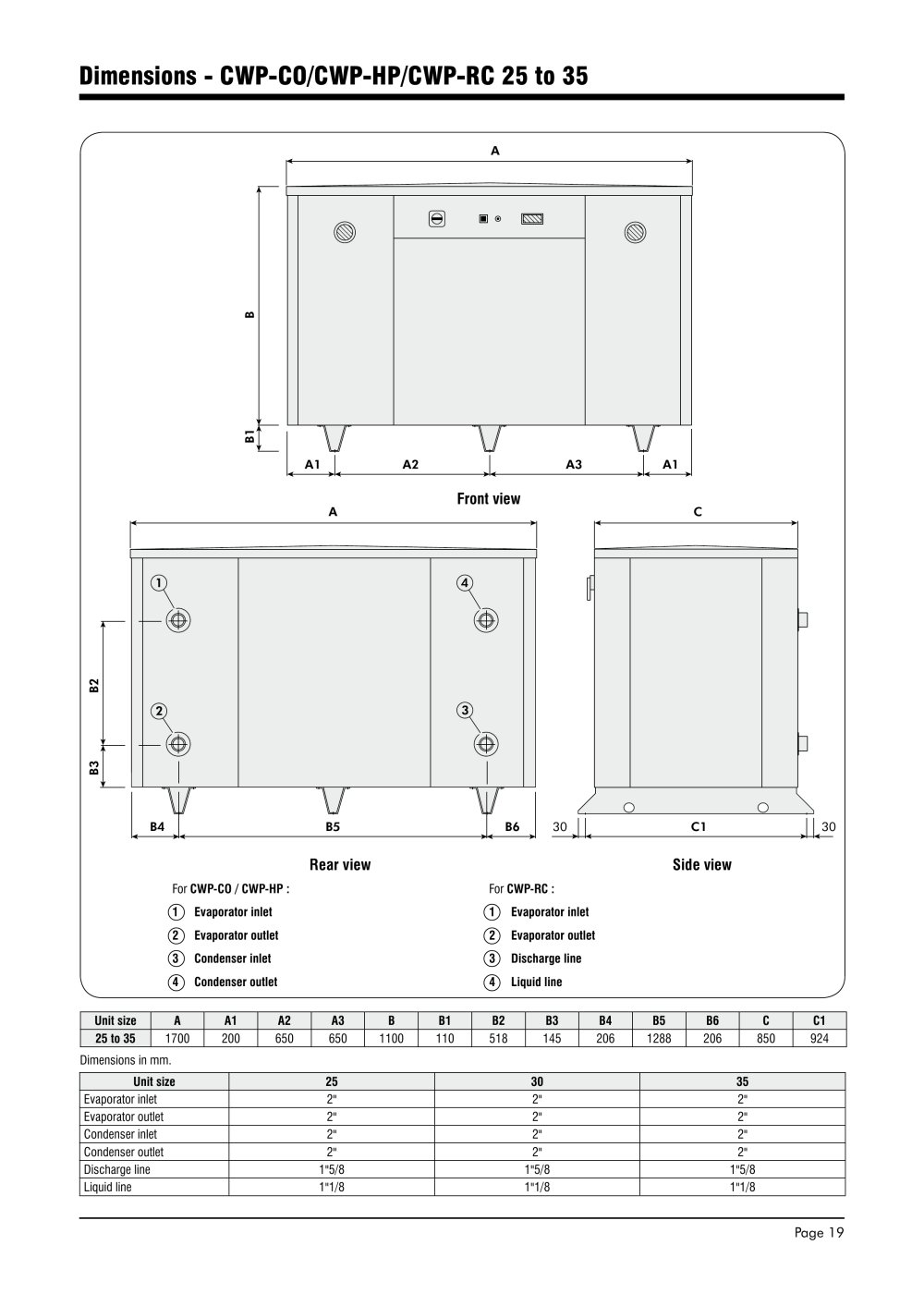

Front view
A
C
-®
©
©
B4
1 V \
B5
B6
o
o
30
CI
30
Side view
Rear view
For CWP-CO / CWP-HP : (?) Evaporator inlet
(2) Evaporator outlet
(3) Condenser inlet
(4) Condenser outlet
For CWP-RC : (T) Evaporator inlet
(2) Evaporator outlet
(3) Discharge line
(4) Liquid line
Unit size
A
A1
A2
A3
B
B1
B2
B3
B4
B5
B6
C
C1
25 to 35
1700
200
650
650
1100
110
518
145
206
1288
206
850
924
Dimensions in mm.
Unit size
25
30
35
Evaporator inlet
2"
2"
2"
Evaporator outlet
2"
2"
2"
Condenser inlet
2"
2"
2"
Condenser outlet
2"
2"
2"
Discharge line
1"5/8
1"5/8
1"5/8
Liquid line
1"1/8
1"1/8
1"1/8
