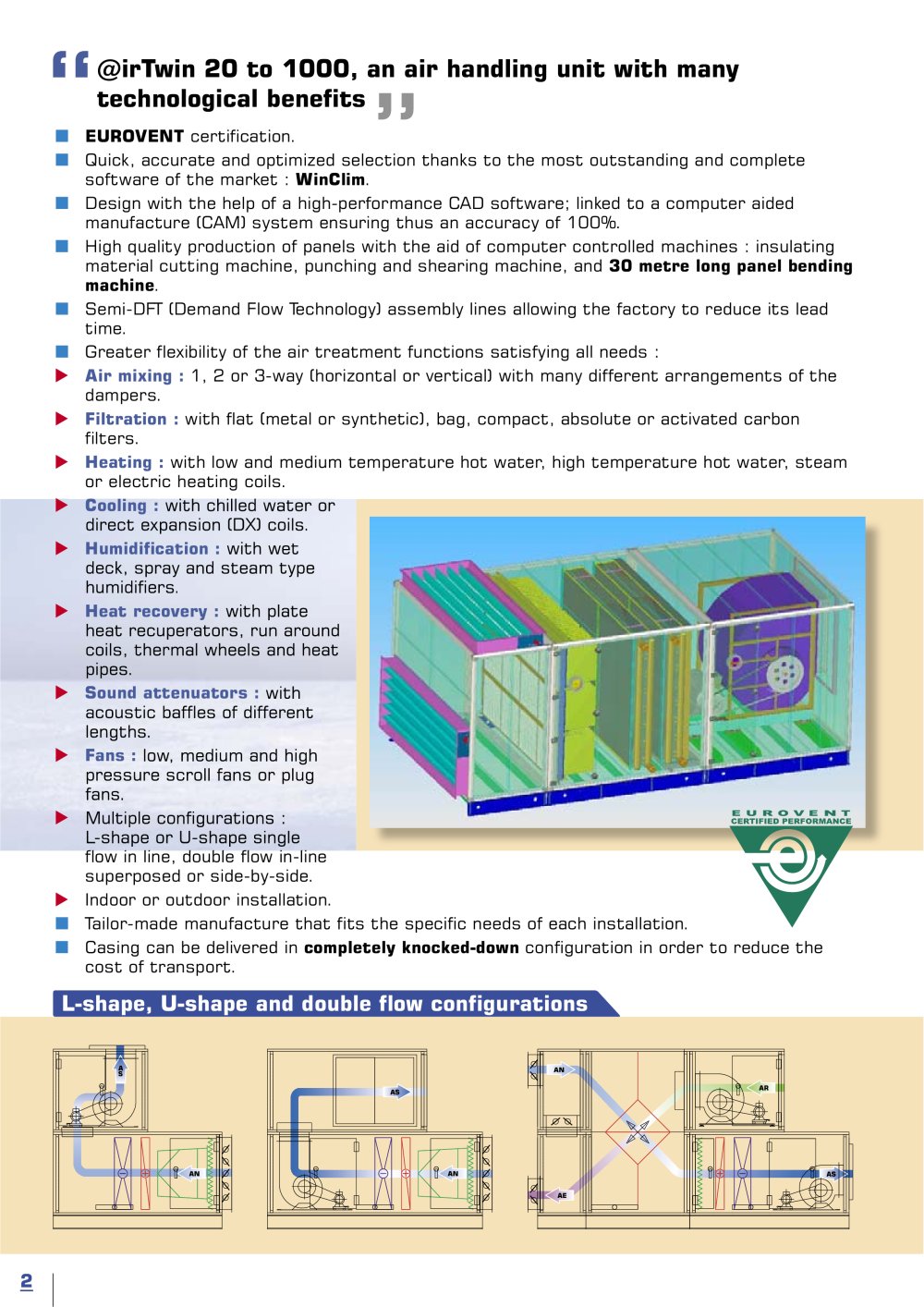

@irTwin TR 20 to 1000 - WESPER - #2

11 @irTwin 20 to 1000, an air handling unit with many technological benefits ■ ■

■ EUROVENT certification.

■ Quick, accurate and optimized selection thanks to the most outstanding and complete software of the market : WinClim.

■ Design with the help of a high-performance CAD software; linked to a computer aided manufacture (CAM] system ensuring thus an accuracy of 100%.

■ High quality production of panels with the aid of computer controlled machines : insulating material cutting machine, punching and shearing machine, and 30 metre long panel bending machine.

■ Semi-DFT (Demand Flow Technology] assembly lines allowing the factory to reduce its lead time.

■ Greater flexibility of the air treatment functions satisfying all needs :

► Air mixing : 1, 2 or 3-way (horizontal or vertical] with many different arrangements of the dampers.

► Filtration : with flat (metal or synthetic], bag, compact, absolute or activated carbon filters.

► Heating : with low and medium temperature hot water, high temperature hot water, steam or electric heating coils.

► Cooling : with chilled water or direct expansion (DX) coils.

► Humidification : with wet deck, spray and steam type humidifiers.

► Heat recovery : with plate heat recuperators, run around coils, thermal wheels and heat pipes.

► Sound attenuators : with acoustic baffles of different lengths.

► Fans : low, medium and high pressure scroll fans or plug fans.

► Multiple configurations : L-shape or U-shape single

flow in line, double flow in-line superposed or side-by-side.

► Indoor or outdoor installation.

■ Tailor-made manufacture that fits the specific needs of each installation. ▼

■ Casing can be delivered in completely knocked-down configuration in order to reduce the cost of transport.

L-shape, U-shape and double flow configurations
