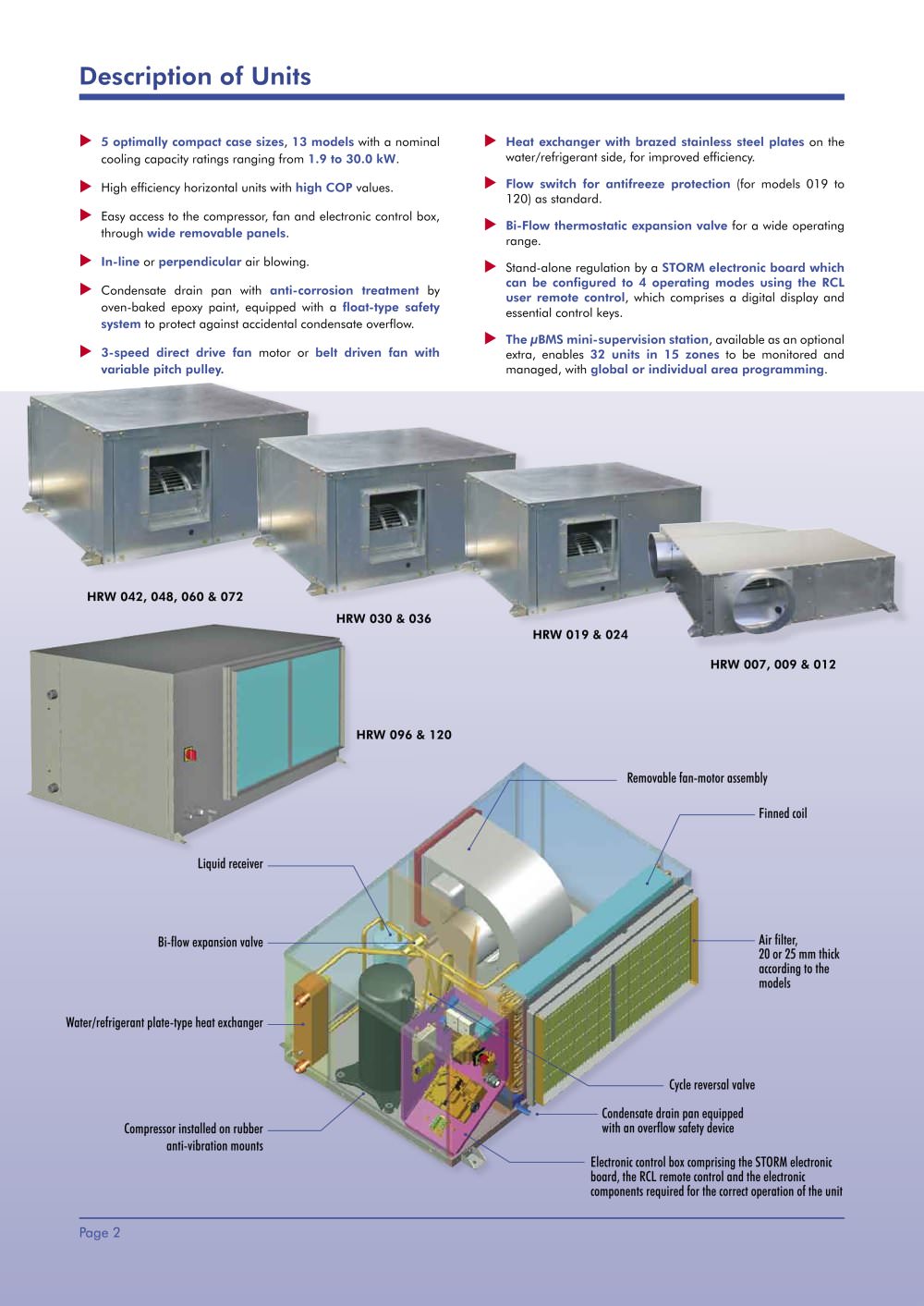

| Description of Units | |||||||||||||||||
| ► 5 optimally compact case sizes, 13 models with a nominal cooling capacity ratings ranging from 1.9 to 30.0 kW. ► High efficiency horizontal units with high COP values. ► Easy access to the compressor, fan and electronic control box, through wide removable panels. ► In-line or perpendicular air blowing. ► Condensate drain pan with anti-corrosion treatment by oven-baked epoxy paint, equipped with a float-type safety system to protect against accidental condensate overflow. ► 3-speed direct drive fan motor or belt driven fan with variable pitch pulley. | |||||||||||||||||
| ► Heat exchanger with brazed stainless steel plates on the water/refrigerant side, for improved efficiency. ► Flow switch for antifreeze protection (for models 019 to 120) as standard. ► Bi-Flow thermostatic expansion valve for a wide operating range. ► Stand-alone regulation by a STORM electronic board which can be configured to 4 operating modes using the RCL user remote control, which comprises a digital display and essential control keys. ► The pBMS mini-supervision station, available as an optional extra, enables 32 units in 15 zones to be monitored and managed, with global or individual area programming. | |||||||||||||||||
| Air filter, 20 or 25 mm thick according to the models | |||||||||||||||||
| Water/refrigerant plate-type heat exchanger | |||||||||||||||||
| Cycle reversal valve Condensate drain pan equipped with an overflow safety device Electronic control box comprising the STORM electronic board, the RCL remote control and the electronic components required for the correct operation of the unit | |||||||||||||||||
| Compressor installed on rubber anti-vibration mounts | |||||||||||||||||
