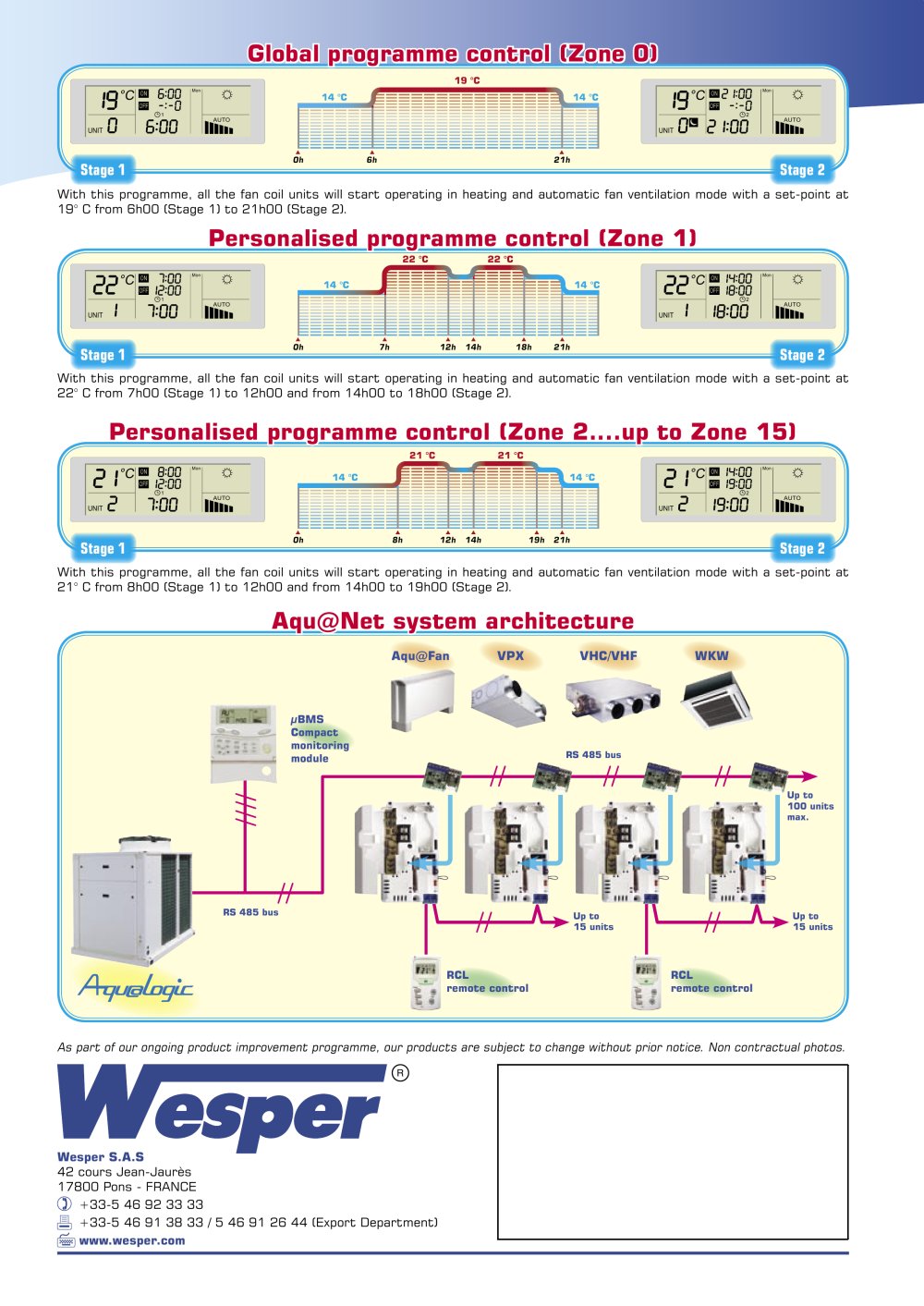

Global programme control (Zone 0)

°C

14 °C19 °C14 °C

°C

Stage 1 Stage 2

With this programme, all the fan coil units will start operating in heating and automatic fan ventilation mode with a set-point at 19° C from 6h00 (Stage 1) to 21h00 (Stage 2).

Personalised programme control (Zone 1)

22 °C14 °C

°C

14 °C22 °C

°C

Stage 1

Stage 2

With this programme, all the fan coil units will start operating in heating and automatic fan ventilation mode with a set-point at 22° C from 7h00 (Stage 1) to 12h00 and from 14h00 to 18h00 (Stage 2).

Personalised programme control (Zone 2....up to Zone 15)

21 °C14 °C

°C

14 °C21 °C

°C

Stage 1

Stage 2

With this programme, all the fan coil units will start operating in heating and automatic fan ventilation mode with a set-point at 21° C from 8h00 (Stage 1) to 12h00 and from 14h00 to 19h00 (Stage 2).

Aqu@Net system architecture

Aqu@Fan VPX VHC/VHF WKW µBMS Compact monitoring module

RS 485 bus RS 485 bus Up to 100 units max. Up to15 unitsUp to15 units

RCLremote control RCL remote control As part of our ongoing product improvement programme, our products are subject to change without prior notice. Non contractual photos.
