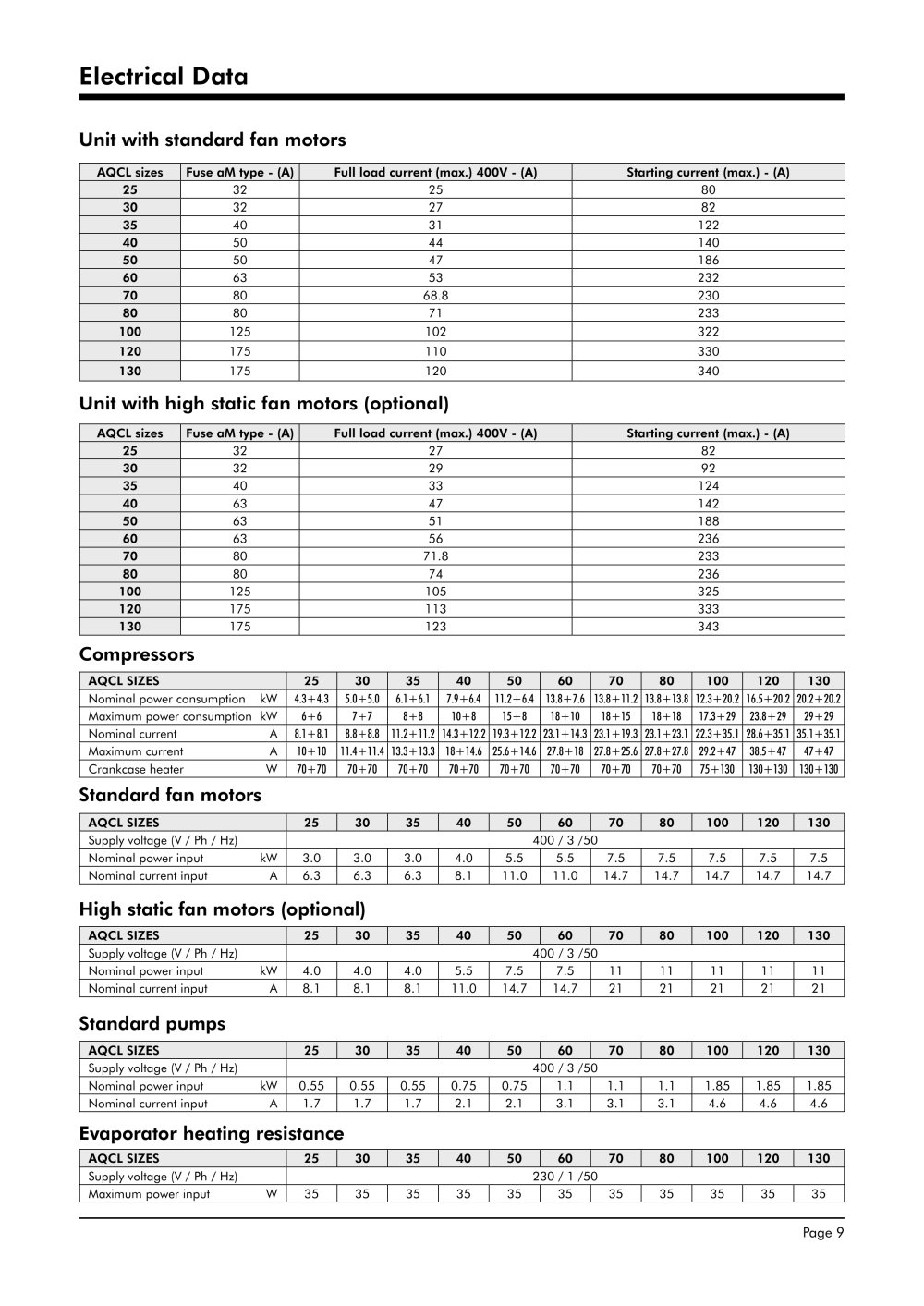

Electrical Data
Unit with standard fan motors
AQCL sizes
Fuse aM type - (A)
Full load current (max.) 400V - (A)
Starting current (max.) - (A)
25
32
25
80
30
32
27
82
35
40
31
122
40
50
44
140
50
50
47
186
60
63
53
232
70
80
68.8
230
80
80
71
233
100
125
102
322
120
175
110
330
130
175
120
340
Unit with high static fan motors (optional)
AQCL sizes
Fuse aM type - (A)
Full load current (max.) 400V - (A)
Starting current (max.) - (A)
25
32
27
82
30
32
29
92
35
40
33
124
40
63
47
142
50
63
51
188
60
63
56
236
70
80
71.8
233
80
80
74
236
100
125
105
325
120
175
113
333
130
175
123
343
Compressors
AQCL SIZES
25
30
35
40
50
60
70
80
100
120
130
Nominal power consumption
kW
4.3+4.3
5.0+5.0
6.1+6.1
7.9+6.4
11.2+6.4
13.8+7.6
13.8+11.2
13.8+13.8
12.3+20.2
16.5+20.2
20.2+20.2
Maximum power consumption
kW
6+6
7+7
8+8
10+8
15+8
18+10
18+15
18+18
17.3+29
23.8+29
29+29
Nominal current
A
8.1+8.1
8.8+8.8
11.2+11.2
14.3+12.2
19.3+12.2
23.1+14.3
23.1+19.3
23.1 +23.1
22.3+35.1
28.6+35.1
35.1 +35.1
Maximum current
A
10+10
11.4+11.4
13.3+13.3
18+14.6
25.6+14.6
27.8+18
27.8+25.6
27.8+27.8
29.2+47
38.5+47
47+47
Crankcase heater
W
70+70
70+70
70+70
70+70
70+70
70+70
70+70
70+70
75 + 130
130+130
130+130
Standard fan motors
AQCL SIZES
25
30
35
40
50
60
70
80
100
120
130
Supply voltage (V / Ph / Hz)
400 / 3 /50
Nominal power input
kW
3.0
3.0
3.0
4.0
5.5
5.5
7.5
7.5
7.5
7.5
7.5
Nominal current input
A
6.3
6.3
6.3
8.1
11.0
11.0
14.7
14.7
14.7
14.7
14.7
High static fan motors (optional)
AQCL SIZES
25
30
35
40
50
60
70
80
100
120
130
Supply voltage (V / Ph / Hz)
400 / 3 /50
Nominal power input
kW
4.0
4.0
4.0
5.5
7.5
7.5
11
11
11
11
11
Nominal current input
A
8.1
8.1
8.1
11.0
14.7
14.7
21
21
21
21
21
Standard pumps
AQCL SIZES
25
30
35
40
50
60
70
80
100
120
130
Supply voltage (V / Ph / Hz)
400 / 3 /50
Nominal power input
kW
0.55
0.55
0.55
0.75
0.75
1.1
1.1
1.1
1.85
1.85
1.85
Nominal current input
A
1.7
1.7
1.7
2.1
2.1
3.1
3.1
3.1
4.6
4.6
4.6
Evaporator heating resistance
AQCL SIZES
25 30 35 40 50 60 70 80 100 120 130
Supply voltage (V / Ph / Hz)
230 / 1 /50
Maximum power input W
35 35 35 35 35
35
35
35 1 35 1 35 1 35
