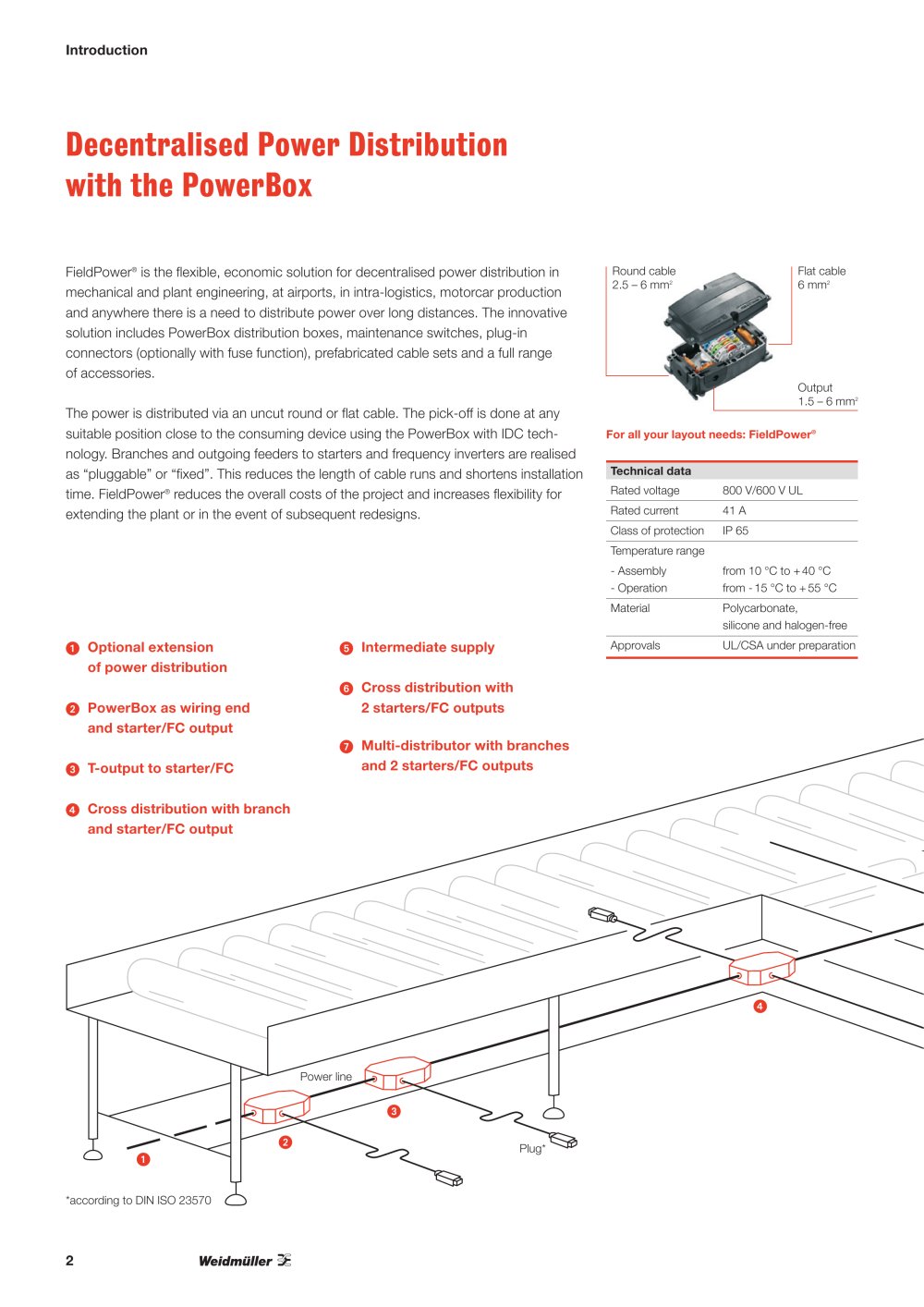

FIELDPOWER® - Weidmüller - #2

Round cable 2.5 - 6 mm²

Flat cable 6 mm²

FieldPower® is the flexible, economic solution for decentralised power distribution in mechanical and plant engineering, at airports, in intra-logistics, motorcar production and anywhere there is a need to distribute power over long distances. The innovative solution includes PowerBox distribution boxes, maintenance switches, plug-in connectors (optionally with fuse function), prefabricated cable sets and a full range of accessories.

The power is distributed via an uncut round or flat cable. The pick-off is done at any suitable position close to the consuming device using the PowerBox with IDC tech­nology. Branches and outgoing feeders to starters and frequency inverters are realised as "pluggable" or "fixed". This reduces the length of cable runs and shortens installation time. FieldPower® reduces the overall costs of the project and increases flexibility for extending the plant or in the event of subsequent redesigns.

Output 1.5 - 6 mm²

Q Optional extension of power distribution

0 T-output to starter/FC

0 Intermediate supply

0 Cross distribution with 2 starters/FC outputs

0 Multi-distributor with branches and 2 starters/FC outputs

0 Cross distribution with branch and starter/FC output

'according to DIN ISO 23570
