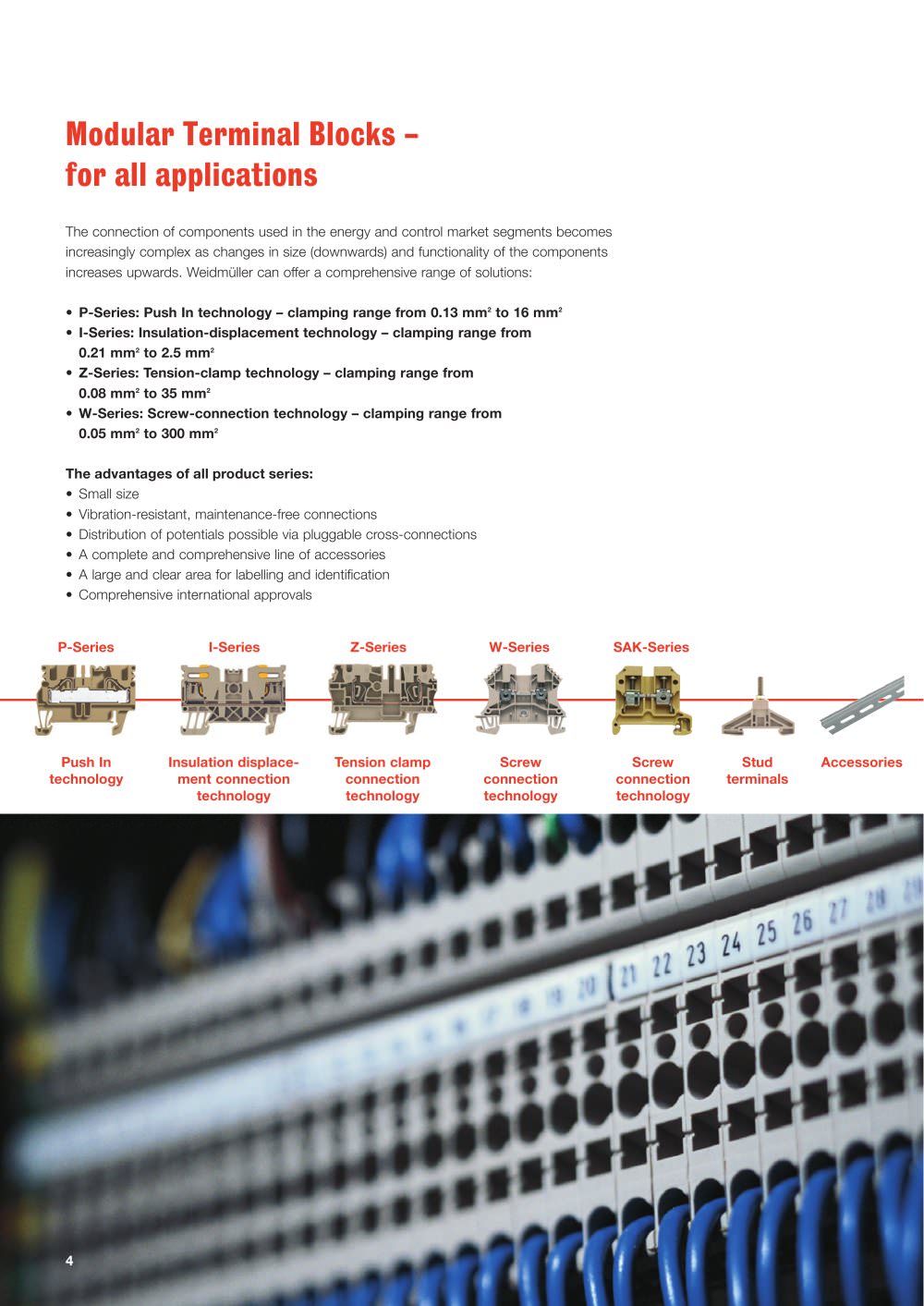

Modular Terminal blocks -for all applications

The connection of components used in the energy and control market segments becomes increasingly complex as changes in size (downwards) and functionality of the components increases upwards. Weidmüller can offer a comprehensive range of solutions:

• P-Series: Push In technology - clamping range from 0.13 mm² to 16 mm²

• I-Series: Insulation-displacement technology - clamping range from 0.21 mm² to 2.5 mm²

• Z-Series: Tension-clamp technology - clamping range from 0.08 mm² to 35 mm²

• W-Series: Screw-connection technology - clamping range from 0.05 mm² to 300 mm²

The advantages of all product series:

• Small size

• Vibration-resistant, maintenance-free connections

• Distribution of potentials possible via pluggable cross-connections

• A complete and comprehensive line of accessories

• A large and clear area for labelling and identification

• Comprehensive international approvals

P-Series

I-Series

Z-Series

W-Series

SAK-Series

Push In Insulation displace- Tension clamp Screw Screw Stud Accessories

technology ment connection connection connection connection terminals

technology technology technology technology
