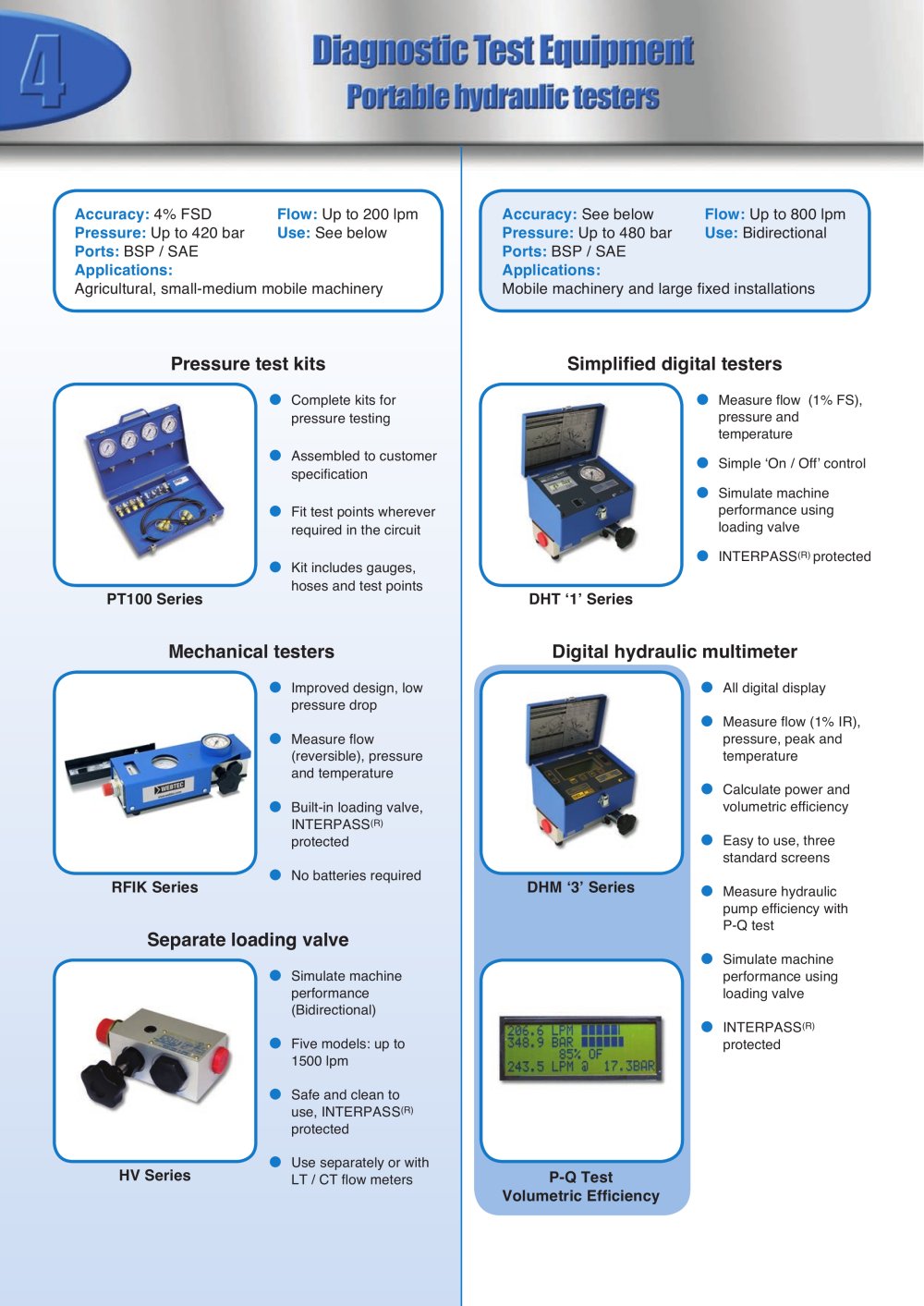

Separate loading valve l Complete kits for pressure testing l Assembled to customer specification l Fit test points wherever required in the circuit l Kit includes gauges, hoses and test points l Improved design, low pressure drop l Measure flow (reversible), pressure and temperature l Built-in loading valve, INTERPASS protected l No batteries required l Simulate machine performance (Bidirectional) l Five models: up to 1500 lpm l Safe and clean to use, INTERPASS protected l Use separately or with LT / CT flow meters PT100 Series RFIK Series Digital hydraulic multimeter l Measure flow (1% FS), pressure and temperature l Simple ‘On / Off’ control l Simulate machine performance using loading valve l INTERPASS protected HV Series DHT ‘1’ Series DHM ‘3’ Series P-Q Test Volumetric Efficiency l All digital display l Measure flow (1% IR), pressure, peak and temperature l Calculate power and volumetric efficiency l Easy to use, three standard screens l Measure hydraulic pump efficiency with P-Q test l Simulate machine performance using loading valve l INTERPASS protected Accuracy: 4% FSD Flow: Up to 200 lpm Pressure: Up to 420 bar Use: See below Ports: BSP / SAE Applications: Agricultural, small-medium mobile machinery Accuracy: See below Flow: Up to 800 lpm Pressure: Up to 480 bar Use: Bidirectional Ports: BSP / SAE Applications: Mobile machinery and large fixed installations Pressure test kits Simplified digital testers Mechanical testers
