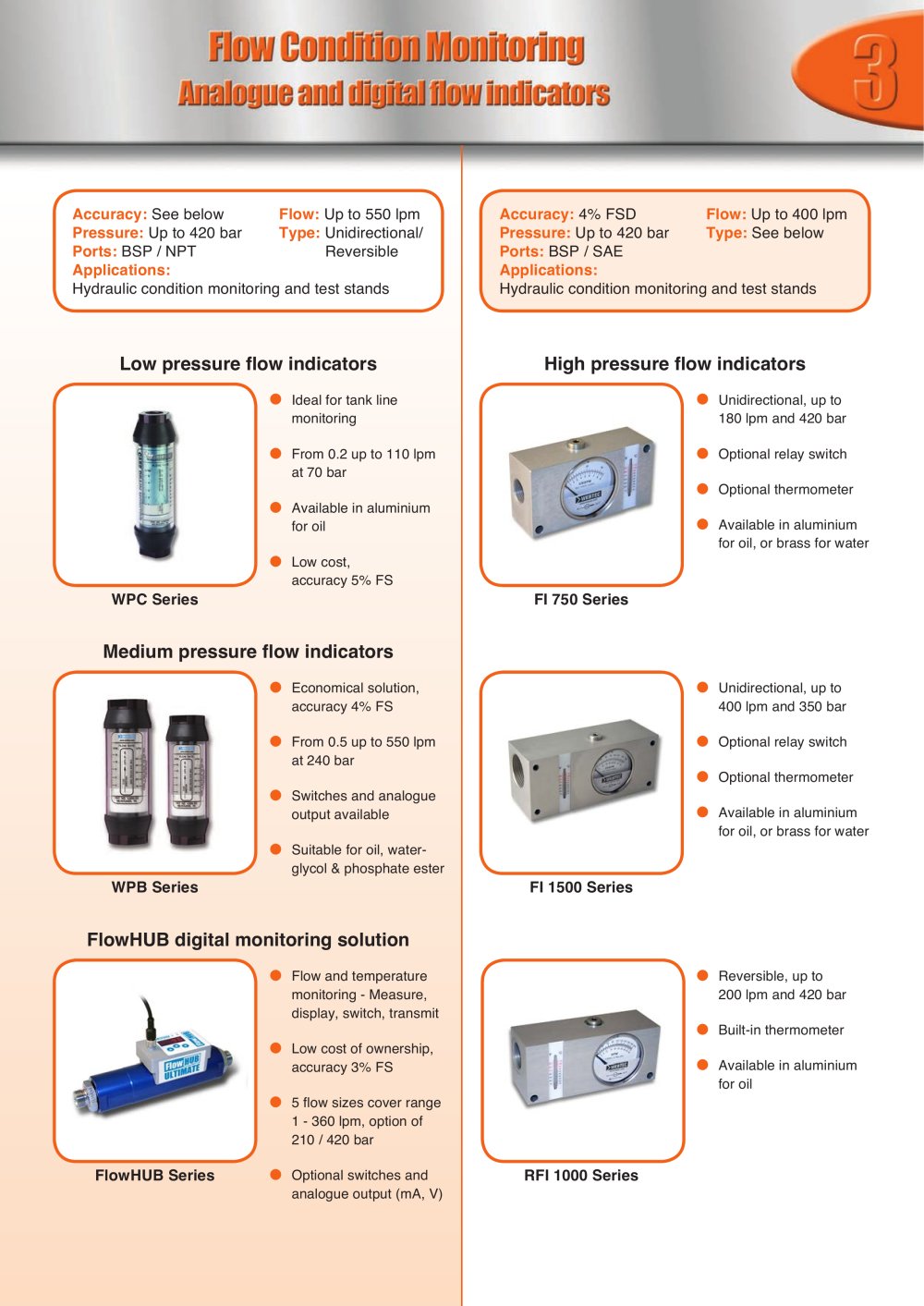

Accuracy: See below Flow: Up to 550 lpm Pressure: Up to 420 bar Type: Unidirectional/ Ports: BSP / NPT Reversible Applications: Hydraulic condition monitoring and test stands Accuracy: 4% FSD Flow: Up to 400 lpm Pressure: Up to 420 bar Type: See below Ports: BSP / SAE Applications: Hydraulic condition monitoring and test stands l Flow and temperature monitoring - Measure, display, switch, transmit l Low cost of ownership, accuracy 3% FS l 5 flow sizes cover range 1 - 360 lpm, option of 210 / 420 bar l Optional switches and analogue output (mA, V) FlowHUB digital monitoring solution Low pressure flow indicators High pressure flow indicators Medium pressure flow indicators FlowHUB Series l Unidirectional, up to 180 lpm and 420 bar l Optional relay switch l Optional thermometer l Available in aluminium for oil, or brass for water l Unidirectional, up to 400 lpm and 350 bar l Optional relay switch l Optional thermometer l Available in aluminium for oil, or brass for water l Reversible, up to 200 lpm and 420 bar l Built-in thermometer l Available in aluminium for oil WPC Series FI 750 Series WPB Series FI 1500 Series RFI 1000 Series l Ideal for tank line monitoring l From 0.2 up to 110 lpm at 70 bar l Available in aluminium for oil l Low cost, accuracy 5% FS l Economical solution, accuracy 4% FS l From 0.5 up to 550 lpm at 240 bar l Switches and analogue output available l Suitable for oil, waterglycol & phosphate ester
