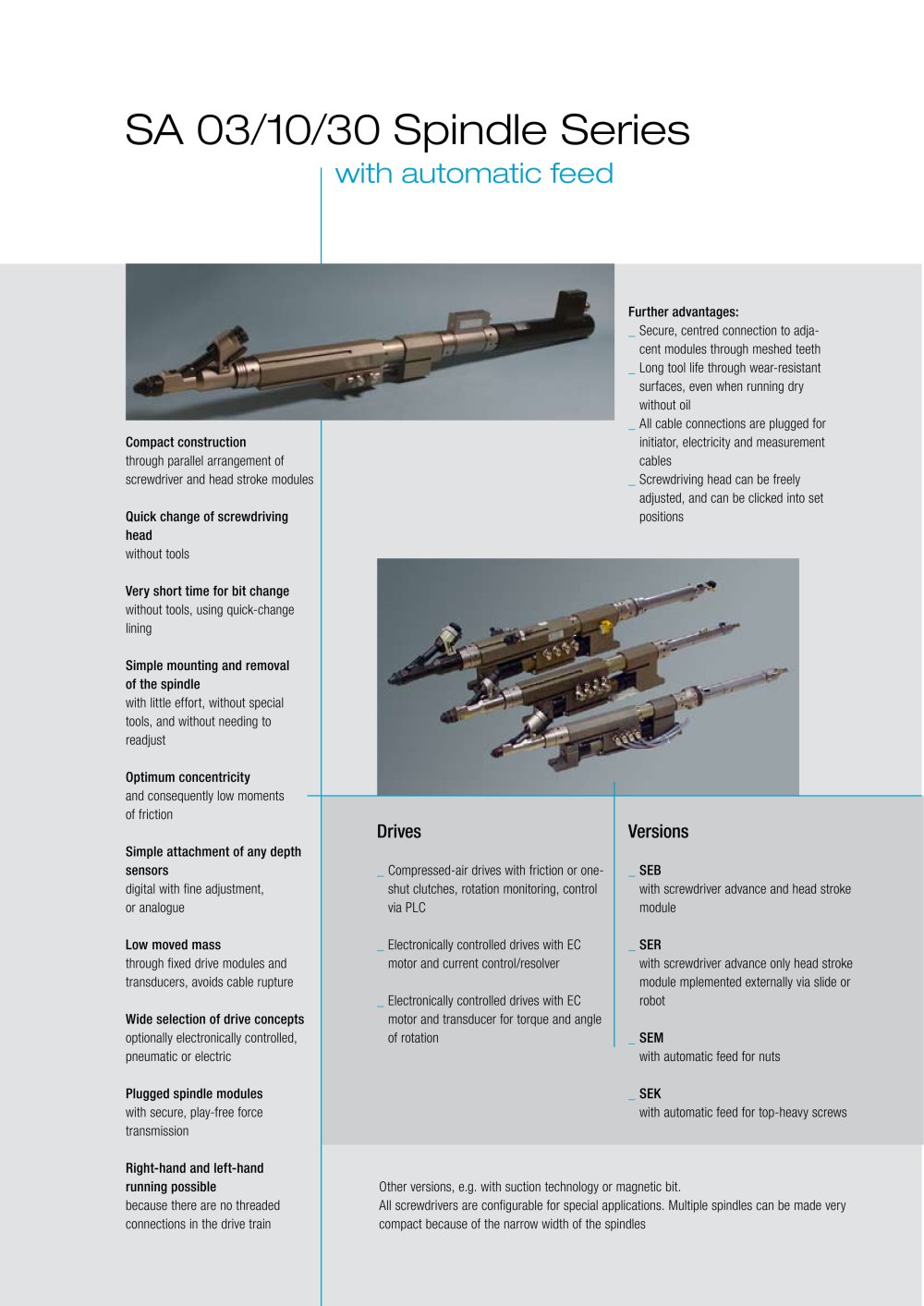

SA 03/10/30 Spindle Series

with automatic feed

Further advantages: _ Secure, centred connection to adja-cent modules through meshed teeth _ Long tool life through wear-resistant surfaces, even when running dry without oil Compact construction through parallel arrangement of screwdriver and head stroke modules _ All cable connections are plugged for initiator, electricity and measurement cables Quick change of screwdriving head without tools Very short time for bit change _ Screwdriving head can be freely adjusted, and can be clicked into set positions without tools, using quick-change lining Simple mounting and removal of the spindle with little effort, without special tools, and without needing to readjust Optimum concentricity and consequently low moments of friction Simple attachment of any depth sensors digital with fine adjustment, or analogue Low moved mass through fixed drive modules and transducers, avoids cable rupture Wide selection of drive concepts optionally electronically controlled, pneumatic or electric Plugged spindle modules with secure, play-free force transmission Right-hand and left-hand running possible because there are no threaded connections in the drive train

Drives Versions

_ Compressed-air drives with friction or one-shut industrial clutches, rotation monitoring, control via PLC _ SEB with screwdriver advance and head stroke module _ Electronically controlled drives with EC motor and current control/resolver _ SER with screwdriver advance only head stroke module mplemented externally via slide or robot _ Electronically controlled drives with EC motor and transducer for torque and angle of rotation _ SEM with automatic feed for nuts _ SEK with automatic feed for top-heavy screws Other versions, e.g. with suction technology or magnetic bit.All screwdrivers are configurable for special applications. Multiple spindles can be made very compact because of the narrow width of the spindles
