Easy removal Only a few screws have to be loosened to remove the spindle components. The components are fitted together in such a way that the few wear parts are all easily acces- sible and exchangeable.

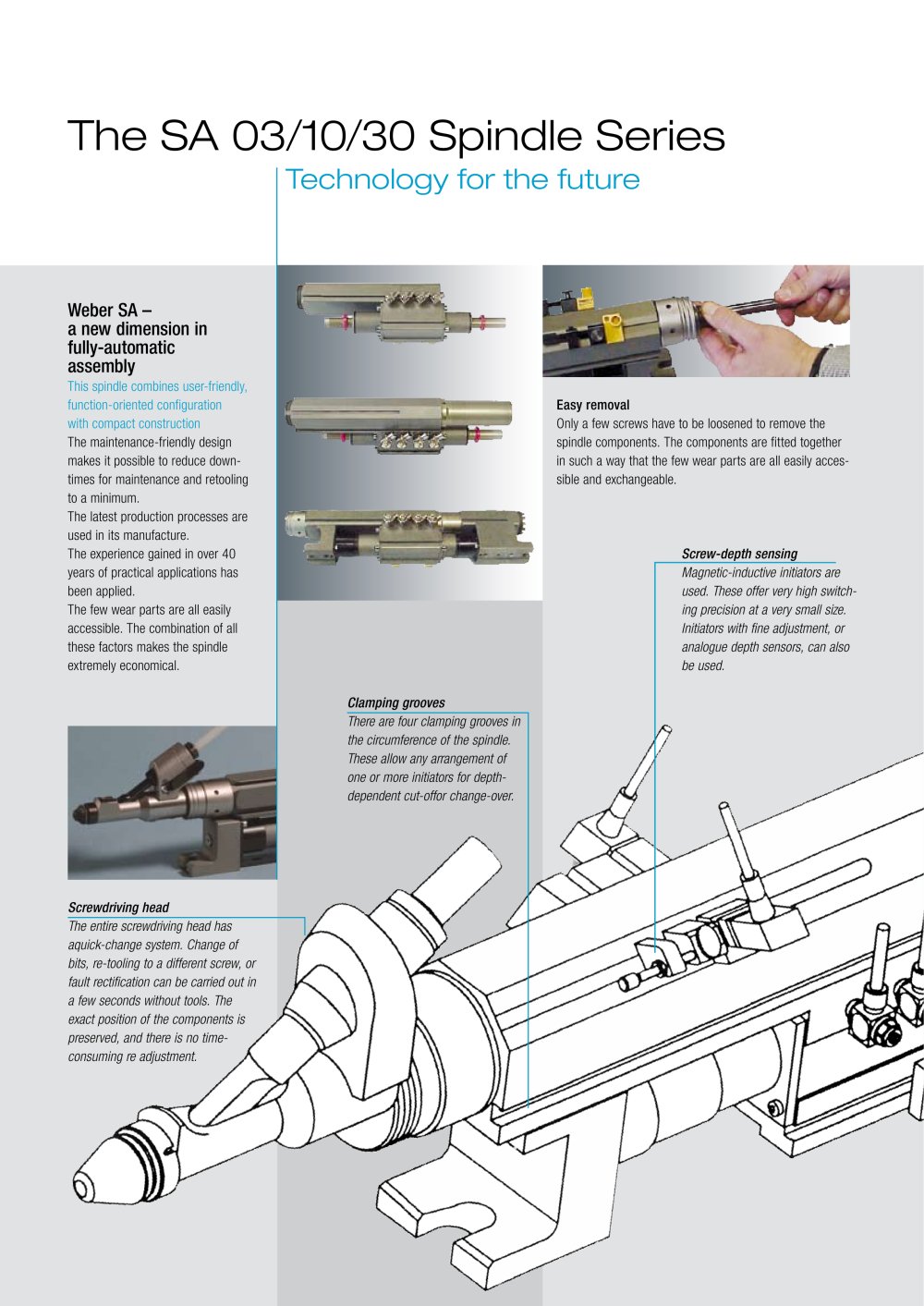

The SA 03/10/30 Spindle Series

Technology for the future

Clamping grooves There are four clamping grooves in the circumference of the spindle. These allow any arrangement of one or more initiators for depth- dependent cut-offor change-over. Screw-depth sensing

Weber SA –a new dimension in fully-automatic assembly

Magnetic-inductive initiators are used. These offer very high switch- ing precision at a very small size. Initiators with fine adjustment, or analogue depth sensors, can also be used. This spindle combines user-friendly, function-oriented configuration with compact construction The maintenance-friendly design makes it possible to reduce down- times for maintenance and retooling to a minimum. The latest production processes are used in its manufacture. The experience gained in over 40 years of practical applications has been applied. The few wear parts are all easily accessible. The combination of all these factors makes the spindle extremely economical. Screwdriving head The entire screwdriving head has aquick-change system. Change of bits, re-tooling to a different screw, or fault rectification can be carried out in a few seconds without tools. The exact position of the components is preserved, and there is no time- consuming re adjustment.
