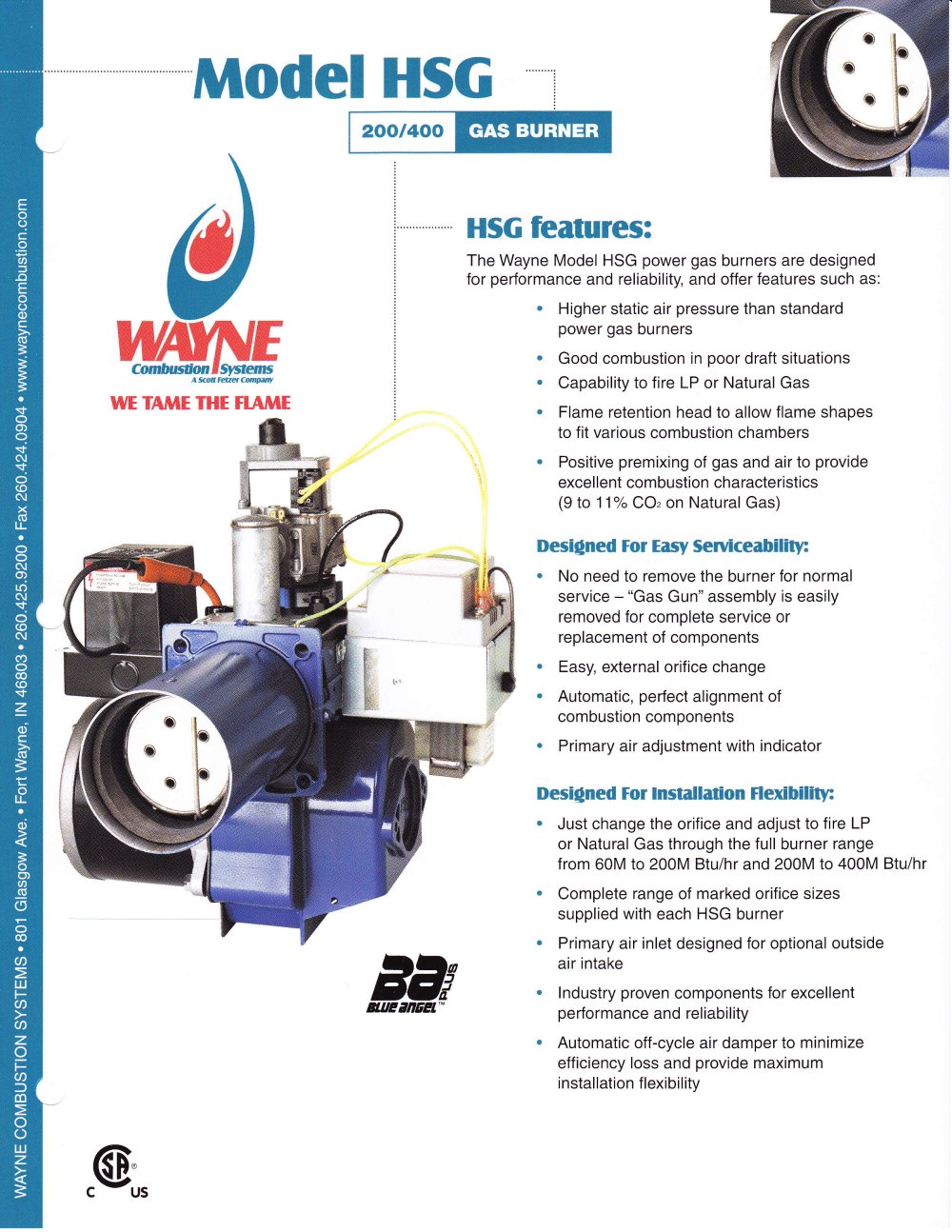

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:11.00pt "Arial Black", sans-serif; } .font1 { font:4.00pt "Trebuchet MS", sans-serif; } .font2 { font:5.00pt "Trebuchet MS", sans-serif; } .font3 { font:9.00pt "Trebuchet MS", sans-serif; } .font4 { font:10.00pt "Trebuchet MS", sans-serif; } .font5 { font:11.00pt "Trebuchet MS", sans-serif; } .font6 { font:12.00pt "Trebuchet MS", sans-serif; } .font7 { font:38.00pt "Trebuchet MS", sans-serif; } Model HSG 200/400 GAS BORNER The Wayne Model HSG power gas burners are designed for performance and reliability, and offer features such as: • Higher static air pressure than standard power gas burners • Good combustion in poor draft situations • Capability to fire LP or Natural Gas • Flame rétention head to allow flame shapes to fit various combustion chambers Combustion ËSY§mm§ A Sam »w £&m%m$y WE TAME THE FLAME Bwesmem • Positive premixing of gas and air to provide excellent combustion characteristics (9 to 11 % CO2 on Natural Gas) Designed For Easy Servlceabilhy: • No need to remove the burner for normal service - "Gas Gun" assembly is easily removed for complète service or replacement of components • Easy, external orifice change « Automatic, perfect alignment of combustion components • Primary air adjustment with indicator Designed For installation Flexibiiity: • Just change the orifice and adjust to fire LP or Natural Gas through the full burner range from 60M to 200M Btu/hr and 200M to 400M Btu/hr • Complète range of marked orifice sizes supplied with each HSG burner » Primary air inlet designed for optional outside air intake • Industry proven components for excellent performance and reliability • Automatic off-cycle air damper to minimize efficiency loss and provide maximum installation flexibiiity C us
