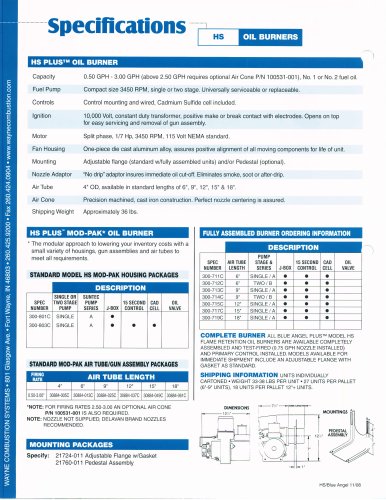

HS Blue Angel Oil Powered Burner - 2 / 2 Pages

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:11.00pt "Arial", sans-serif; } .font7 { font:18.00pt "Arial", sans-serif; } .font8 { font:19.00pt "Arial", sans-serif; } .font9 { font:24.00pt "Arial", sans-serif; } .font10 { font:28.00pt "Arial", sans-serif; } .font11 { font:36.00pt "Arial", sans-serif; } .font12 { font:7.00pt "Arial Black", sans-serif; } .font13 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font14 { font:12.00pt "Sylfaen", serif; } .font15 { font:19.00pt "Sylfaen", serif; } Spcifications HS OIL BURNERS HS PLUS OIL BURNER Capacity 0.50 GPH - 3.00 GPH (above 2.50 GPH requires optional Air Cone P/N 100531-001), No. 1 or No. 2 fuel oil. Fuel Pump Compact size 3450 RPM, single or two stage. Universally serviceable or replaceable. Controls Control mounting and wired, Cadmium Sulfide cell included. Ignition 10,000 Volt, constant duty transformer, positive make or break contact with 险lectrodes. Opens on top for easy servicing and removal of gun assembly. Motor Split phase, 1/7 Hp, 3450 RPM, 115 Volt NEMA standard. Fan Housing One-piece die cast aluminum alloy, assures positive alignment of ail moving components for life of unit. Mounting Adjustable flange (standard w/fully assembled units) and/or Pedestal (optional). Nozzle Adaptor "No drip" adaptor insures immdiate oil cut-off. Elimintes smoke, soot or after-drip. Air Tube 4" OD, available in standard lengths of 6", 9", 12", 15" & 18". Air Cone Pr颩cision machined, cast iron construction. Perfect nozzle centering is assured. Shipping Weight Approximately 36 Ibs. HS PLUS" MOD-PAK* OIL BURNER FULLY ASSEMBLED BURNER ORDERING INFORMATION * The modular approach to lowering your inventory costs with a small variety of housings, gun assemblies and air tubes to meet ail requirements. STANDARD MODEL HS MOD-PAK HOUSING PACKAGES DESCRIPTION SPEC NUMBER AIR TUBE LENGTH PUMP STAGE & SERIES J-B0X 15 SECOND CONTROL CAD CELL OIL VALVE 300-711C 6" SINGLE/A Օ 300-712C 6" TWO/B Օ Օ 300-713C 9" SINGLE/A Օ 300-714C 9" TWO/B Օ Օ 300-715C 12" SINGLE/A Օ 300-717C 15" SINGLE/A Օ Օ 300-719C 00 SINGLE/A Օ DESCRIPTION SINGLE 0R SUNTEC SPEC TWO STAGE PUMP 15 SECOND CAD OIL NUMBER PUMP SERIES J-B0X CONTROL CELL VALVE 300-801C SINGLE A Օ 300-803C SINGLE A Օ COMPLETE BURNER ALL BLUE ANGEL PLUSՙ MODEL HS FLAME RETENTION OIL BURNERS ARE AVAILABLE COMPLETELY ASSEMBLED AND TEST-FIRED (0.75 GPH NOZZLE INSTALLED) AND PRIMARY CONTROL INSTALLED. MODELS AVAILABLE FOR IMMEDIATE SHIPMENT INCLUDE AN ADJUSTABLE FLANGE WITH GASKET AS STANDARD. SHIPPING INFORMATION UNITS INDIVIDUALLY CARTONED WEIGHT 33-38 LBS PER UNIT Օ 27 UNITS PER PALLET (6"-9" UNITS), 18 UNITS PER PALLET 12"+ UNITS. STANDARD MOD-PAK AIR TUBE/GUN ASSEMBLY PACKAGES I AIR TUBE LENGTH 4" 6" 9" 12" 15" 18" 0.50-3.00* 30884-005C 30884-013C 30884-025C 30884-037C 30884-049C 30884-061C NOTE: FOR FIRING RATES 2.50-3.00 AN OPTIONAL AIR CONE P/N 100531-001 IS ALSO REQUIRED. NOTE: NOZZLE NOT SUPPLIED, DELAVAN BRAND NOZZLES RECOMMENDED. DIMENSIONS -12'/."-~* TUBE LENGTH r, fi-h I -, ° M \ V Jm \ »՗ _ 7" ! ■ MOUNTINGS 4? PEDESTAL MOUNTING PACKAGES Specify: 21724-011 Adjustable Flange w/Gasket 21760-011 Pedestal Assembly HS/Blue Angel 11/08

HS Blue Angel Oil Powered Burner
  1. P. 1

    table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif;...
  2. P. 2
