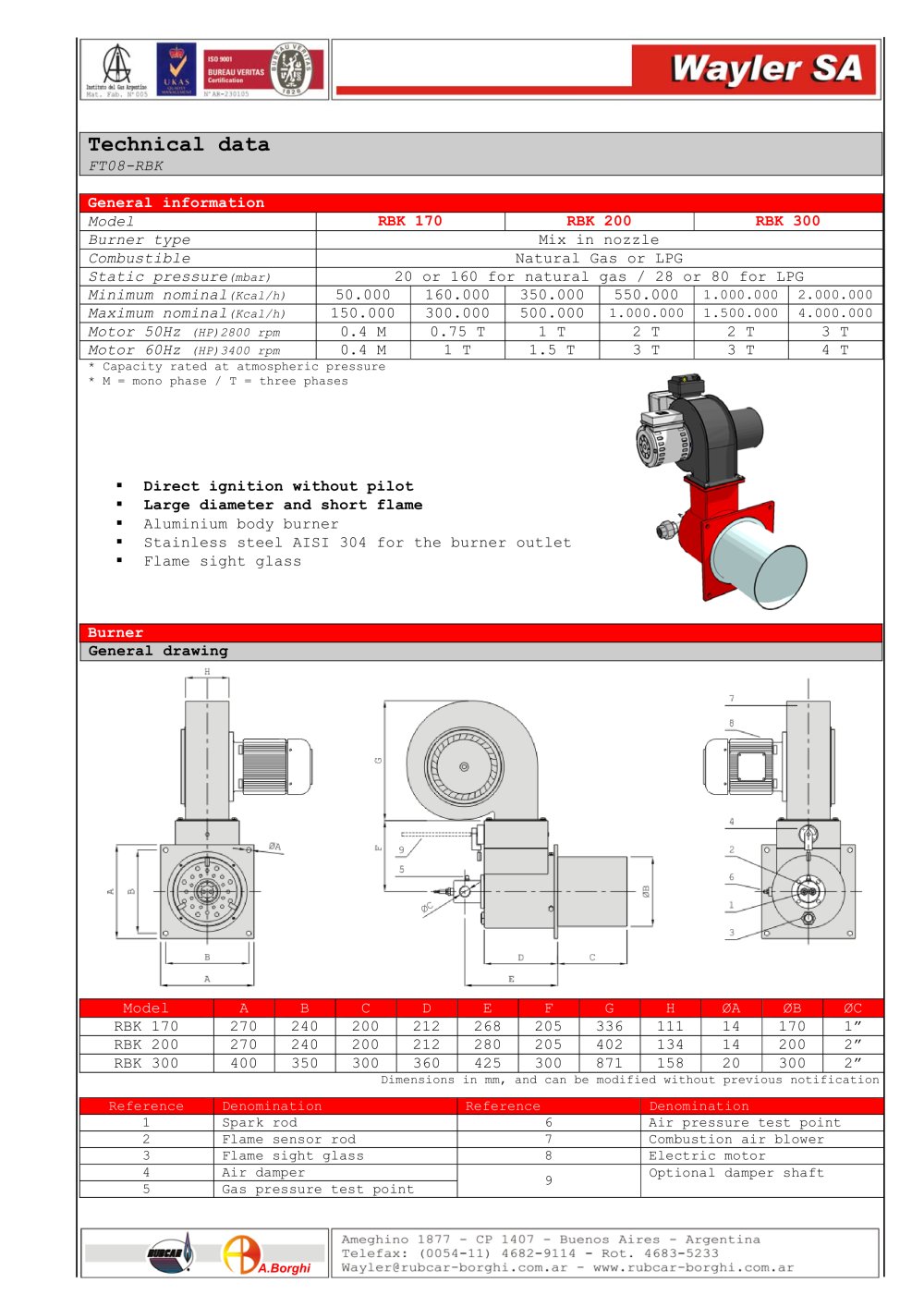

Technical data

FT08-RBK General information Model RBK 170RBK 200RBK 300 Burner type Mix in nozzle Combustible Natural Gas or LPG Static pressure
(mbar) 20 or 160 for natural gas / 28 or 80 for LPG Minimum nominal
(Kcal/h) 50.000 160.000 350.000 550.000
1.000.000 2.000.000 Maximum nominal
(Kcal/h) 150.000 300.000 500.000
1.000.000 1.500.000 4.000.000 Motor 50Hz
(HP)2800 rpm 0.4 M 0.75 T 1 T 2 T 2 T 3 T Motor 60Hz
(HP)3400 rpm 0.4 M 1 T 1.5 T 3 T 3 T 4 T
* Capacity rated at atmospheric pressure * M = mono phase / T = three phases Direct ignition without pilot Large diameter and short flame Aluminium body burner Stainless steel AISI 304 for the burner outlet Flame sight glass Burner General drawing Model A B C D E F G H ØA ØB ØC RBK 170 270 240 200 212 268 205 336 111 14 170 1” RBK 200 270 240 200 212 280 205 402 134 14 200 2” RBK 300 400 350 300 360 425 300 871 158 20 300 2”
Dimensions in mm, and can be modified without previous notification Reference Denomination Reference Denomination 1 Spark rod 6 Air pressure test point 2 Flame sensor rod 7 Combustion air blower 3 Flame sight glass 8 Electric motor 4 Air damper 9Optional damper shaft 5 Gas pressure test point A.Borghi
