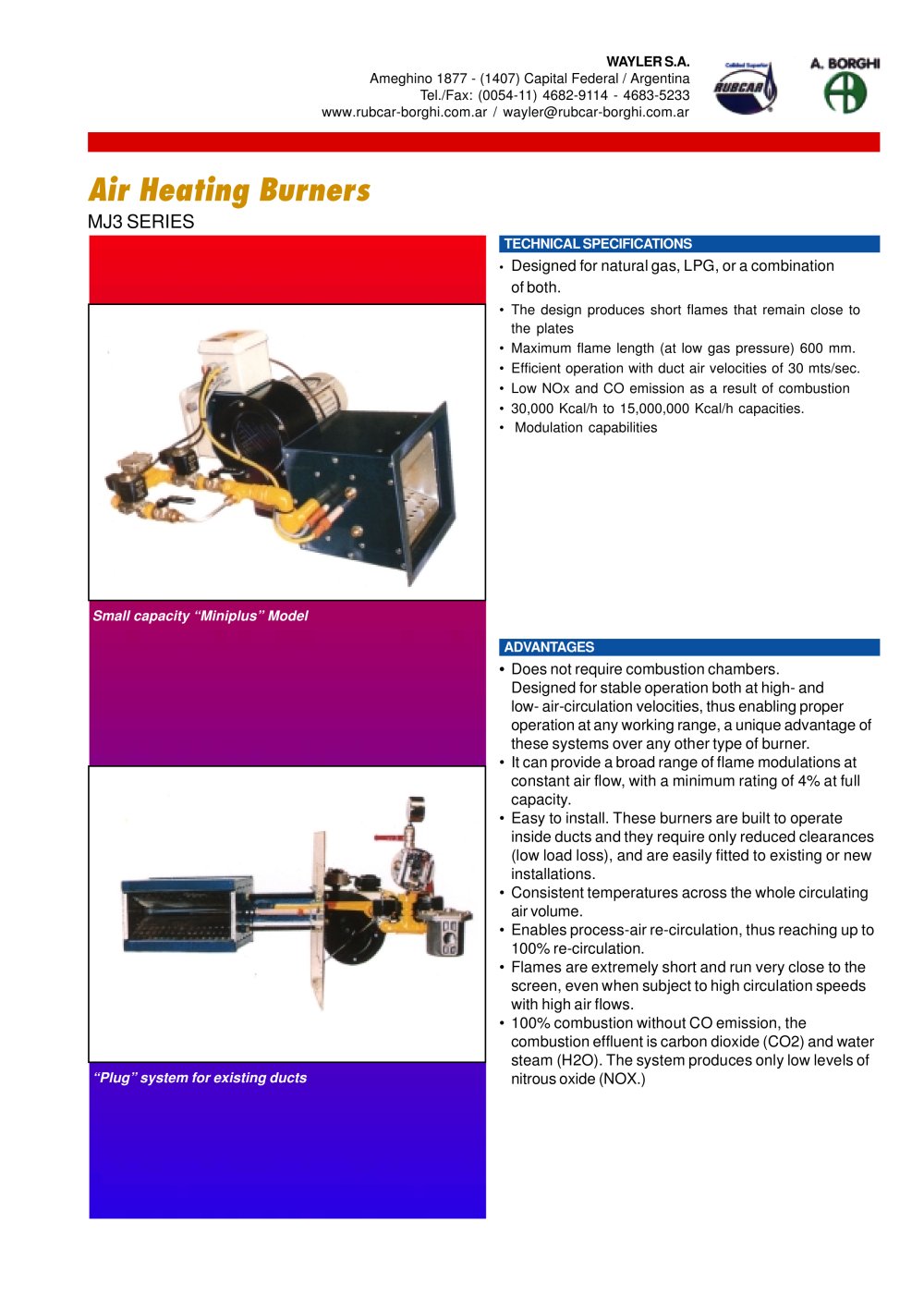

Air heating burners/MJ3 Series - Wayler - #1

Ameghino 1877 - (1407) Capital Federal / Argentina Tel./Fax: (0054-11) 4682-9114 - 4683-5233 www.rubcar-borghi.com.ar / wayler@rubcar-borghi.com.ar

MJ3 SERIES

• Designed for natural gas, LPG, or a combination of both.

• The design produces short flames that remain close to the plates

• Maximum flame length (at low gas pressure) 600 mm.

• Efficient operation with duct air velocities of 30 mts/sec.

• Low NOx and CO emission as a result of combustion

• 30,000 Kcal/h to 15,000,000 Kcal/h capacities.

• Modulation capabilities

• Does not require combustion chambers. Designed for stable operation both at high- and low- air-circulation velocities, thus enabling proper operation at any working range, a unique advantage of these systems over any other type of burner.

• It can provide a broad range of flame modulations at constant air flow, with a minimum rating of 4% at full capacity.

• Easy to install. These burners are built to operate inside ducts and they require only reduced clearances (low load loss), and are easily fitted to existing or new installations.

• Consistent temperatures across the whole circulating air volume.

• Enables process-air re-circulation, thus reaching up to 100% re-circulation.

• Flames are extremely short and run very close to the screen, even when subject to high circulation speeds with high air flows.

• 100% combustion without CO emission, the combustion effluent is carbon dioxide (CO2) and water steam (H2O). The system produces only low levels of nitrous oxide (NOX.)
