Telephone +32 (0) 9 225 94 57 =ax: +32 (0) 9 233 06 49 Email info@watson-marlow.be www.watson-marlow.be

Telephone +55 (11) 2155 4000

=ax: +55 (11) 2155 4008

Telephone +86 21 6485 4898

Fax: +86 21 6485 7366

Telephone +45 43 94 00 65 Fax: +45 43 94 00 85

Telephone +33 (0) 1 34 87 12 12 Fax: +33 (0) 1 34 87 12 13

Telephone +49 (0) 2183 42040 Fax: +49 (0) 2183 82592

Telephone +39 03 06871184 Fax: +39 030 6871352 Email info@watson-marlow.it www.watson-marlow.it

Telephone +82 (0) 32 820 3973 Fax: +82 (0) 32 811 0321

Telephone +60 (3) 5635 3323 Fax: +60 (3) 5635 7717

Telephone +31 (0) 10 462 1688

Fax: +31 (0) 10 462 3486

Telephone +27 11 796 2960 Fax: +27 11 794 1250

Telephone +46 8 556 556 00 Fax: +46 8 556 556 19

Telephone 800 282 8823 Fax: +1 978 658 0041

The information contained in this document is believed to be correct, but Watson-Marlow Bredel accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

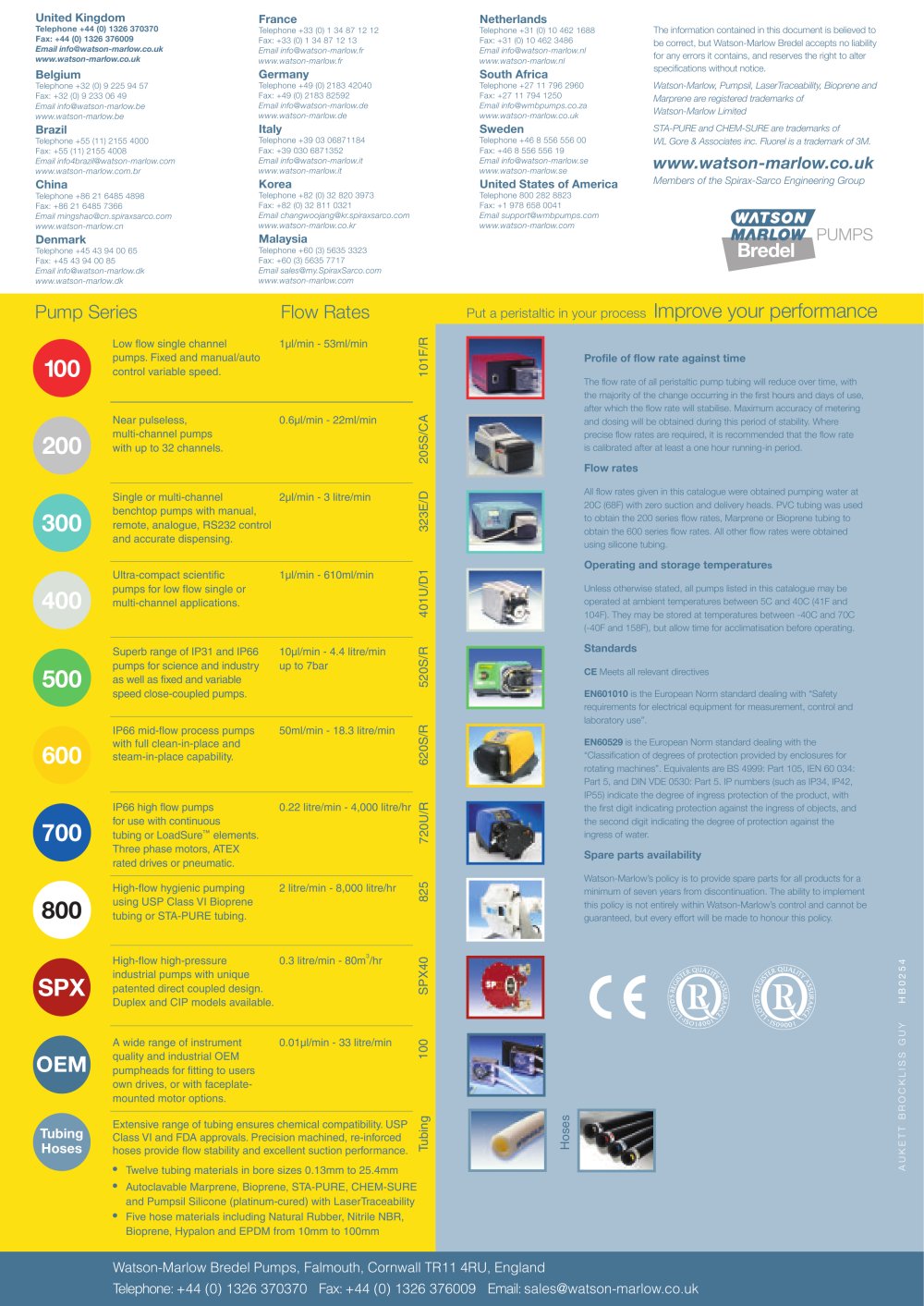

PUMPS

Put a peristaltic in your process Improve your performance

Pump Series

Flow Rates

Low flow single channel pumps. Fixed and manual/auto control variable speed.

1ul/min-53ml/min

The flow rate of all peristaltic pump tubing will reduce over time, with the majority of the change occurring in the first hours and days of use, after which the flow rate will stabilise. Maximum accuracy of metering and dosing will be obtained during this period of stability. Where precise flow rates are required, it is recommended that the flow rate is calibrated after at least a one hour running-in period.

All flow rates given in this catalogue were obtained pumping water at 20C (68F) with zero suction and delivery heads. PVC tubing was used to obtain the 200 series flow rates, Marprene or Bioprene tubing to obtain the 600 series flow rates. All other flow rates were obtained using silicone tubing.

Unless otherwise stated, all pumps listed in this catalogue may be operated at ambient temperatures between 5C and 40C (41F and 104F). They may be stored at temperatures between -40C and 70C (-40F and 158F), but allow time for acclimatisation before operating.

CE Meets all relevant directives

EN601010 is the European Norm standard dealing with "Safety requirements for electrical equipment for measurement, control and laboratory use".

EN60529 is the European Norm standard dealing with the "Classification of degrees of protection provided by enclosures for rotating machines". Equivalents are BS 4999: Part 105, IEN 60 034: Part 5, and DIN VDE 0530: Part 5. IP numbers (such as IP34, IP42, IP55) indicate the degree of ingress protection of the product, with the first digit indicating protection against the ingress of objects, and the second digit indicating the degree of protection against the ingress of water.

Watson-Marlow's policy is to provide spare parts for all products for a minimum of seven years from discontinuation. The ability to implement this policy is not entirely within Watson-Marlow's control and cannot be guaranteed, but every effort will be made to honour this policy.

Near pulseless, multi-channel pumps with up to 32 channels.

0.6ul/min - 22ml/min

Single or multi-channel benchtop pumps with manual, remote, analogue, RS232 control

and accurate dispensing.

2ul/min - 3 litre/min

Ultra-compact scientific pumps for low flow single or multi-channel applications.

1ul/min - 610ml/min

Superb range of IP31 and IP66 pumps for science and industry

as well as fixed and variable speed close-coupled pumps.

10ul/min-4.4litre/min up to 7bar

IP66 mid-flow process pumps

with full clean-in-place and steam-in-place capability.

50ml/min- 18.3 litre/min

IP66 high flow pumps

for use with continuous

tubing or LoadSure™ elements. Three phase motors, ATEX

rated drives or pneumatic.

0.22 litre/min - 4,000 litre/hr

High-flow hygienic pumping using USP Class VI Bioprene tubing or STA-PURE tubing.

2 litre/min - 8,000 litre/hr

0.3 litre/min - 80m³/hr

High-flow high-pressure industrial pumps with unique patented direct coupled design. Duplex and CIP models available.

A wide range of instrument

quality and industrial OEM

pumpheads for fitting to users own drives, or with faceplate-mounted motor options.

0.01ul/min - 33 litre/min

CO

la ,3

Extensive range of tubing ensures chemical compatibility. USP

Class VI and FDA approvals. Precision machined, re-inforced hoses provide flow stability and excellent suction performance.

• Twelve tubing materials in bore sizes 0.13mm to 25.4mm

• Autoclavable Marprene, Bioprene, STA-PURE, CHEM-SURE and Pumpsil Silicone (platinum-cured) with LaserTraceability

• Five hose materials including Natural Rubber, Nitrile NBR, Bioprene, Hypalon and EPDM from 10mm to 100mm

Watson-Marlow Bredel Pumps, Falmouth, Cornwall TR11 4RU, England

Telephone: +44 (0) 1326 370370 Fax: +44 (0) 1326 376009 Email: sales@watson-marlow.co.uk
