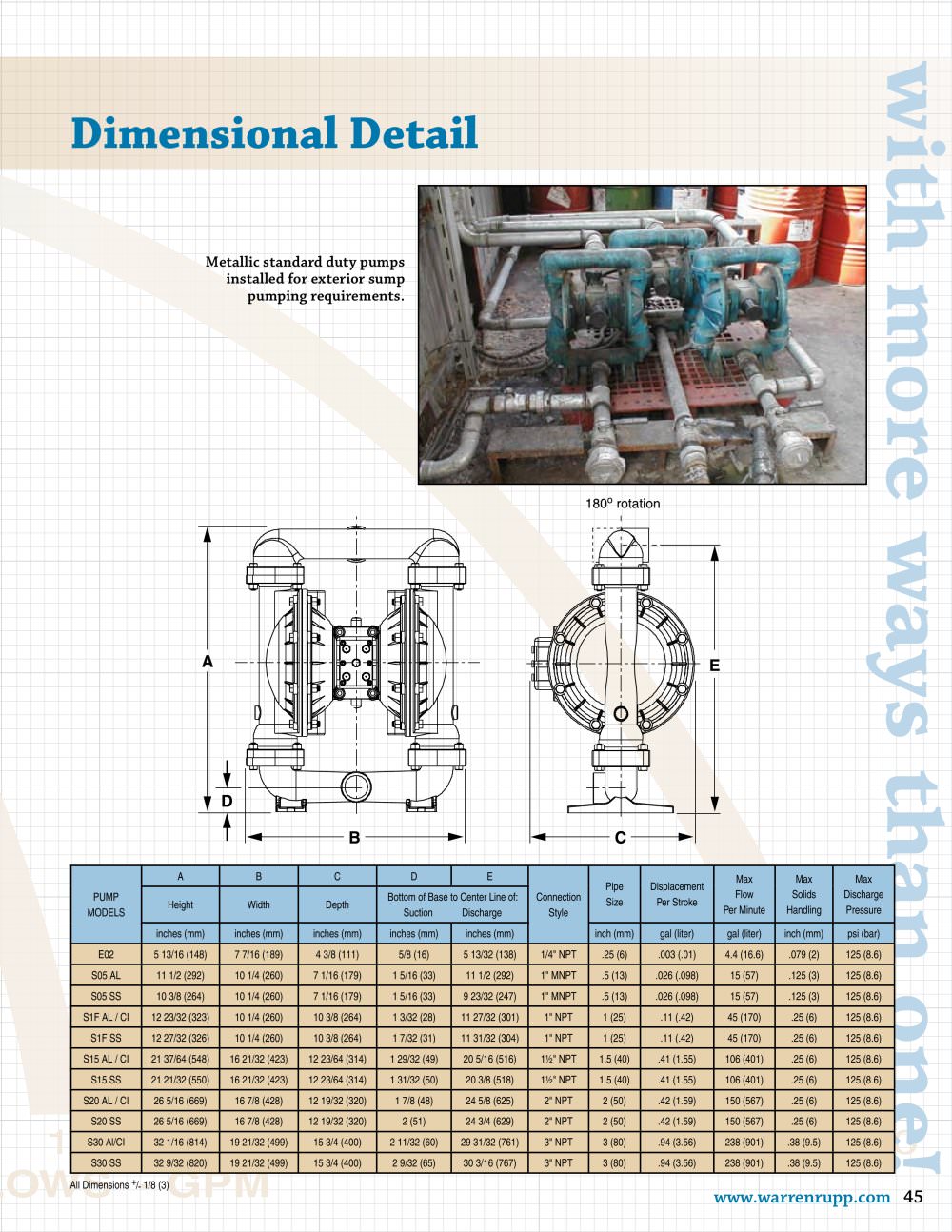

Dimensional Detail

Metallic standard duty pumps installed for exterior sump pumping requirements.

A B C D E Pipe Displacement Max Max Max PUMP Height Width Depth Bottom of Base to Center Line of: Connection Size Per Stroke Flow Solids Discharge MODELS Suction Discharge Style Per Minute Handling Pressure inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inch (mm) gal (liter) gal (liter) inch (mm) psi (bar) E02 5 13/16 (148) 7 7/16 (189) 4 3/8 (111) 5/8 (16) 5 13/32 (138) 1/4" NPT .25 (6) .003 (.01) 4.4 (16.6) .079 (2) 125 (8.6) S05 AL 11 1/2 (292) 10 1/4 (260) 7 1/16 (179) 1 5/16 (33) 11 1/2 (292) 1" MNPT .5 (13) .026 (.098) 15 (57) .125 (3) 125 (8.6) S05 SS 10 3/8 (264) 10 1/4 (260) 7 1/16 (179) 1 5/16 (33) 9 23/32 (247) 1" MNPT .5 (13) .026 (.098) 15 (57) .125 (3) 125 (8.6) S1F AL / CI 12 23/32 (323) 10 1/4 (260) 10 3/8 (264) 1 3/32 (28) 11 27/32 (301) 1" NPT 1 (25) .11 (.42) 45 (170) .25 (6) 125 (8.6) S1F SS 12 27/32 (326) 10 1/4 (260) 10 3/8 (264) 1 7/32 (31) 11 31/32 (304) 1" NPT 1 (25) .11 (.42) 45 (170) .25 (6) 125 (8.6) S15 AL / CI 21 37/64 (548) 16 21/32 (423) 12 23/64 (314) 1 29/32 (49) 20 5/16 (516) 1½" NPT 1.5 (40) .41 (1.55) 106 (401) .25 (6) 125 (8.6) S15 SS 21 21/32 (550) 16 21/32 (423) 12 23/64 (314) 1 31/32 (50) 20 3/8 (518) 1½" NPT 1.5 (40) .41 (1.55) 106 (401) .25 (6) 125 (8.6) S20 AL / CI 26 5/16 (669) 16 7/8 (428) 12 19/32 (320) 1 7/8 (48) 24 5/8 (625) 2" NPT 2 (50) .42 (1.59) 150 (567) .25 (6) 125 (8.6) S20 SS 26 5/16 (669) 16 7/8 (428) 12 19/32 (320) 2 (51) 24 3/4 (629) 2" NPT 2 (50) .42 (1.59) 150 (567) .25 (6) 125 (8.6) S30 Al/CI 32 1/16 (814) 19 21/32 (499) 15 3/4 (400) 2 11/32 (60) 29 31/32 (761) 3" NPT 3 (80) .94 (3.56) 238 (901) .38 (9.5) 125 (8.6) S30 SS 32 9/32 (820) 19 21/32 (499) 15 3/4 (400) 2 9/32 (65) 30 3/16 (767) 3" NPT 3 (80) .94 (3.56) 238 (901) .38 (9.5) 125 (8.6) All Dimensions + / - 1/8 (3)
