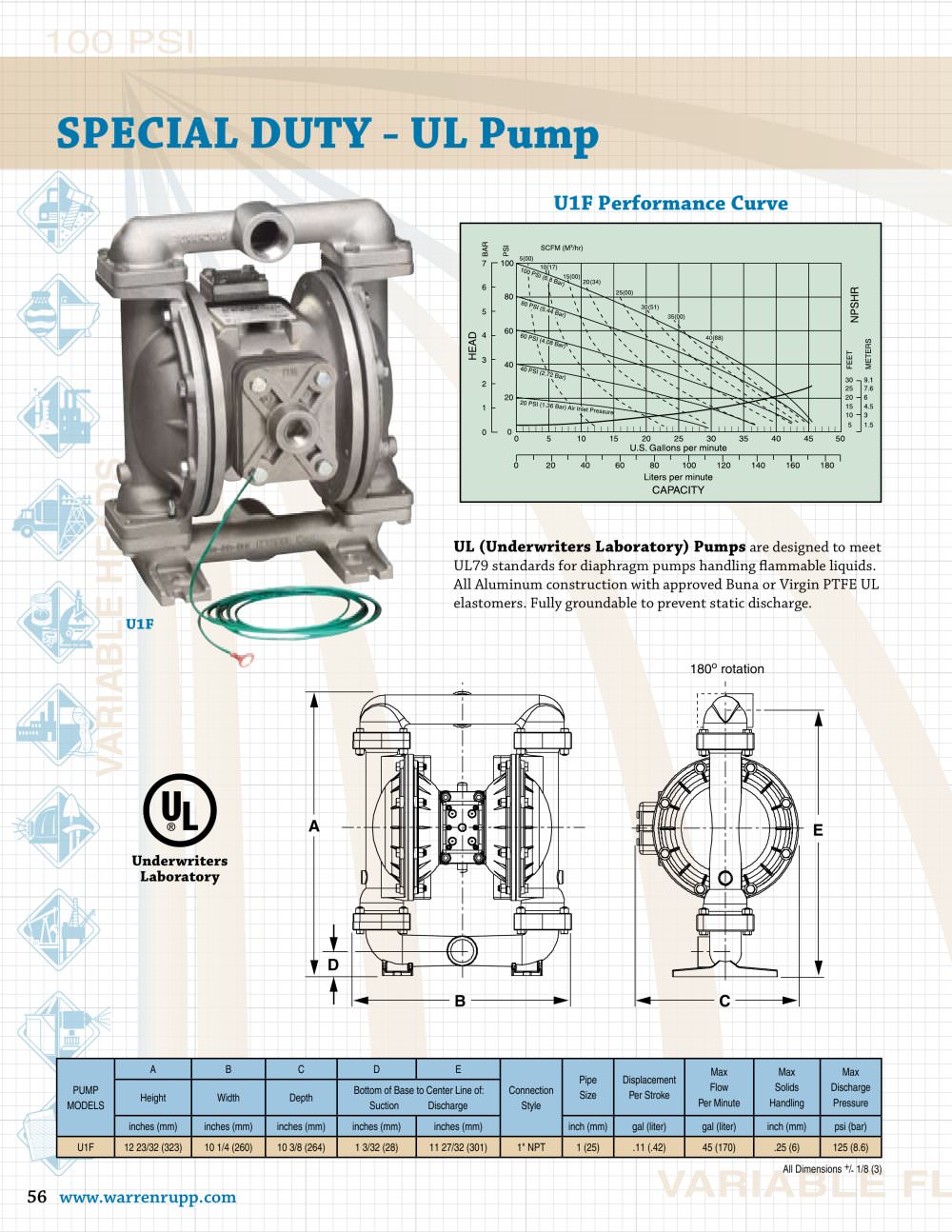

SPECIAL DUTY - UL Pump U1F Performance Curve

UL (Underwriters Laboratory) Pumps

are designed to meet UL79 standards for diaphragm pumps handling flammable liquids. All Aluminum construction with approved Buna or Virgin PTFE UL elastomers. Fully groundable to prevent static discharge. U1F

180

o

rotation

A E

Underwriters Laboratory

D B C

A B C D E Pipe Displacement Max Max Max PUMP Height Width Depth Bottom of Base to Center Line of: Connection Size Per Stroke Flow Solids Discharge MODELS Suction Discharge Style Per Minute Handling Pressure inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inch (mm) gal (liter) gal (liter) inch (mm) psi (bar) U1F 12 23/32 (323) 10 1/4 (260) 10 3/8 (264) 1 3/32 (28) 11 27/32 (301) 1" NPT 1 (25) .11 (.42) 45 (170) .25 (6) 125 (8.6) All Dimensions + / - 1/8 (3)
