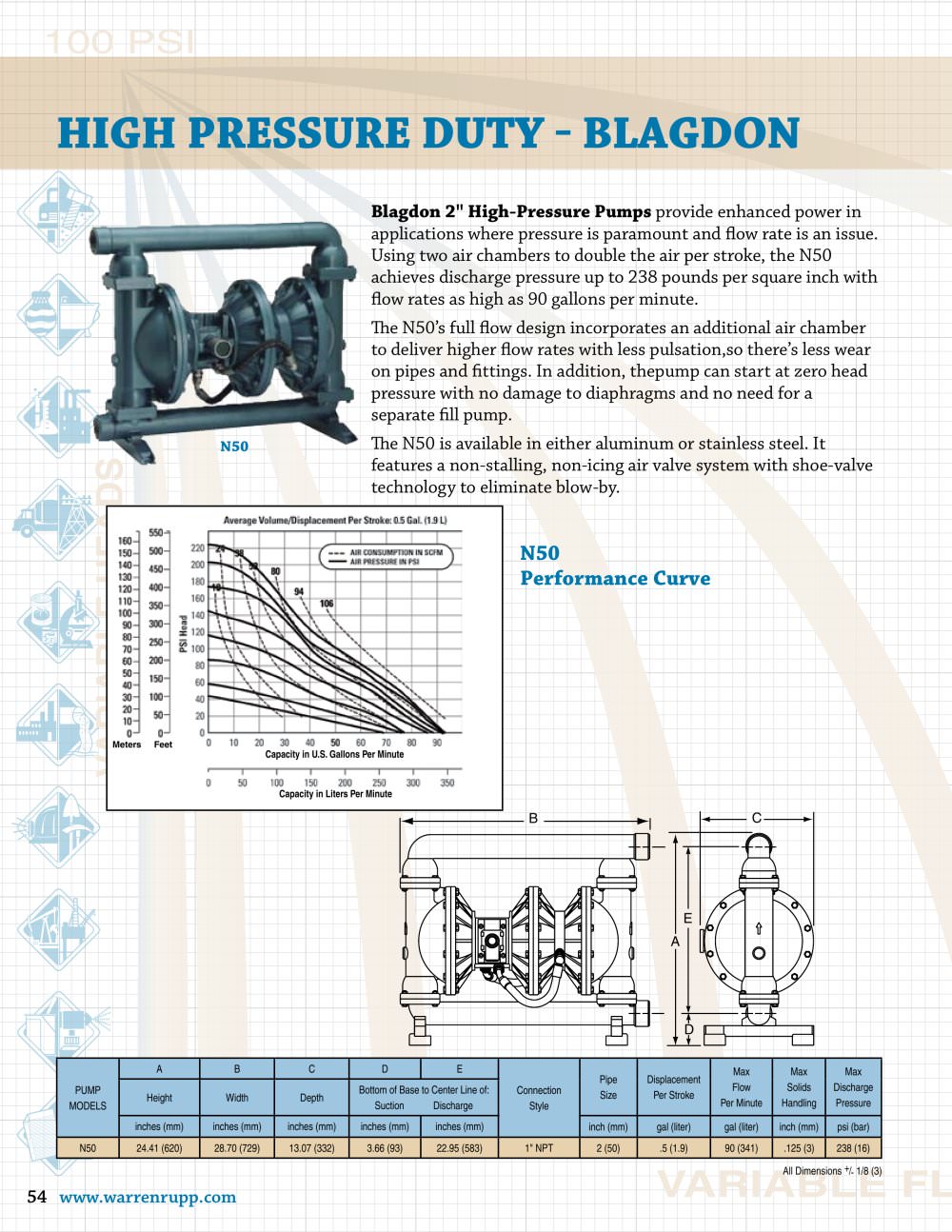

54 www.warrenrupp.com High Pressure Duty - Blagdon Blagdon 2" High-Pressure Pumps provide enhanced power in applications where pressure is paramount and flow rate is an issue. Using two air chambers to double the air per stroke, the N50 achieves discharge pressure up to 238 pounds per square inch with flow rates as high as 90 gallons per minute. The N50’s full flow design incorporates an additional air chamber to deliver higher flow rates with less pulsation,so there’s less wear on pipes and fittings. In addition, thepump can start at zero head pressure with no damage to diaphragms and no need for a separate fill pump. The N50 is available in either aluminum or stainless steel. It features a non-stalling, non-icing air valve system with shoe-valve technology to eliminate blow-by. A E D B C N50 Performance Curve Meters Feet Capacity in Liters Per Minute Capacity in U.S. Gallons Per Minute PUMP MODELS A B C D E Connection Style Pipe Size Displacement Per Stroke Max Flow Per Minute Max Solids Handling Max Discharge Height Width Depth Pressure Bottom of Base to Center Line of: Suction Discharge inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inch (mm) gal (liter) gal (liter) inch (mm) psi (bar) N50 24.41 (620) 28.70 (729) 13.07 (332) 3.66 (93) 22.95 (583) 1" NPT 2 (50) .5 (1.9) 90 (341) .125 (3) 238 (16) All Dimensions +/- 1/8 (3) N50
