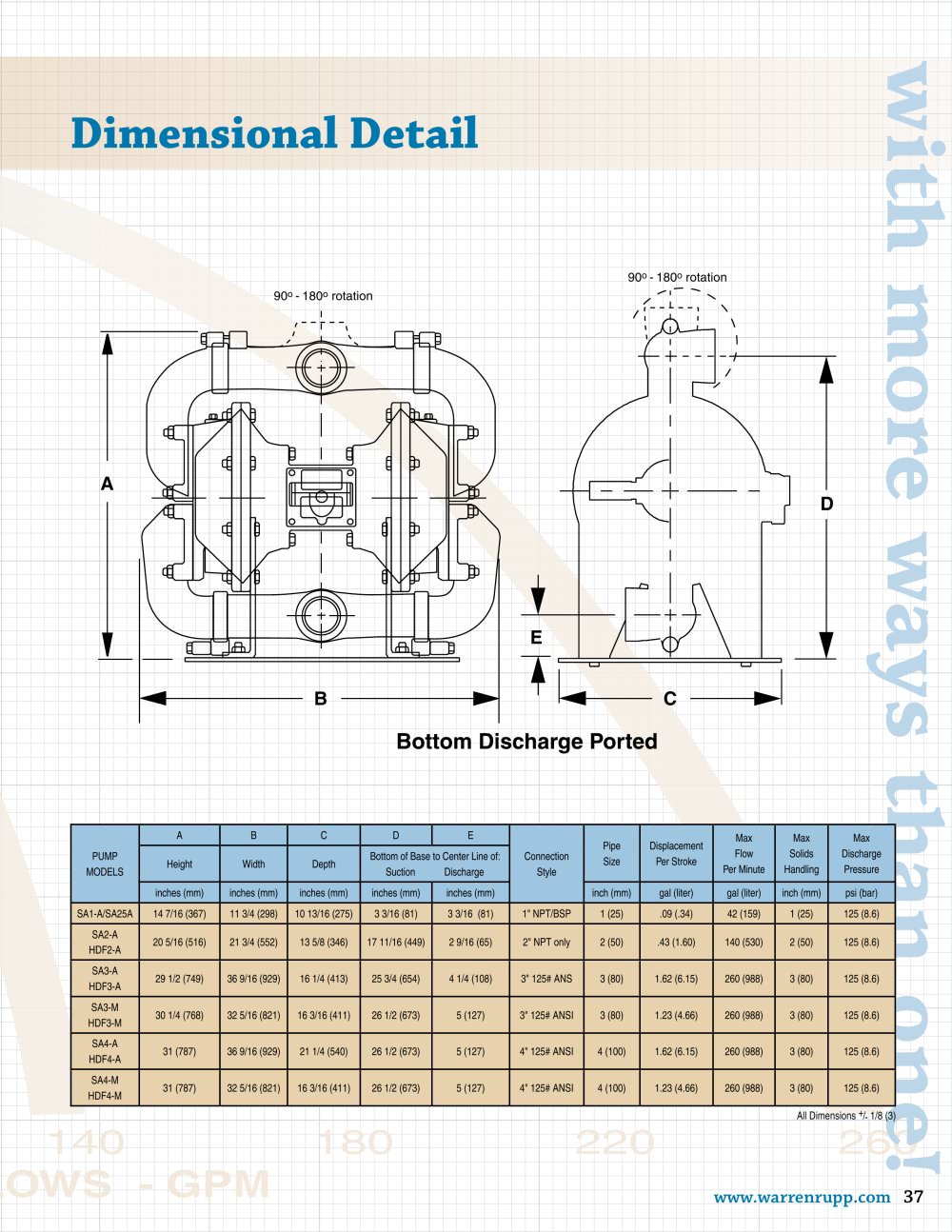

Dimensional Detail

9

o

- 1 8

o

r o t a t i o n 9

o

- 1 8

o

r o t a t i o n

A D E B C

A B C D E Pipe Displacement Max Max Max PUMP Height Width Depth Bottom of Base to Center Line of: Connection Size Per Stroke Flow Solids Discharge MODELS Suction Discharge Style Per Minute Handling Pressure inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inch (mm) gal (liter) gal (liter) inch (mm) psi (bar) SA1-A/SA25A 14 7/16 (367) 11 3/4 (298) 10 13/16 (275) 3 3/16 (81) 3 3/16 (81) 1" NPT/BSP 1 (25) .09 (.34) 42 (159) 1 (25) 125 (8.6) SA2-A HDF2-A 20 5/16 (516) 21 3/4 (552) 13 5/8 (346) 17 11/16 (449) 2 9/16 (65) 2" NPT only 2 (50) .43 (1.60) 140 (530) 2 (50) 125 (8.6) SA3-A HDF3-A 29 1/2 (749) 36 9/16 (929) 16 1/4 (413) 25 3/4 (654) 4 1/4 (108) 3" 125# ANS 3 (80) 1.62 (6.15) 260 (988) 3 (80) 125 (8.6) SA3-M HDF3-M 30 1/4 (768) 32 5/16 (821) 16 3/16 (411) 26 1/2 (673) 5 (127) 3" 125# ANSI 3 (80) 1.23 (4.66) 260 (988) 3 (80) 125 (8.6) SA4-A HDF4-A 31 (787) 36 9/16 (929) 21 1/4 (540) 26 1/2 (673) 5 (127) 4" 125# ANSI 4 (100) 1.62 (6.15) 260 (988) 3 (80) 125 (8.6) SA4-M HDF4-M 31 (787) 32 5/16 (821) 16 3/16 (411) 26 1/2 (673) 5 (127) 4" 125# ANSI 4 (100) 1.23 (4.66) 260 (988) 3 (80) 125 (8.6) All Dimensions + / - 1/8 (3)
