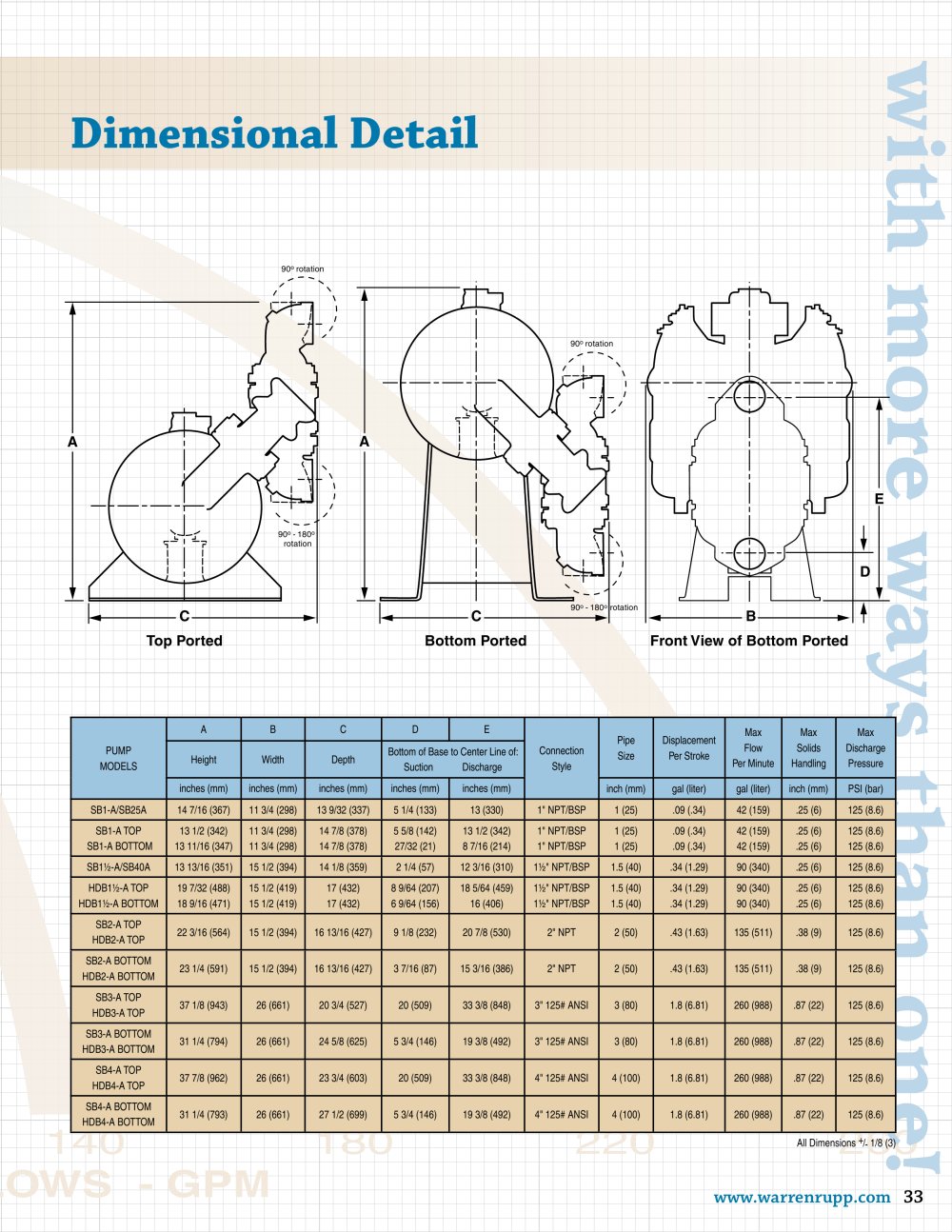

Dimensional Detail

90 o rotation 90 o rotation

A A E

90 o - 180 o rotation

D

o o

C C

90 - 180 rotation

B Top Ported Bottom Ported Front View of Bottom Ported

A B C D E Pipe Displacement Max Max Max PUMP Bottom of Base to Center Line of: Connection Height Width Depth Size Per Stroke Flow Solids Discharge MODELS Suction Discharge Style Per Minute Handling Pressure inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inch (mm) gal (liter) gal (liter) inch (mm) PSI (bar) SB1-A/SB25A 14 7/16 (367) 11 3/4 (298) 13 9/32 (337) 5 1/4 (133) 13 (330) 1" NPT/BSP 1 (25) .09 (.34) 42 (159) .25 (6) 125 (8.6) SB1-A TOP 13 1/2 (342) 11 3/4 (298) 14 7/8 (378) 5 5/8 (142) 13 1/2 (342) 1" NPT/BSP 1 (25) .09 (.34) 42 (159) .25 (6) 125 (8.6) SB1-A BOTTOM 13 11/16 (347) 11 3/4 (298) 14 7/8 (378) 27/32 (21) 8 7/16 (214) 1" NPT/BSP 1 (25) .09 (.34) 42 (159) .25 (6) 125 (8.6) SB1½-A/SB40A 13 13/16 (351) 15 1/2 (394) 14 1/8 (359) 2 1/4 (57) 12 3/16 (310) 1½" NPT/BSP 1.5 (40) .34 (1.29) 90 (340) .25 (6) 125 (8.6) HDB1½-A TOP 19 7/32 (488) 15 1/2 (419) 17 (432) 8 9/64 (207) 18 5/64 (459) 1½" NPT/BSP 1.5 (40) .34 (1.29) 90 (340) .25 (6) 125 (8.6) HDB1½-A BOTTOM 18 9/16 (471) 15 1/2 (419) 17 (432) 6 9/64 (156) 16 (406) 1½" NPT/BSP 1.5 (40) .34 (1.29) 90 (340) .25 (6) 125 (8.6) SB2-A TOP HDB2-A TOP 22 3/16 (564) 15 1/2 (394) 16 13/16 (427) 9 1/8 (232) 20 7/8 (530) 2" NPT 2 (50) .43 (1.63) 135 (511) .38 (9) 125 (8.6) SB2-A BOTTOM HDB2-A BOTTOM 23 1/4 (591) 15 1/2 (394) 16 13/16 (427) 3 7/16 (87) 15 3/16 (386) 2" NPT 2 (50) .43 (1.63) 135 (511) .38 (9) 125 (8.6) SB3-A TOP HDB3-A TOP 37 1/8 (943) 26 (661) 20 3/4 (527) 20 (509) 33 3/8 (848) 3" 125# ANSI 3 (80) 1.8 (6.81) 260 (988) .87 (22) 125 (8.6) SB3-A BOTTOM HDB3-A BOTTOM 31 1/4 (794) 26 (661) 24 5/8 (625) 5 3/4 (146) 19 3/8 (492) 3" 125# ANSI 3 (80) 1.8 (6.81) 260 (988) .87 (22) 125 (8.6) SB4-A TOP HDB4-A TOP 37 7/8 (962) 26 (661) 23 3/4 (603) 20 (509) 33 3/8 (848) 4" 125# ANSI 4 (100) 1.8 (6.81) 260 (988) .87 (22) 125 (8.6) SB4-A BOTTOM HDB4-A BOTTOM 31 1/4 (793) 26 (661) 27 1/2 (699) 5 3/4 (146) 19 3/8 (492) 4" 125# ANSI 4 (100) 1.8 (6.81) 260 (988) .87 (22) 125 (8.6) All Dimensions + / - 1/8 (3)

www.warrenrupp.com 33
