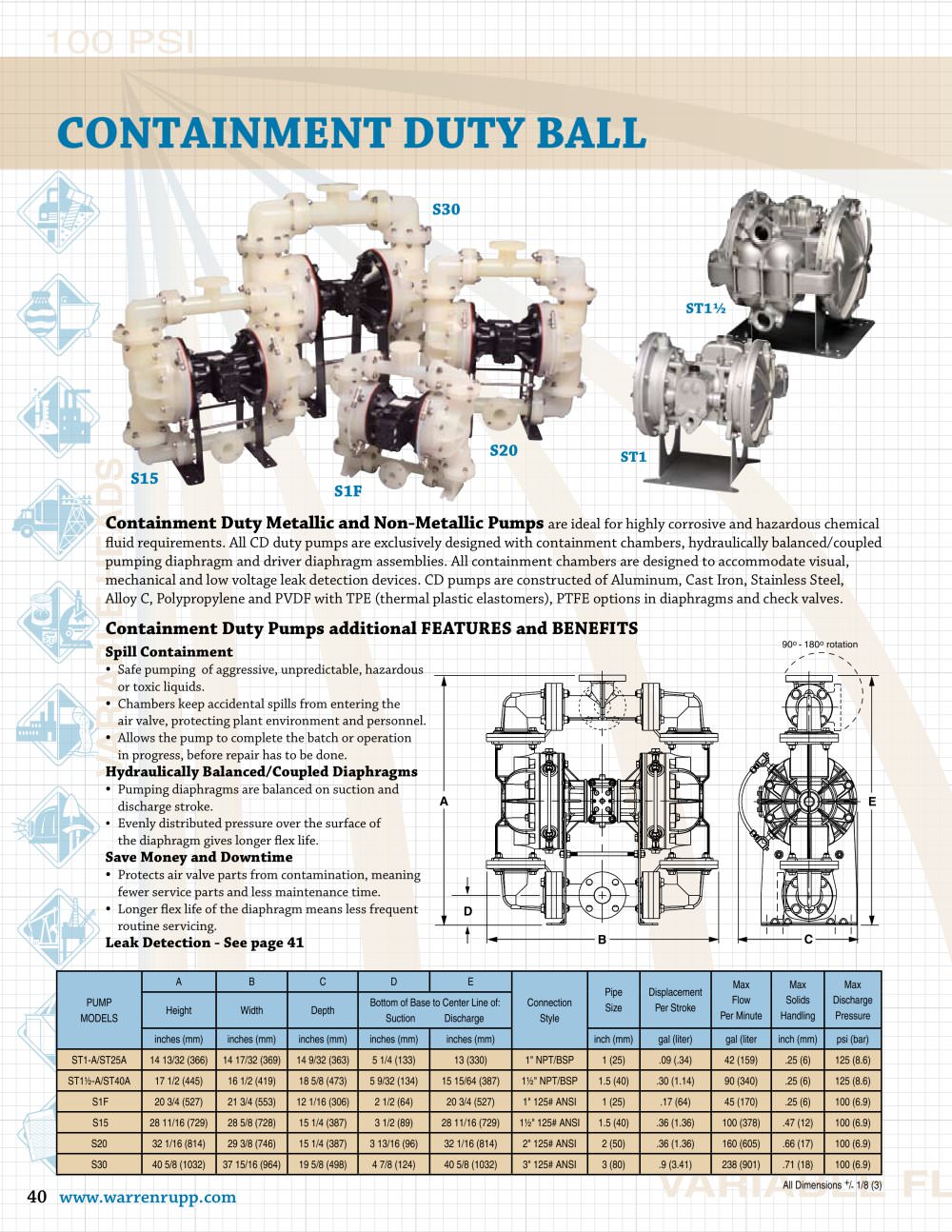

CONTAINMENT DUTY BALL ST1½ST1 S20S1F
S30
S15 Containment Duty Metallic and Non-Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All CD duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping diaphragm and driver diaphragm assemblies. All containment chambers are designed to accommodate visual, mechanical and low voltage leak detection devices. CD pumps are constructed of Aluminum, Cast Iron, Stainless Steel, Alloy C, Polypropylene and PVDF with TPE (thermal plastic elastomers), PTFE options in diaphragms and check valves manufacturer. Containment Duty Pumps additional FEATURES and BENEFITS Spill Containment 9 o - 1 9 8 o o - 1 r o 8 t a o t i o r o n t a t i o n • Safe pumping of aggressive, unpredictable, hazardous or toxic liquids. • Chambers keep accidental spills from entering the air valve, protecting plant environment and personnel. • Allows the pump to complete the batch or operation in progress, before repair has to be done. Hydraulically Balanced/Coupled Diaphragms • Pumping diaphragms are balanced on suction and discharge stroke. A A E E • Evenly distributed pressure over the surface of the diaphragm gives longer flex life. Save Money and Downtime • Protects air valve parts from contamination, meaning fewer service parts and less maintenance time. • Longer flex life of the diaphragm means less frequent routine servicing. D D Leak Detection - See page 41 B B C C A B C D E Pipe Displacement Max Max Max PUMP Height Width Depth Bottom of Base to Center Line of: Connection Size Per Stroke Flow Solids Discharge MODELS Suction Discharge Style Per Minute Handling Pressure inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inch (mm) gal (liter) gal (liter inch (mm) psi (bar) ST1-A/ST25A 14 13/32 (366) 14 17/32 (369) 14 9/32 (363) 5 1/4 (133) 13 (330) 1" NPT/BSP 1 (25) .09 (.34) 42 (159) .25 (6) 125 (8.6) ST1½-A/ST40A 17 1/2 (445) 16 1/2 (419) 18 5/8 (473) 5 9/32 (134) 15 15/64 (387) 1½" NPT/BSP 1.5 (40) .30 (1.14) 90 (340) .25 (6) 125 (8.6) S1F 20 3/4 (527) 21 3/4 (553) 12 1/16 (306) 2 1/2 (64) 20 3/4 (527) 1" 125# ANSI 1 (25) .17 (64) 45 (170) .25 (6) 100 (6.9) S15 28 11/16 (729) 28 5/8 (728) 15 1/4 (387) 3 1/2 (89) 28 11/16 (729) 1½" 125# ANSI 1.5 (40) .36 (1.36) 100 (378) .47 (12) 100 (6.9) S20 32 1/16 (814) 29 3/8 (746) 15 1/4 (387) 3 13/16 (96) 32 1/16 (814) 2" 125# ANSI 2 (50) .36 (1.36) 160 (605) .66 (17) 100 (6.9) S30 40 5/8 (1032) 37 15/16 (964) 19 5/8 (498) 4 7/8 (124) 40 5/8 (1032) 3" 125# ANSI 3 (80) .9 (3.41) 238 (901) .71 (18) 100 (6.9) + 40 www.warrenrupp.com All Dimensions / - 1/8 (3)
|
