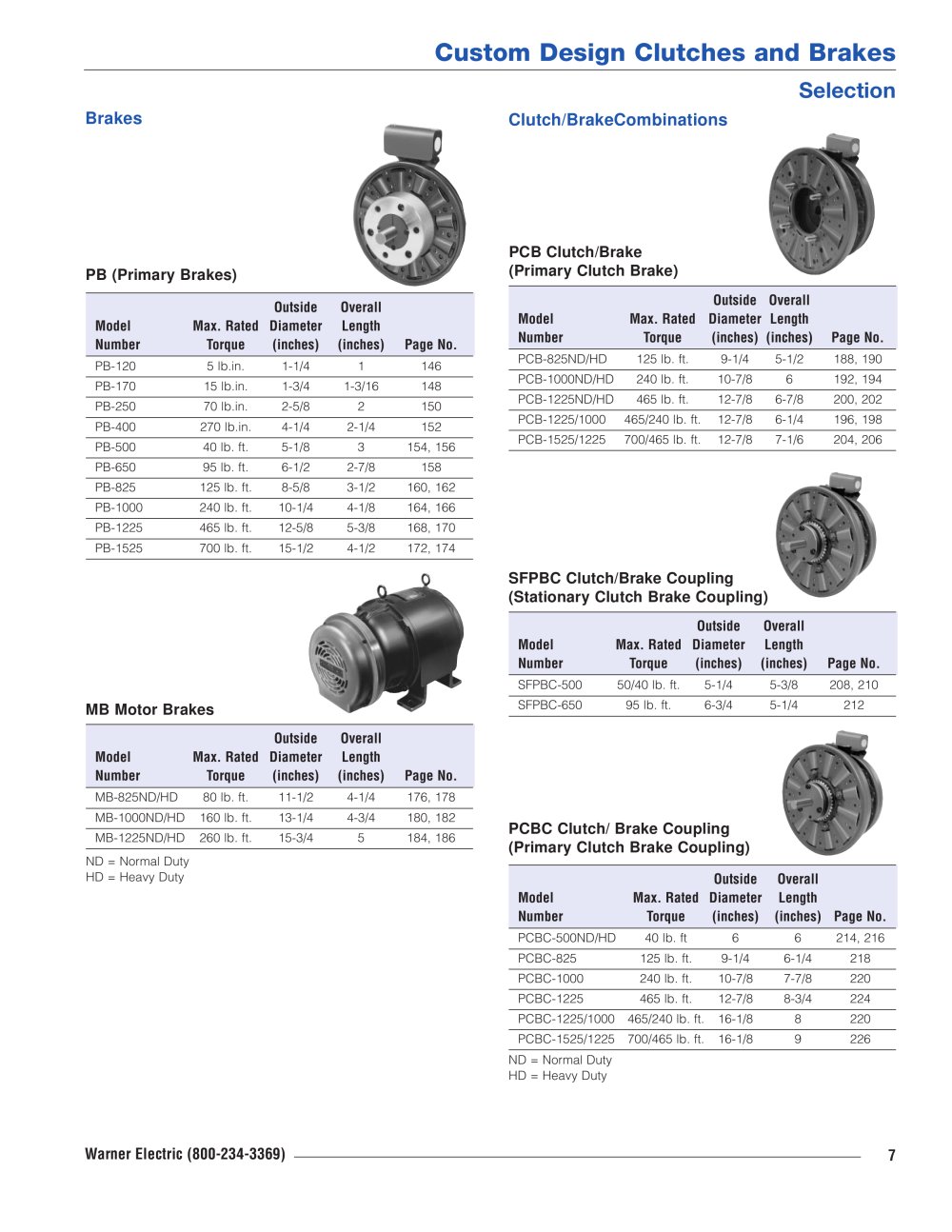

Custom Design Industrial clutches and Brakes

Selection

BrakesClutch/BrakeCombinations

PCB Clutch/Brake(Primary Industrial clutch brake) PB (Primary Brakes)

OutsideOverallModelMax. RatedDiameterLength OutsideOverallModelMax. RatedDiameterLength NumberTorque(inches)(inches)Page No. NumberTorque(inches)(inches)Page No.

PB-1205 lb.in.1-1/41146 PCB-825ND/HD125 lb. ft.9-1/45-1/2188, 190 PB-17015 lb.in.1-3/41-3/16148 PCB-1000ND/HD240 lb. ft.10-7/86192, 194 PB-25070 lb.in.2-5/82150 PCB-1225ND/HD465 lb. ft.12-7/86-7/8200, 202 PB-400270 lb.in.4-1/42-1/4152 PCB-1225/1000465/240 lb. ft.12-7/86-1/4196, 198 PB-50040 lb. ft.5-1/83154, 156 PCB-1525/1225700/465 lb. ft.12-7/87-1/6204, 206 PB-65095 lb. ft.6-1/22-7/8158 PB-825125 lb. ft.8-5/83-1/2160, 162 PB-1000240 lb. ft.10-1/44-1/8164, 166 PB-1225465 lb. ft.12-5/85-3/8168, 170 PB-1525700 lb. ft.15-1/24-1/2172, 174

SFPBC Clutch/Brake Coupling (Stationary Clutch Brake Coupling)

OutsideOverallModelMax. RatedDiameterLength NumberTorque(inches)(inches)Page No.

SFPBC-50050/40 lb. ft.5-1/45-3/8208, 210

MB Motor Brakes

SFPBC-65095 lb. ft.6-3/45-1/4212

OutsideOverallModelMax. RatedDiameterLength NumberTorque(inches)(inches)Page No.

MB-825ND/HD80 lb. ft.11-1/24-1/4176, 178 MB-1000ND/HD160 lb. ft.13-1/44-3/4180, 182 MB-1225ND/HD260 lb. ft.15-3/45184, 186

PCBC Clutch/ Brake Coupling(Primary Clutch Brake Coupling)

ND = Normal DutyHD = Heavy Duty ND = Normal DutyHD = Heavy Duty

OutsideOverallModelMax. RatedDiameterLength NumberTorque(inches)(inches)Page No.

PCBC-500ND/HD40 lb. ft66214, 216 PCBC-825125 lb. ft.9-1/46-1/4218 PCBC-1000240 lb. ft.10-7/87-7/8220 PCBC-1225465 lb. ft.12-7/88-3/4224 PCBC-1225/1000465/240 lb. ft.16-1/88220 PCBC-1525/1225700/465 lb. ft.16-1/89226

Warner Electric (800-234-3369) 7
