SF seriesClutch

SF-170 Industrial bearing Mounted

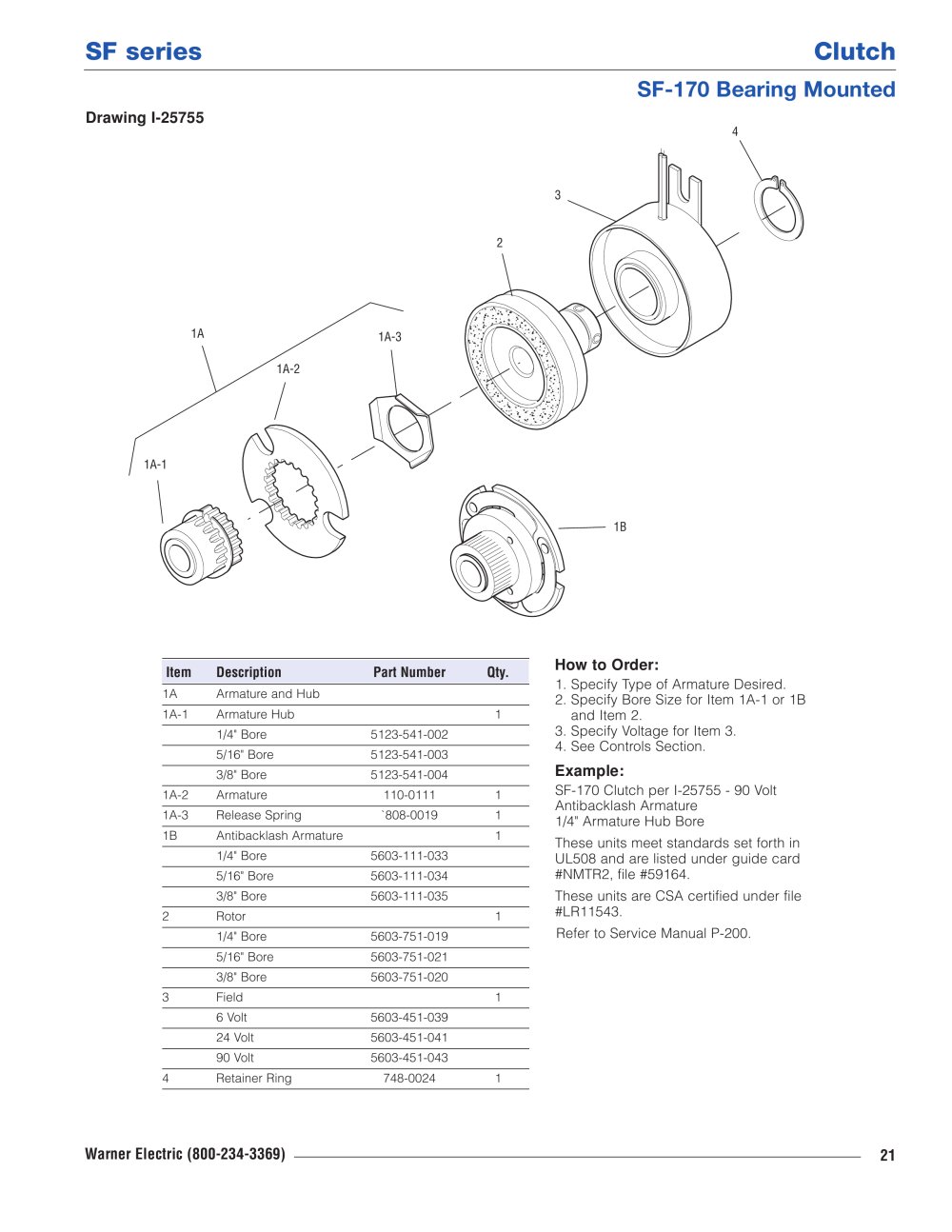

Drawing I-25755

1A 1A-11A-21A-3234 1B

ItemDescriptionPart NumberQty.

How to Order:

1AArmature and Hub

1. Specify Type of Armature Desired.2. Specify Bore Size for Item 1A-1 or 1Band Item 2.3. Specify Voltage for Item 3. 4. See Controls Section.

1A-1Armature Hub1 1/4" Bore5123-541-002 5/16" Bore5123-541-003 3/8" Bore5123-541-004

Example:

1A-2Armature110-01111

SF-170 Industrial clutch per I-25755 - 90 Volt Antibacklash Armature1/4" Armature Hub BoreThese units meet standards set forth inUL508 and are listed under guide card#NMTR2, file #59164.These units are CSA certified under file#LR11543.Refer to Service Manual P-200.

1A-3Release Spring `808-00191 1BAntibacklash Armature1 1/4" Bore5603-111-033 5/16" Bore5603-111-034 3/8" Bore5603-111-035 2Rotor1 1/4" Bore5603-751-019 5/16" Bore5603-751-021 3/8" Bore5603-751-020 3Field1 6 Volt5603-451-039 24 Volt5603-451-041 90 Volt5603-451-043 4Retainer Ring748-00241

Warner Electric (800-234-3369) 21
