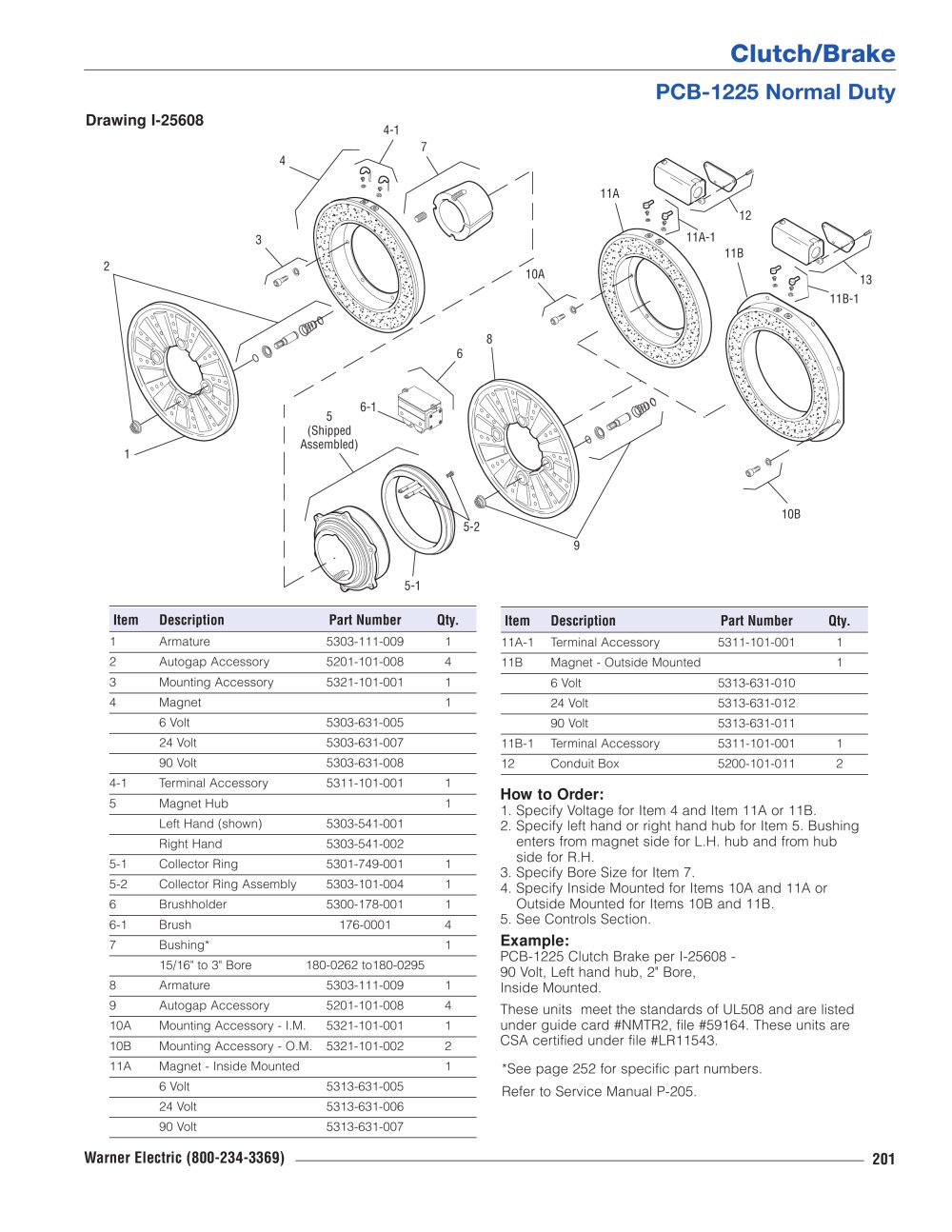

	Item	Description		Part Number	Qty.
	1	Armature		5303-111-009
	2	Autogap Accessory		5201-101-008
	3	Mounting Accessory		5321-101-001
	4	Magnet
		6 Volt		5303-631-005
		24 Volt		5303-631-007
		90 Volt		5303-631-008
	4-1	Terminal Accessory		5311-101-001
	5	Magnet Hub
		Left Hand (shown)		5303-541-001
		Right Hand		5303-541-002
	5-1	Collector Ring		5301-749-001
	5-2	Collector Ring Assembly		5303-101-004
	6	Brushholder		5300-178-001
	6-1	Brush		176-0001
	7	Bushing*
		15/16" to 3" Bore	180-0262 to180-0295
	8	Armature		5303-111-009
	9	Autogap Accessory		5201-101-008
	10A	Mounting Accessory -	I.M.	5321-101-001
	10B	Mounting Accessory -	O.M.	5321-101-002
	11A	Magnet - Inside Mounted
		6 Volt		5313-631-005
		24 Volt		5313-631-006


	Item	Description	Part Number	Qty.
	11A-1	Terminal Accessory	5311-101-001	1
	11B	Magnet - Outside Mounted		1
		6 Volt	5313-631-010
		24 Volt	5313-631-012
		90 Volt	5313-631-011
	11B-1	Terminal Accessory	5311-101-001	1
	12	Conduit Box	5200-101-011	2

How to Order:

1. Specify Voltage for Item 4 and Item 11A or 11B.

2. Specify left hand or right hand hub for Item 5. Bushing enters from magnet side for L.H. hub and from hub side for R.H.

3. Specify Bore Size for Item 7.

4. Specify Inside Mounted for Items 10A and 11A or Outside Mounted for Items 10B and 11B.

5. See Controls Section.

Example:

PCB-1225 Industrial clutch brake per I-25608 -90 Volt, Left hand hub, 2" Bore, Inside Mounted.

These units meet the standards of UL508 and are listed under guide card #NMTR2, file #59164. These units are CSA certified under file #LR11543.

*See page 252 for specific part numbers. Refer to Service Manual P-205.

90 Volt 5313-631-007
