SF seriesClutch

SF-170 Flange Mounted

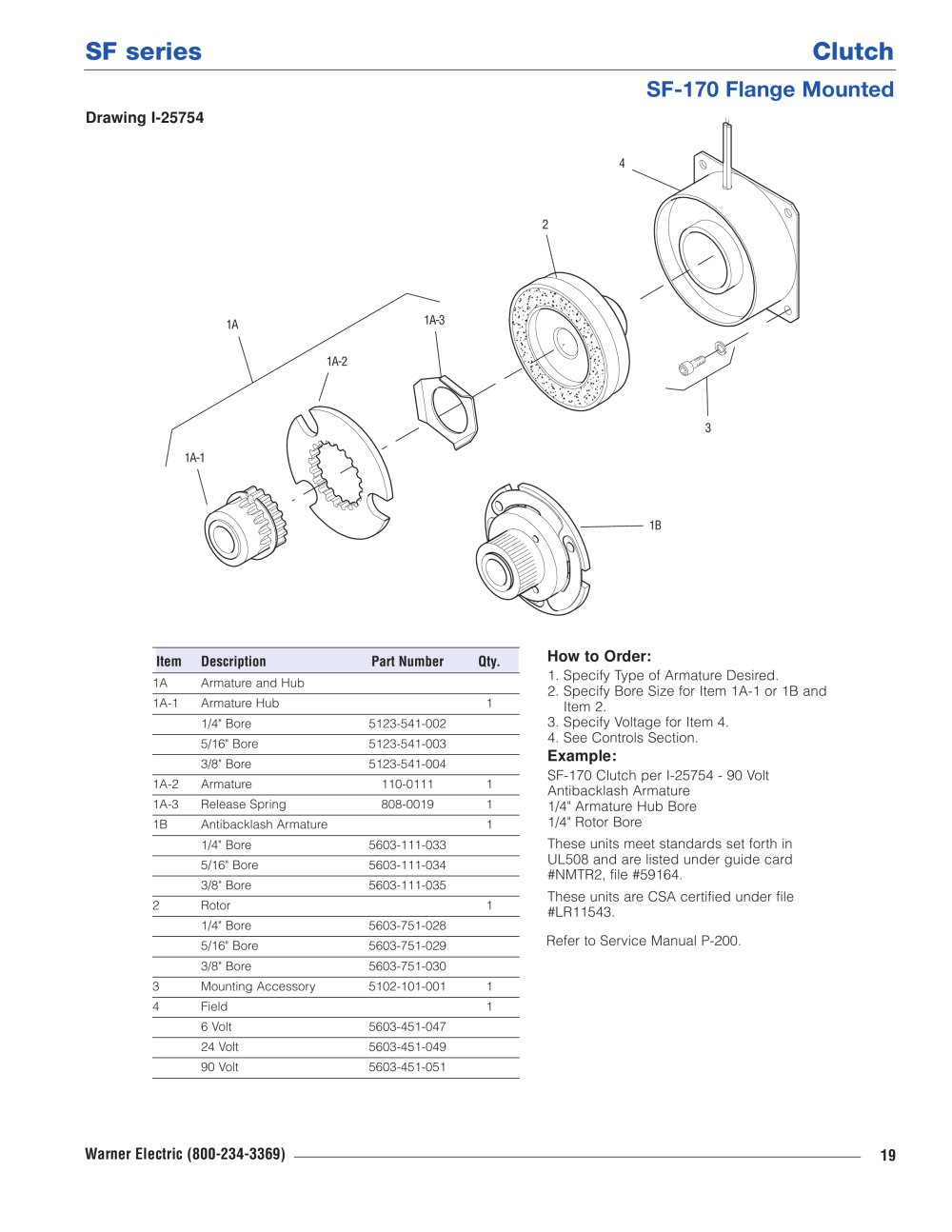

Drawing I-25754

1A 1A-11A-21A-324 31B

ItemDescriptionPart NumberQty.

How to Order:

1AArmature and Hub

1. Specify Type of Armature Desired.2. Specify Bore Size for Item 1A-1 or 1B andItem 2.3. Specify Voltage for Item 4. 4. See Controls Section.

1A-1Armature Hub1 1/4" Bore5123-541-002 5/16" Bore5123-541-003 3/8" Bore5123-541-004

Example:

1A-2Armature110-01111

SF-170 Industrial clutch per I-25754 - 90 Volt Antibacklash Armature1/4" Armature Hub Bore 1/4" Rotor BoreThese units meet standards set forth inUL508 and are listed under guide card#NMTR2, file #59164.These units are CSA certified under file#LR11543.Refer to Service Manual P-200.

1A-3Release Spring 808-00191 1BAntibacklash Armature1 1/4" Bore5603-111-033 5/16" Bore5603-111-034 3/8" Bore5603-111-035 2Rotor1 1/4" Bore5603-751-028 5/16" Bore5603-751-029 3/8" Bore5603-751-030 3Mounting Accessory5102-101-0011 4Field1 6 Volt5603-451-047 24 Volt5603-451-049 90 Volt5603-451-051

Warner Electric (800-234-3369) 19
