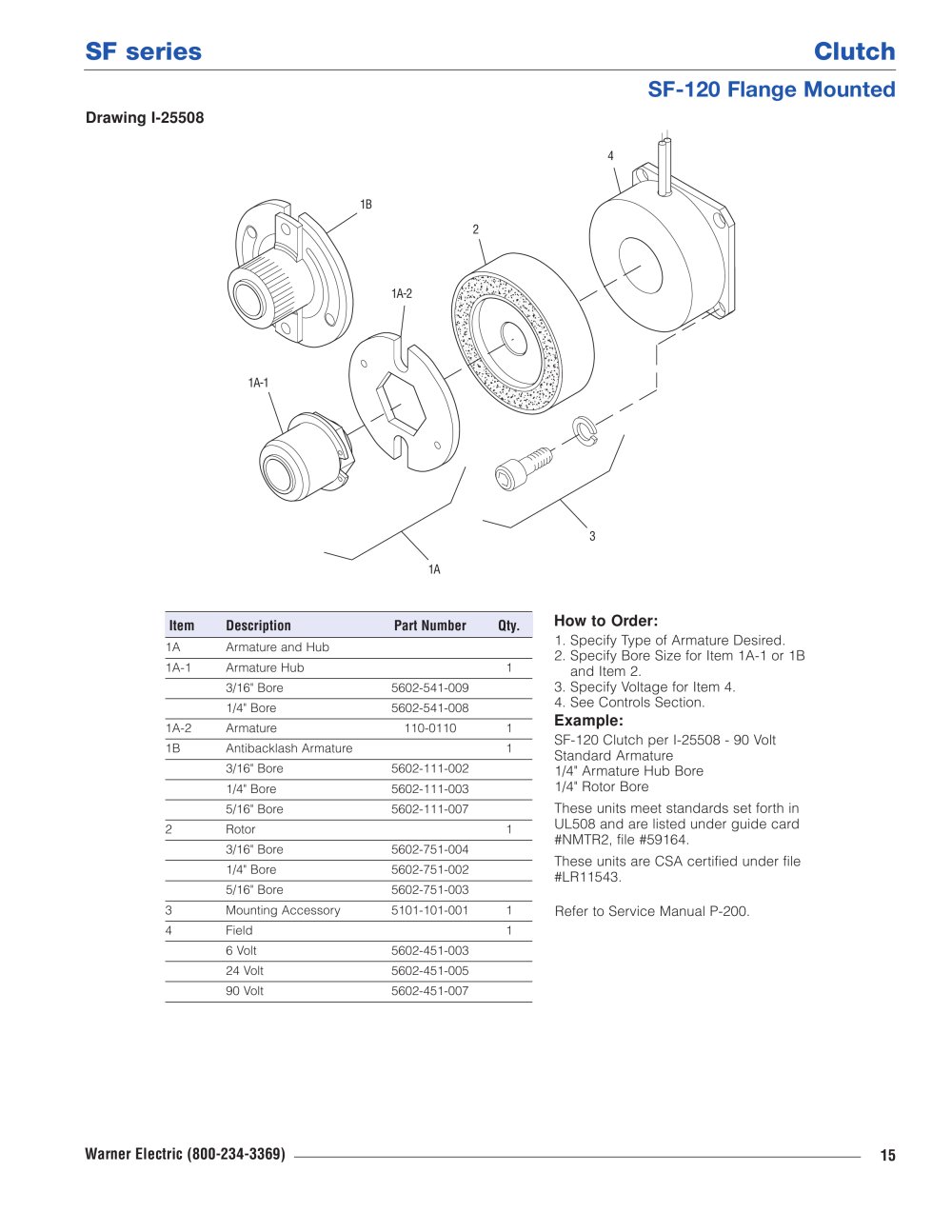

SF seriesClutch

SF-120 Flange Mounted

Drawing I-25508

1B 1A-11A-2 1A 24 3

ItemDescriptionPart NumberQty.

How to Order:

1AArmature and Hub

1. Specify Type of Armature Desired.2. Specify Bore Size for Item 1A-1 or 1Band Item 2.3. Specify Voltage for Item 4. 4. See Controls Section.

1A-1Armature Hub1 3/16" Bore5602-541-009 1/4" Bore5602-541-008 1A-2Armature110-01101

Example:

1BAntibacklash Armature1

SF-120 Industrial clutch per I-25508 - 90 Volt Standard Armature1/4" Armature Hub Bore 1/4" Rotor BoreThese units meet standards set forth inUL508 and are listed under guide card#NMTR2, file #59164.These units are CSA certified under file#LR11543.Refer to Service Manual P-200.

3/16" Bore5602-111-002 1/4" Bore5602-111-003 5/16" Bore5602-111-007 2Rotor1 3/16" Bore5602-751-004 1/4" Bore5602-751-002 5/16" Bore5602-751-003 3Mounting Accessory5101-101-0011 4Field1 6 Volt5602-451-003 24 Volt5602-451-005 90 Volt5602-451-007

Warner Electric (800-234-3369) 15
