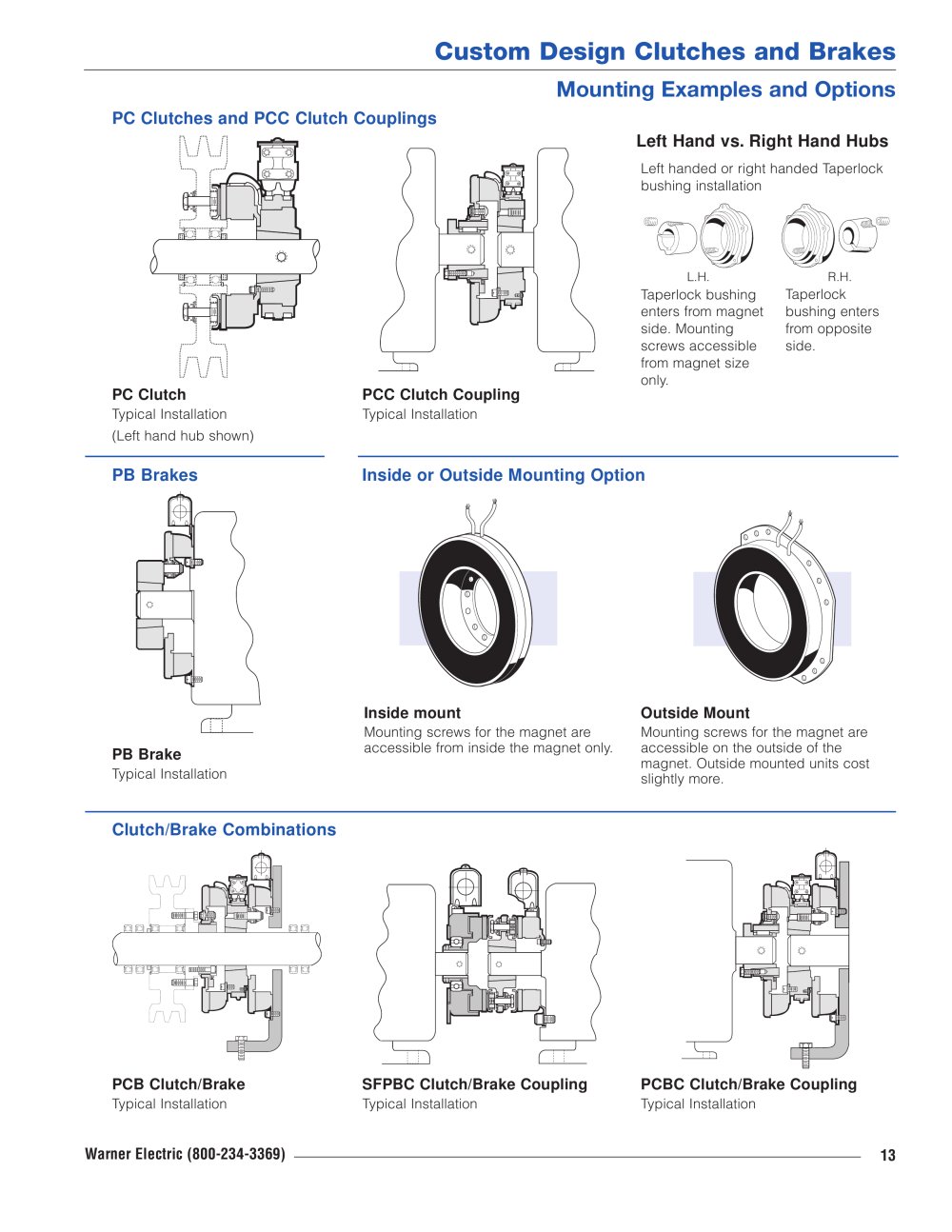

Mounting Examples and Options
PC Clutches and PCC Clutch Couplings Left Hand vs.Right Hand Hubs
Left handed or right handed Taperlock
bushing installation L.H.R.H. Taperlock bushingenters from industrial magnet
side. Mounting
screws accessible
from magnet size
only.Taperlockbushing enters
from opposite
side. PC Clutch PCC Clutch Coupling
Typical Installation(Left hand hub shown) Typical Installation PB Brakes
Clutch/Brake Combinations Inside or Outside Mounting Option
Inside mount Outside Mount
Mounting screws for the magnet areaccessible from inside the magnet only. Mounting screws for the magnet areaccessible on the outside of the
magnet. Outside mounted units cost
slightly more. PB Brake
Typical Installation PCB Clutch/Brake SFPBC Clutch/Brake Coupling PCBC Clutch/Brake Coupling
Typical Installation Typical Installation Typical Installation Warner Electric (800-234-3369) 13
